MKE Synchronous Servomotors
Pos Material number Designation Quantity View
0500 R911400167 DOK-MOTOR*-MKE0XX*****-ISRS-D0-P 1
0510 R911278283 LOCKING CONNECTOR 2X5 POL. 1
3010 R911211410 TERMINAL END KQ-M3_/0.25-01.5RD16& 2
3030 R911282226 CYLINDER HEAD SCREW ISO4762-
M5X14-8.8-MK
4
3040 R911286371 Connector housing 10pol. 87613-005 1
3050 R911260765 CONTACT KON-EF-0.32/0.52-NNN& 10
WARNING
Danger of explosion by using improper cable
glands.
− The Ex cable glands and cables must be
evaluated, selected and assembled by the
machine builder and always in combination
with the cables used in accordance with DIN
EN 60079-14 "Potentially explosive atmos-
pheres - Planning, selection and installation
of electrical systems".

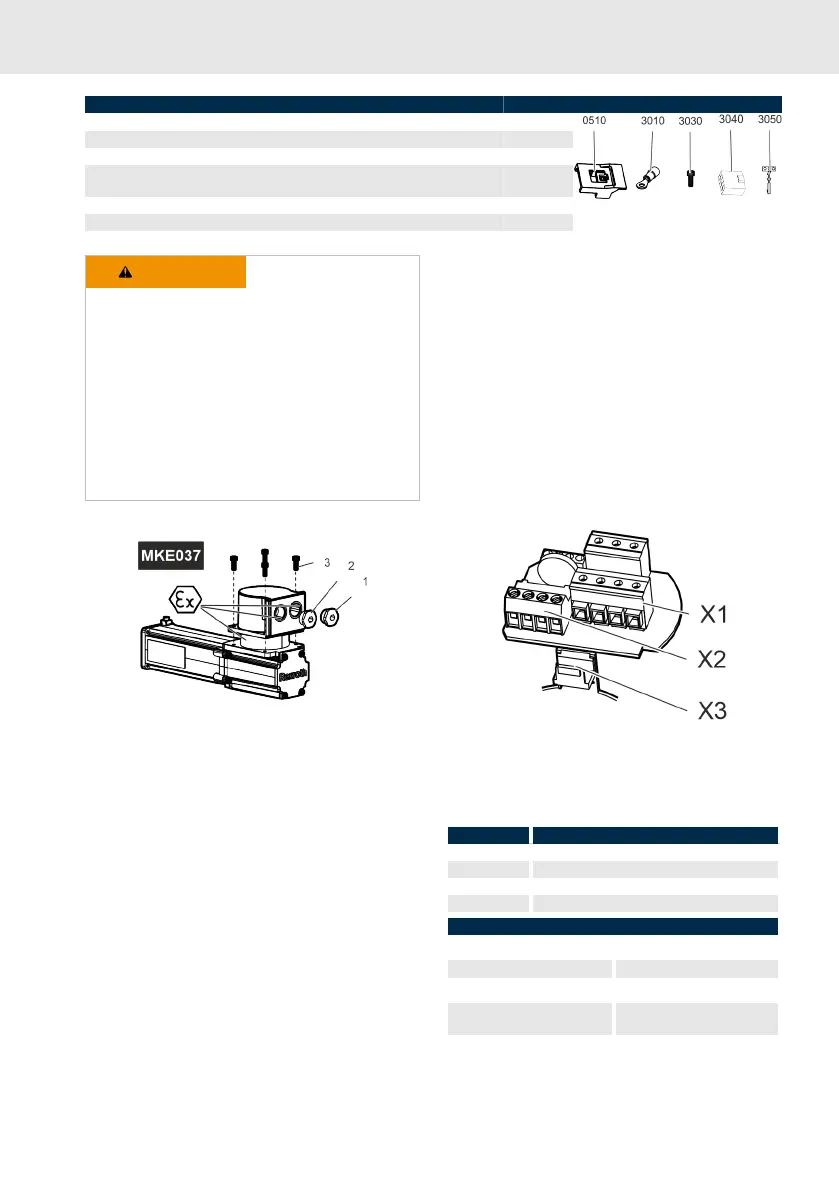

Fig. 9: Electrical connection MKE037 Housing
design E
1 Remove M20 screw-type blank cap and
replace it by Ex cable gland
2 Remove M20 screw-type blank cap and
replace it by Ex cable gland
3 Tightening torque 6.3 Nm (use enclosed
screws 3030)
Ex Ignition gap, assembly damage not permis-
sible
Notes for assembly
•
In the case of mounting procedures, flame-
proof gaps must be opened and jointed.
Avoid damages on the ignition gaps. Do not
remove existing mounting grease, leave it on
the O-rings as delivered. Work in a clean envi-
ronment.
•
In the case of mounting damages on the
flameproof joints, let the motor be repaired
with origin components by the Rexroth
service.
•
For mounting, use the delivered pre-coated
screws.
•
Use shielded connection cables.
• Use Ex cable glands.
Fig. 10: MKE037 EU Clamps
Assembly -X1
Pin Signal
1 U1
2 V1
3 W1
4 PE
Technical data -X1
Clamping range 0.5 … 4 mm
2
Wire stripping length 5 mm, use wire end ferrules
Clamping screws (size) M3
Tightening torque clamping
screws
0.5 Nm
