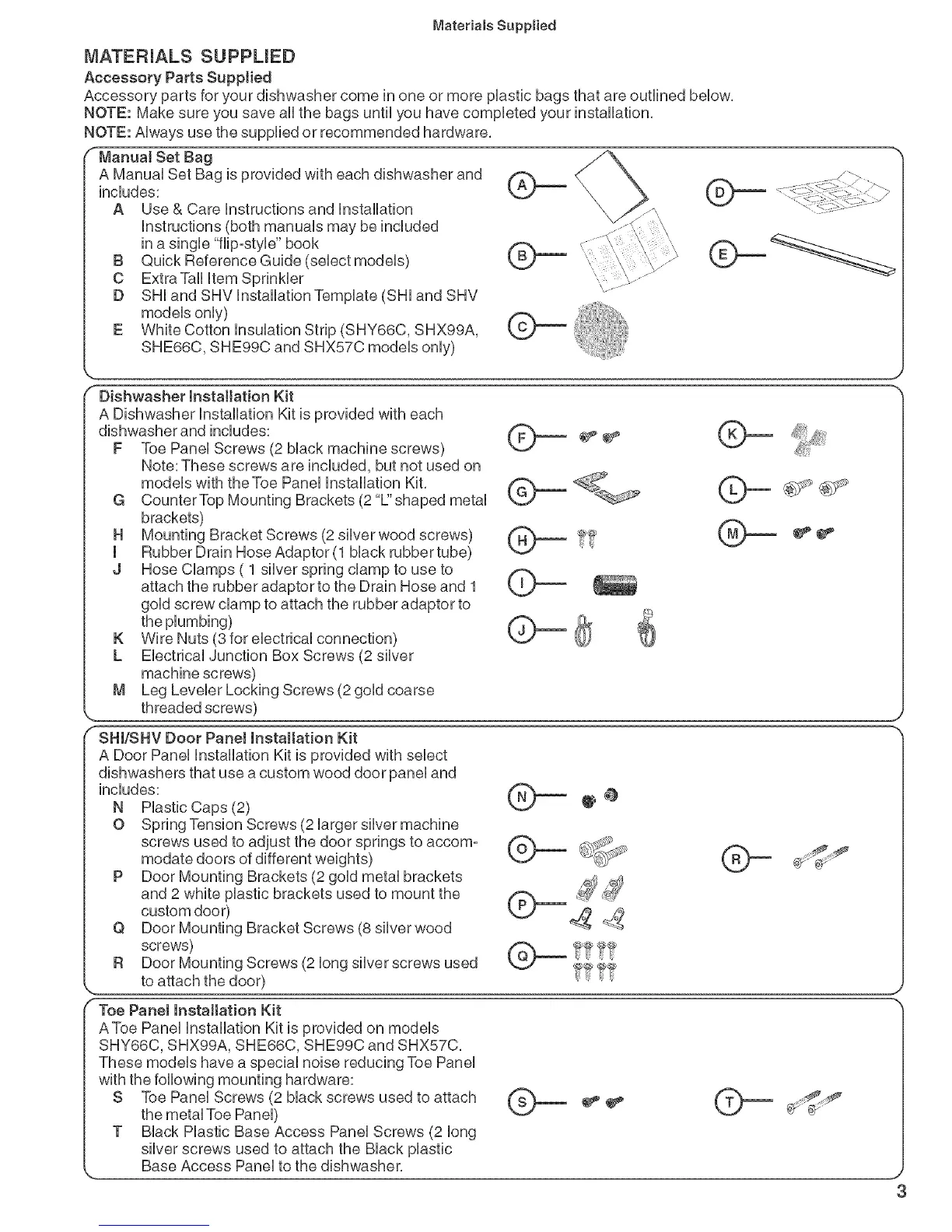

Materials Supplied
MATEFImALS SUPPUED
Accessory Parts Supplied
Accessory parts for your dishwasher come in one or more pUastb bags that are outlined bebw,
NOTE: Make sure you save aH the bags until you have compbted your installation,
NOTE: AUwaysuse the supplied or recommended hardware,
f Manual Set Bag
A ManuaUSet Bag is provided with each dishwasher and
incUudes:
A Use & Care instructions and installation
instructions (both manuab may be induded
in a singb "fHp-styb" book
B Quick Reference Guide (select models)
C ExtraTall Item Sprinkler ',,
D SHI and SHV Installation Template (SHI and SHV "-
models only)
8 s,$
E White Cotton Insulation Strip (SHY66C, SHX99A,
SHE66C, SHE99C and SHX57C models only)
A Dishwasher Installation Kit is provided with each
dishwasher and includes:
F Toe Panel Screws (2 black machine screws)
Note: These screws are included, but not used on
models with the Toe Panel Installation Kit,
G CounterTop Mounting Brackets (2 %?shaped metal
brackets)
H Mounting Bracket Screws (2 silver wood screws)
m Rubber Drain Hose Adaptor (1 black rubber tube)
J Hose Clamps ( 1 silver spring clamp to use to
attach the rubber adaptor to the Drain Hose and 1
gold screw clamp to attach the rubber adaptor to
K Wire Nuts (3 for electrical connection)
L Electrical Junction Box Screws (2 silver
machine screws)
IV] Leg Leveler Locking Screws (2 gold coarse
f SHm/SHV Door PaneJ mnstaHation Kit
A Door Panel Installation Kit is provided with select
dishwashers that use a custom wood door panel and
includes:
N Plastic Caps (2) _' _
0 Spring Tension Screws (2 larger silver machine
screws used to adjust the door springs to accom-
modate doors of different weights)
P Door Mounting Brackets (2 gold metal brackets
and 2 white plastic brackets used to mount the
custom door)
Q Door Mounting Bracket Screws (8 silver wood
screws) _ ®@ _@
R Door Mounting Screws (2 long silver screws used _ _ ........._
..............t_ a!t_£_tht_tO r).......................................................................................................................................................................................................................................
f Toe PaneJ installation Kit _'
AToe Panel Installation Kit is provided on models
SHY66C, SHX99A, SHE66C, SHE99C and SHX57C,
These models have a special noise reducing Toe Panel
with the following mounting hardware:
S Toe Panel Screws (2 black screws used to attach _
T Black Plastic Base Access Panel Screws (2 long
silver screws used to attach the Black plastic
3
f Dishwasher Installation Kit
