!4"
(356mm)
Hot Water
Supply
Line

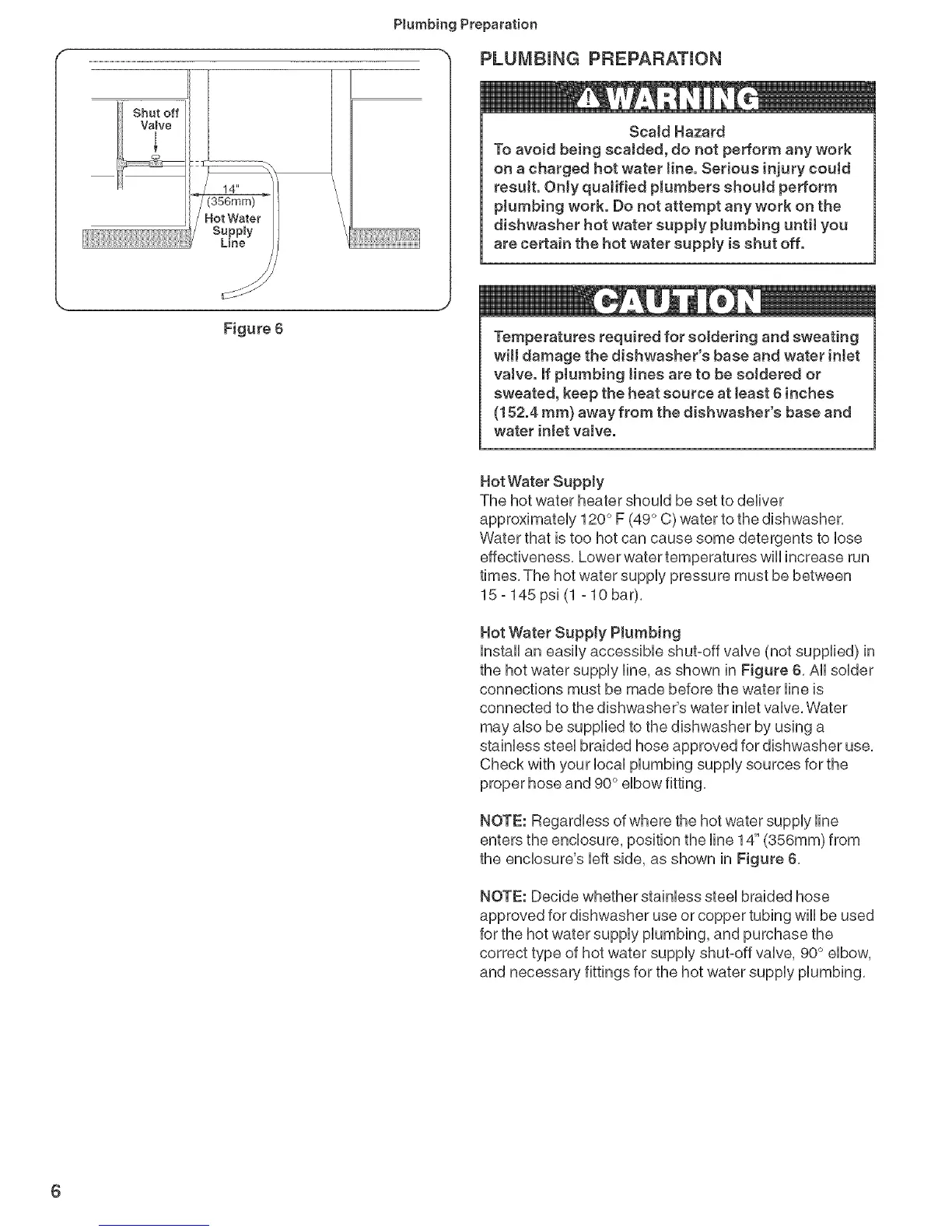

Figure 6
Plumbing Preparation
PLUMBING PREPARATmON
ScaJd Hazard
To avoid being ecaJded, do not perform any work
on a charged hot water line. Serious injury couJd
reeuJt. Only quaJified plumbers ehouJd perform
ptumbing work. Do not attempt any work on the
dishwasher hot water supply pJumbing until you
are certain the hot water euppJy is shut off.
Temperatures required for soldering and sweating
will damage the dishwasher's base and water intet
valve. If plumbing lines are to be soldered or
sweated, keep the heat source at least 5 inches
(152.4 ram) away from the dishwasher's base and
water inJet vaJve.
Hot Water SuppJy
The hot water heater should be set to deliver
approximately 120 ° F (49° C) water to the dishwasher,
Water that is too hot can cause some detergents to lose
effectiveness, Lower water temperatures will increase run
times, The hot water supply pressure must be between
15 - 145 psi (1 - 10 bar),
Hot Water SuppJy PJumbing
Install an easily accessible shut-off valve (not supplied) in
the hot water supply line, as shown in Figure 5, All solder
connections must be made before the water line is
connected to the dishwasher's water inlet valve, Water
may abe be supplied to the dishwasher by using a
stainless steel braided hose approved for dishwasher use,
Check with your local plumbing supply sources for the
proper hose and 90° elbow fitting,
NOTE: Regardless of where the hot water supply line
enters the enclosure, position the line 14" (356mm) from
the enclosure's left side, as shown in Figure 6,
NOTE: Decide whether stainless steel braided hose
approved for dishwasher use or copper tubing will be used
for the hot water supply plumbing, and purchase the
correct type of hot water supply shut-off valve, 90° elbow,
and necessary fittings for the hot water supply plumbing,
