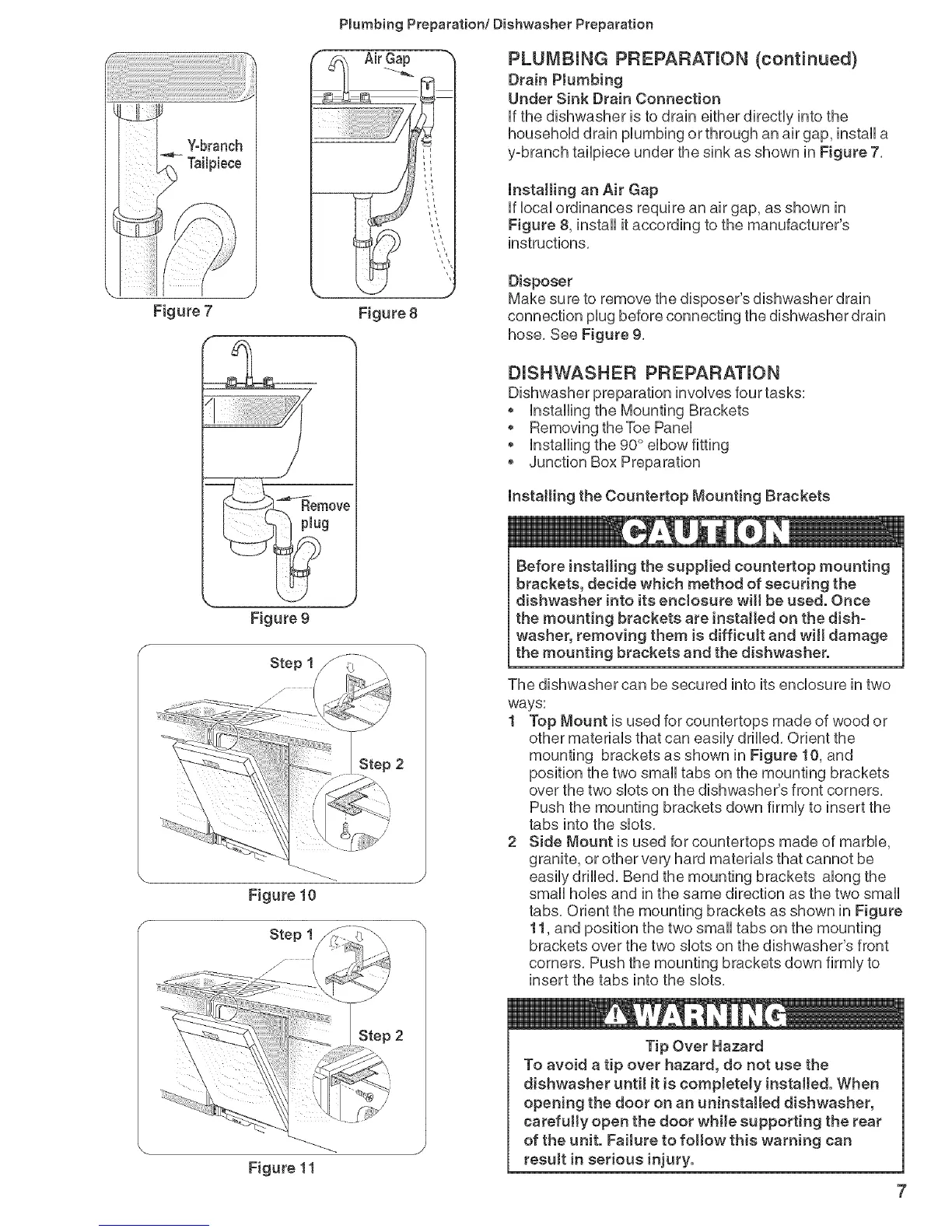

PLUMBING PREPARATmON (continued}
Drain PJumbing
Under Sink Drain Connection
if the dishwasher is to drain either directUyinto the
househoUd drain pUumbingor through an air gap, install a
y-branch taHpbce under the sink as shown in Figure 7,
Installing an Air Gap
ff bcaUordinances require an air gap, as shown in
Figure 8, install it according to the manufacturer's
instructions,
Disposer
Make sure to remove the disposer's dishwasher drain
connection plug before connecting the dishwasher drain
hose, See Figure 9,
DISHWASHER PREPARATmON
Dishwasher preparation involves four tasks:
• Installing the Mounting Brackets
Removing the Toe Panel
Installing the 90° elbow fitting
Junction Box Preparation
Installing the Countertop Mounting Brackets
Before installing the supplied countertop mounting
brackets, decide which method of securing the
dishwasher into its enclosure wilt be used. Once
the mounting brackets are installed on the dish-
washer, removing them is difficult and will damage
the mounting brackets and the dishwasher.
The dishwasher can be secured into its enclosure in two
ways:
1 Top Mount is used for countertops made of wood or
other materials that can easily drilled, Orient the
mounting brackets as shown in Figure 10, and
position the two small tabs on the mounting brackets
over the two slots on the dishwasher's front corners,
Push the mounting brackets down firmly to insert the
tabs into the slots,
2 Side Mount is used for countertops made of marble,
granite, or other very hard materials that cannot be
easily drilled, Bend the mounting brackets along the
small hobs and in the same direction as the two small
tabs, Orient the mounting brackets as shown in Figure
11, and position the two small tabs on the mounting
brackets over the two slots on the dishwasher's front
corners, Push the mounting brackets down firmly to
insert the tabs into the slots,
Tip Over Hazard
To avoid a tip over hazard, do not use the
dishwasher until it is completeJy installed. When
opening the door on an uninstaHed dishwasher,
carefully open the door while supporting the rear
of the unit. Failure to follow this warning can
result in serious injury.
