Bosch SHU33A02 - Control Modules with Displays

40
VI.
VI.
Component Access/Replacement
Component Access/Replacement
Control Modules
Control Modules
-
-
SHY56A/66C Control Modules with Displays
SHY56A/66C Control Modules with Displays
SHY56A/66C control modules have separate display
modules mounted on the front of fascia panels.
These instructions apply to
SHY56A & SHY66C models.

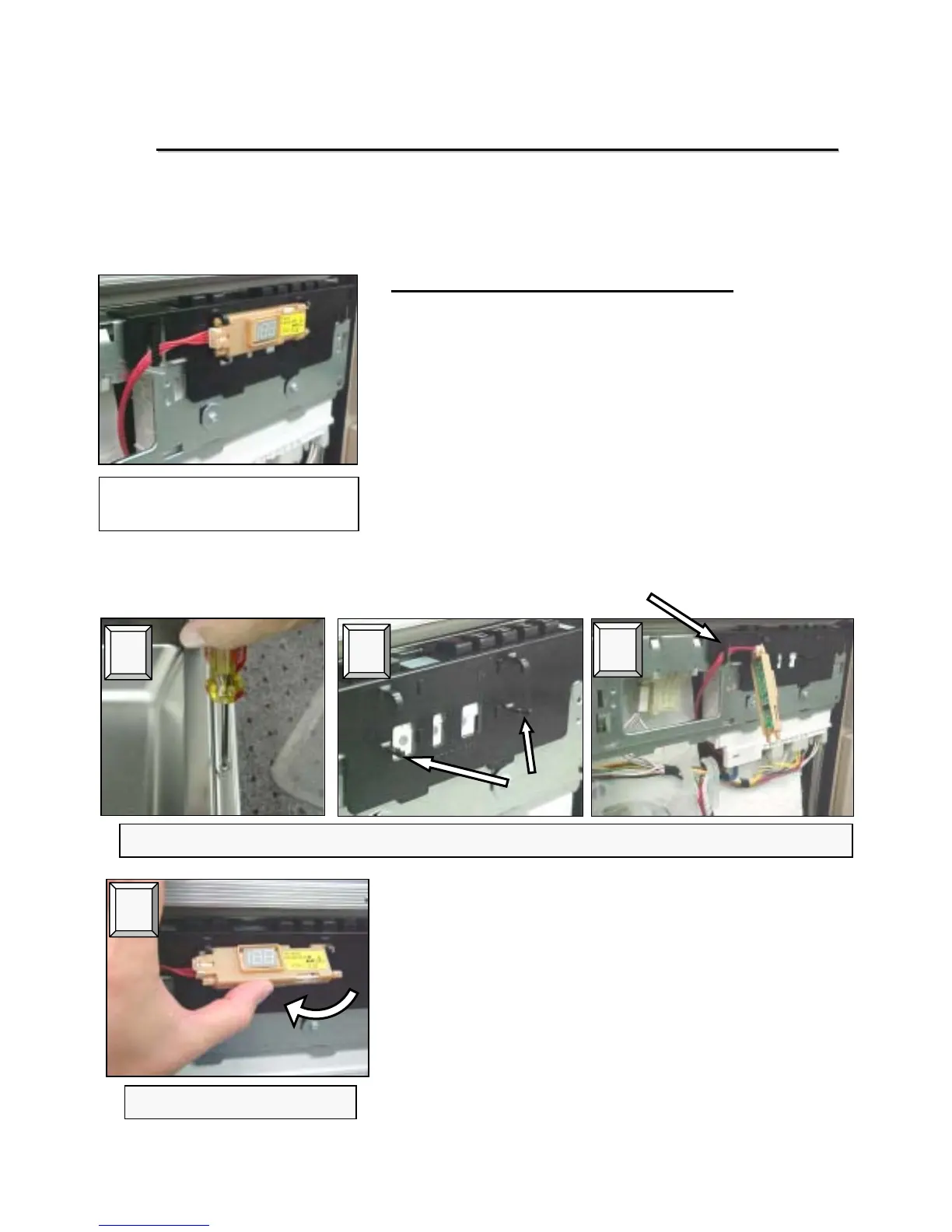

To remove/install display module
:

Remove outer door & fascia panel.
 Confirm the (4) pushbutton carrier display
latches are intact.
 Route display wire harness through (door
latch) console opening, press harness onto
pushbutton carrier wire guide & connect
terminal.
 Insert display into top latches (on
pushbutton carrier), then push bottom of
display up and rotate it into bottom latches.
1
3
2
wire guide
latches
4
Removing door & fascia Checking display latches Connecting wire harness
Locking display in place
