VIII.
VIII.
Troubleshooting
Troubleshooting
Dispenser
Dispenser
–
–

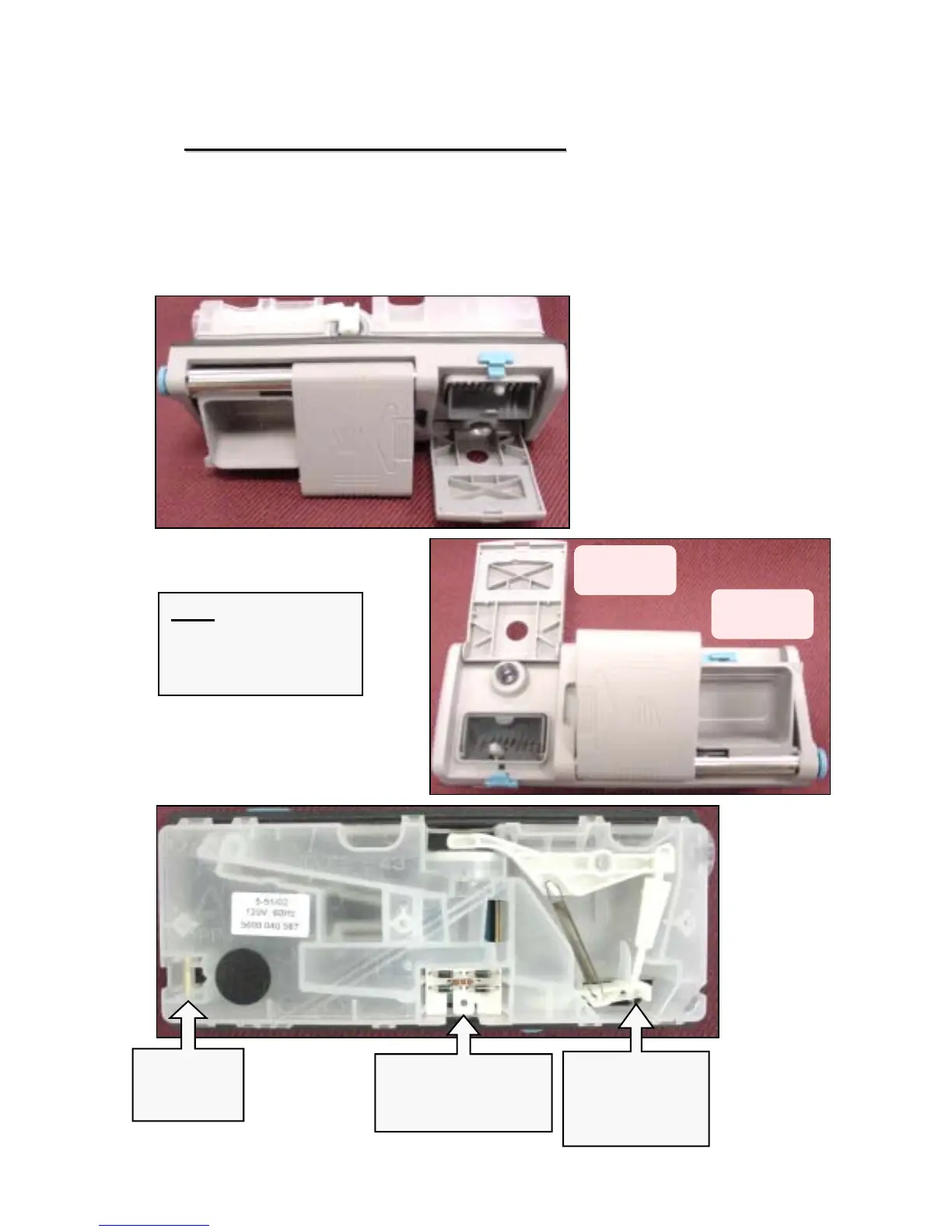

Top Load Dispenser (2)
Top Load Dispenser (2)
Top-load dispensers measure rinse-aid levels, but not with
removable reed switches as with traditional dispensers. The
dispensing mechanism also operates differently from
traditional dispensers. All top-load dispensers are unvented.
Detergent
door
Rinse-aid
reservoir
Detergent
cup
HINT: Resistances
of actuator and rinse-
aid sensor cannot be
measured.
Top-load
dispenser
actuator terminal
Rinse-aid
level
sensor
Mechanism
latches at the
bottom of the
dispenser
