Replacing Dispenser Doors
Replacing Dispenser Doors

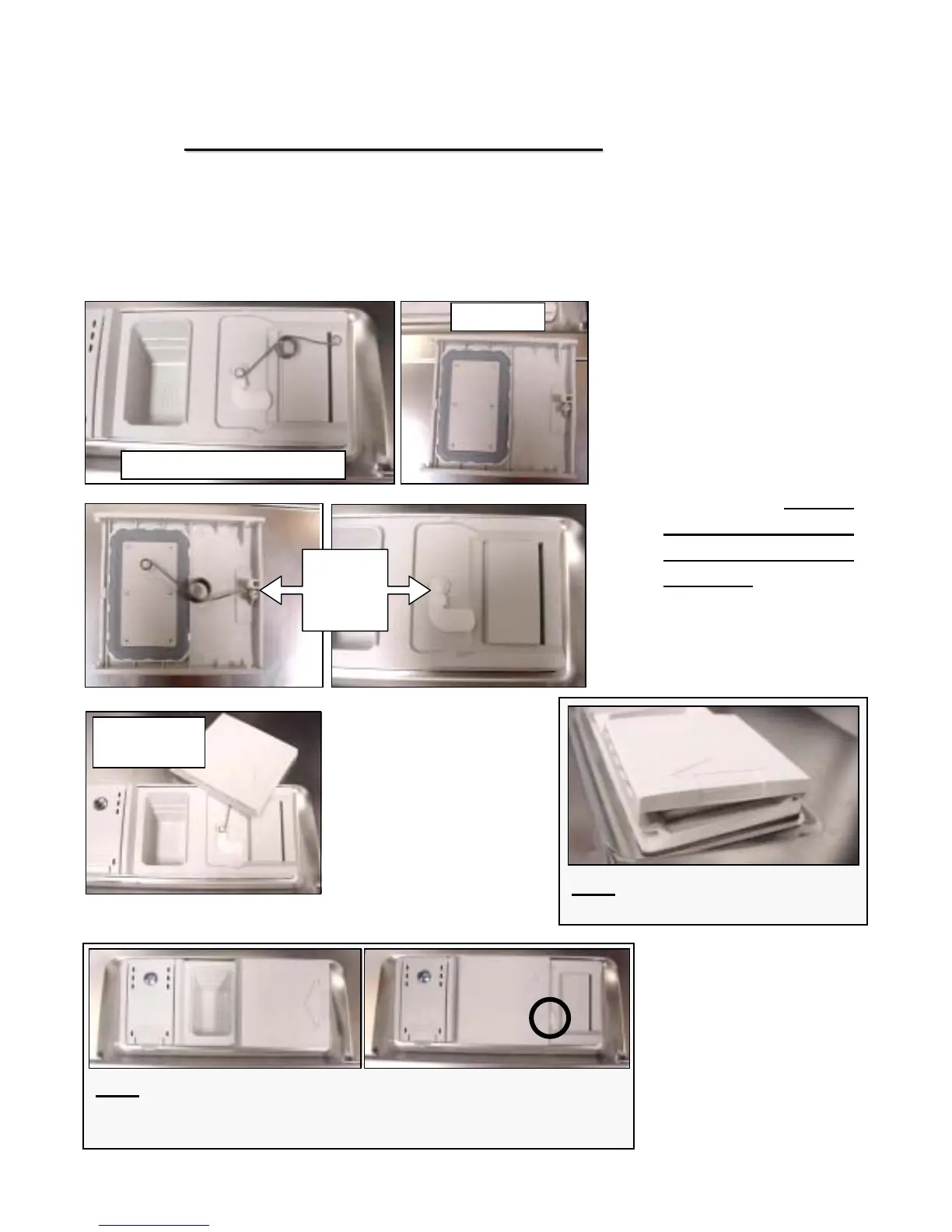

Most dispenser problems occur from dispenser doors being
damaged or pulled off (due to misuse). Please follow the
instructions below when replacing doors.
 Connect spring to
door & dispenser
housing posts.
 While keeping
spring attached to
posts, carefully
slide door onto
housing -- making
sure door tabs
engage dispenser
door rails.
 Door levers don’t
need to be preset
during installation.
Door
Dispenser with spring
Attach
spring
to post
HINT: Make sure door tabs
engage dispenser door rails.
Slide door
into rails
HINT: To close dispenser doors, slide doors closed, then push
white lever until lever locks (showing doors are closed). Levers
don’t need to be preset during installation.
Open
Closed
