Figure23 Figure24

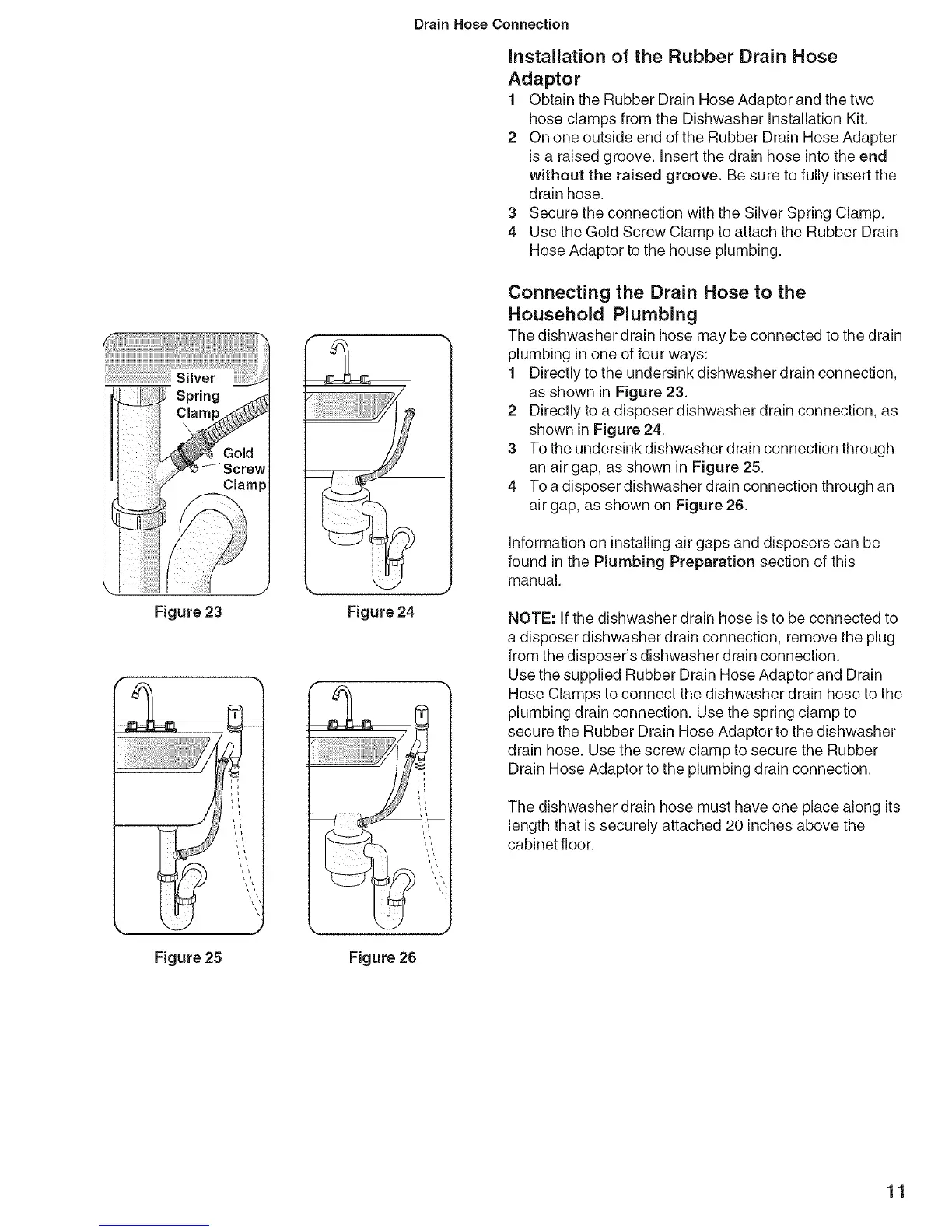

Drain Hose Connection
Installation of the Rubber Drain Hose
Adaptor
1 Obtain the Rubber Drain Hose Adaptor and the two
hose clamps from the Dishwasher Installation Kit.
2 On one outside end of the Rubber Drain Hose Adapter
isa raised groove. Insert the drain hose into the end
without the raised groove. Be sure to fully insertthe
drain hose.
3 Secure the connection with the Silver Spring Clamp.
4 Use the Gold Screw Clamp to attach the Rubber Drain
Hose Adaptor to the house plumbing.
Connecting the Drain Hose to the
Household Plumbing
The dishwasher drain hose may be connected to the drain
plumbing in one of four ways:
1 Directly to the undersink dishwasher drain connection,
as shown in Figure 23.
2 Directly to a disposer dishwasher drain connection, as
shown in Figure 24.
3 To the undersink dJshwasherdrain connection through
an air gap, as shown in Figure 25.
4 To a disposer dishwasher drain connection through an
air gap, as shown on Figure 26.
Information on installing air gaps and disposers can be
found in the Plumbing Preparation section of this
manual.
NOTE: if the dishwasher drain hose is to be connected to
a disposer dishwasher drain connection, remove the plug
from the disposer's dishwasher drain connection.
Use the supplied Rubber Drain Hose Adaptor and Drain
Hose Clamps to connect the dishwasher drain hose to the
plumbing drain connection. Use the spring clamp to
secure the Rubber Drain Hose Adaptor to the dishwasher
drain hose. Use the screw clamp to secure the Rubber
Drain Hose Adaptor to the plumbing drain connection.
The dishwasher drain hose must have one place along its
length that is securely attached 20 inches above the
cabinet floor.
Figure 25 Figure 26
11
