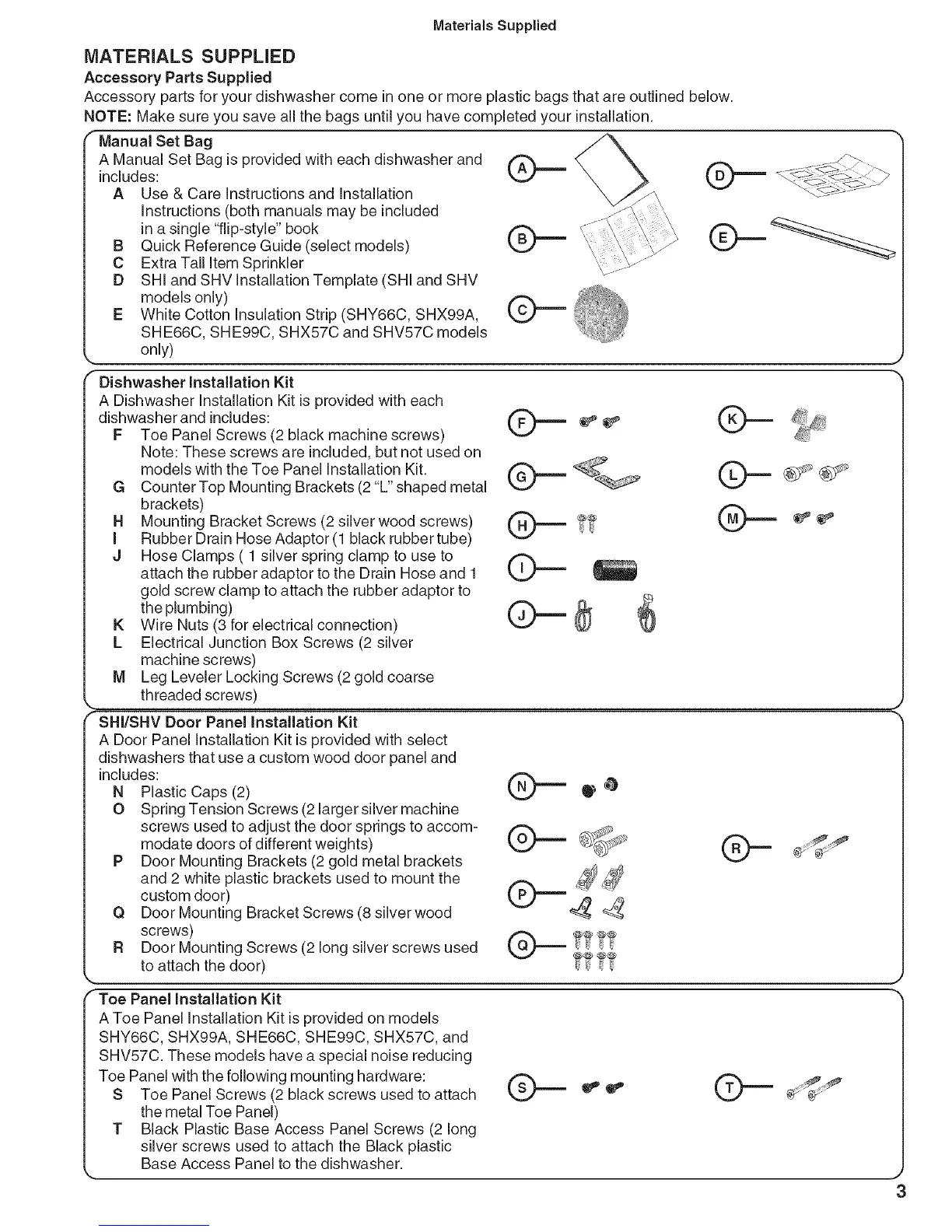

Materials Supplied
MATERIALS SUPPLIED
Accessory Parts SuppJied
Accessory parts for your dishwasher come in one or more plastic bags that are outlined below.
NOTE: Make sure you save aii the bags until you have completed your installation.
( Manual Set Bag
A Manual Set Bag is provided with each dishwasher and
includes:
A Use & Care Instructions and Installation
Instructions (both manuals may be included
in a single "flip-style" book
B Quick Reference Guide (select models)
C ExtraTall Item Sprinkler
D SIll and SHV Installation Template (SIll and SHV
models only)
E White Cotton Insulation Strip (SHY66C, SHX99A,
SHE66C, SHE99C, SHX57C and SHV57C models
f Dishwasher Installation Kit
A Dishwasher Installation Kit is provided with each
dishwasher and includes:
F Toe Panel Screws (2 black machine screws)
Note: These screws are included, but not used on
models with the Toe Panel Installation Kit.
G Counter Top Mounting Brackets (2 "L" shaped metal
brackets)
H Mounting Bracket Screws (2 silver wood screws)
I Rubber Drain Hose Adaptor (1 black rubber tube)
J Hose Clamps ( 1 silver spring clamp to use to
attach the rubber adaptor to the Drain Hose and 1
gold screw clamp to attach the rubber adaptor to
the plumbing)
K Wire Nuts (3 for electrical connection)
L Electrical Junction Box Screws (2 silver
machine screws)
M Leg Leveler Locking Screws (2 gold coarse
(b--
@-
@._
(2)--
f"SHi/SHV Door Panel installation Kit
A Door Panel Installation Kit is provided with select
dishwashers that use a custom wood door panel and
includes:
N Plastic Caps (2)
O Spring Tension Screws (2 larger silver machine
screws used to adjust the door springs to accom-
modate doors of different weights)
P Door Mounting Brackets (2 gold metal brackets
and 2 white plastic brackets used to mount the
custom door)
O Door Mounting Bracket Screws (8 silver wood
screws)
R Door Mounting Screws (2 long silver screws used
to attach the door)
k..
(* Toe Panel Installation Kit
A Toe Panel Installation Kit is provided on models
SHY66C, SHX99A, SHE66C, SHE99C, SHX57C, and
SHV57C. These models have a special noise reducing
Toe Panel with the following mounting hardware:
S Toe Panel Screws (2 black screws used to attach
the metal Toe Panel)
T Black Plastic Base Access Panel Screws (2 long
silver screws used to attach the Black plastic
_, Base Access Panel to the dishwasher.
(b-
J
3
