6
Dimensions and Cabinet Requirements
General Cabinet Requirements
Cabinet requirements vary depending on the model to be
installed. Please consult the section Dimensions for the
details pertaining to your particular model.
All models require:
▯ ¼" (6.4 mm) space between the side of the appliance
and an adjacent wall or cabinet door when installed at
the end of a cabinet run.
▯ The cabinet base must be flat and capable of
supporting the weight of your appliance when in use.
See the appropriate weight for your model in the
Dimensions section pertaining to your particular
model. For combination units consult the section
Cabinet Dimension Requirements in the installation
manual of your combination appliance.
▯ The appliance door will overlap the furniture below by
approx. 3/16" (5 mm) when opened. If necessary, you
can elevate the appliance position by adding a panel
in the required thickness on top of the supporting
base. The supporting base must be level and securely
fixed to the cabinet.
Outlet Area
Anywhere within the shaded area the minimal distance
between the appliance and the wall is 1¾ in (45 mm).
Appliances with plug connection: The outlet can be
located anywhere within the shaded area.
Appliances with wire conduit connection:
▯ For stand alone installation, the electrical connection
box must be mounted to the wall inside the cabinet
cavity anywhere within the shaded area.
▯ For installation as part of a combination of various
Bosch appliances, please consult the installation
manual of the combo-unit.

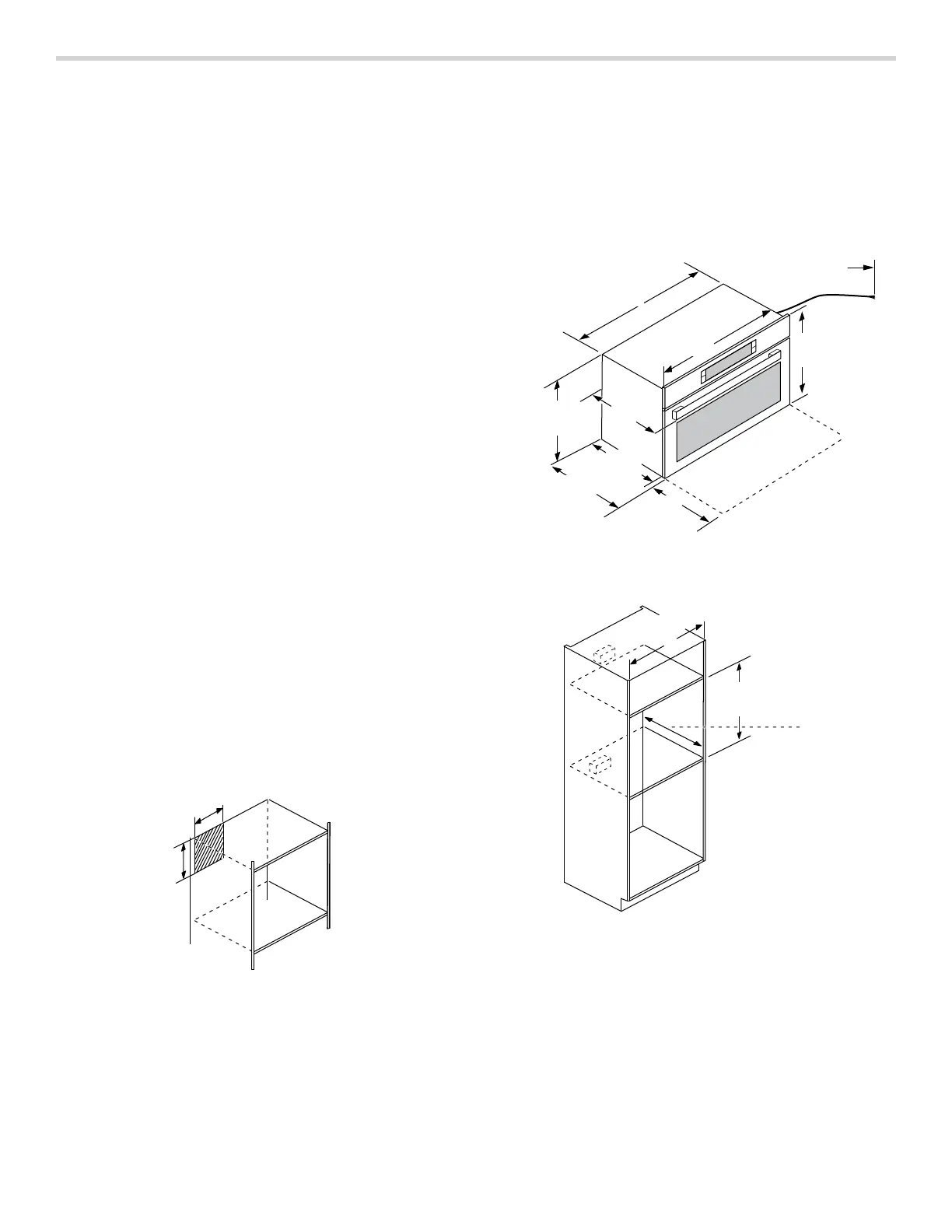

Dimensions for 30" Wall-Mounted Units
HMC80152UC
HMC80252UC
HMCP0252UC
Appliance Dimensions
Cabinet Dimensions
NOTICE: The cabinet base must be flat and capable of
supporting a weight of at least 142 lbs (64.1 kg).
PP
PP
+0&38&+0&8&
PP
ç¼ʚ
ʌ¼ʚ
ë
èç¼ʓʘ
ë
ç¼ʚ
ê
+0&8&
ê
ç¼ȫȰ
PP
