Installation (only for approved contractors)
15
Tronic 5000 – 6721830067 (2021/06)
Identify the water connections
▶ Make sure the cold and hot water pipes are duly identified,
in order to avoid confusion.

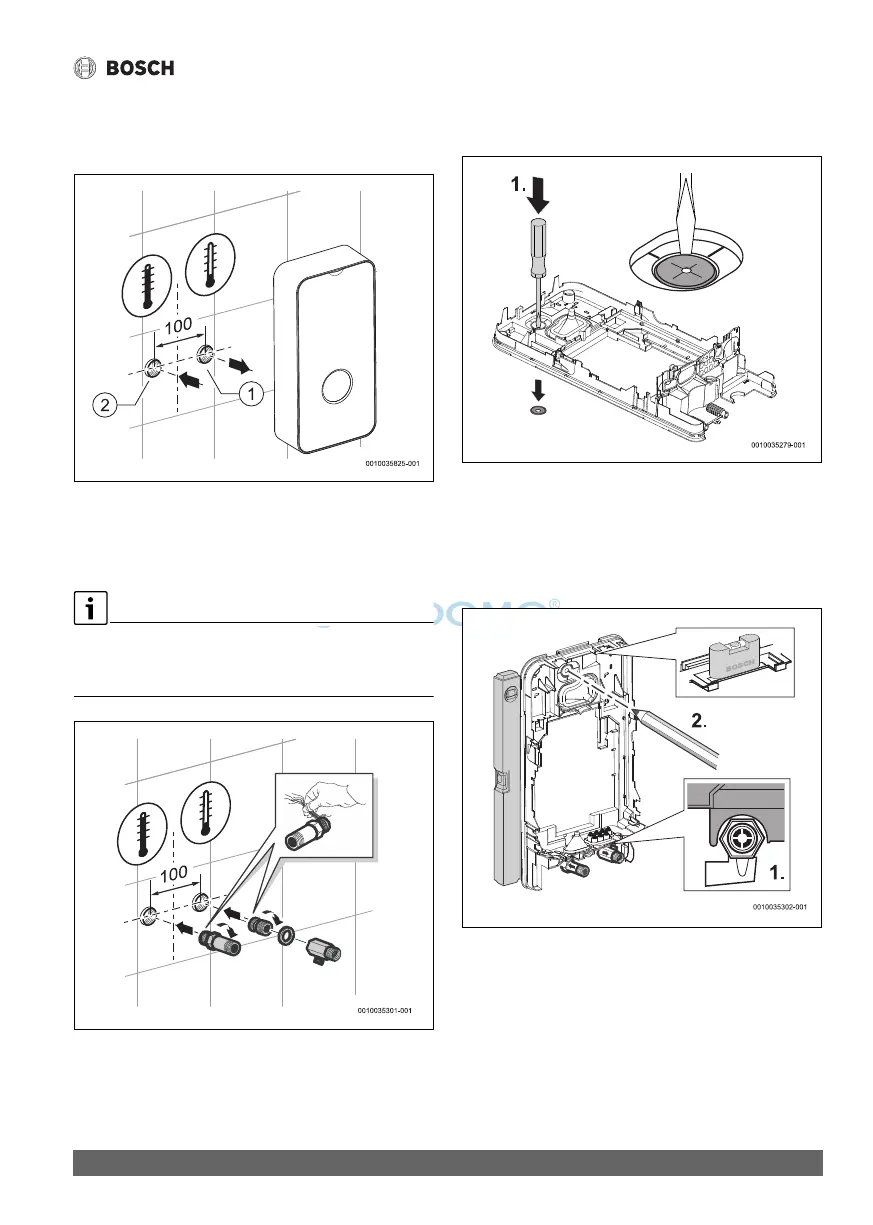

Fig. 14
[1] Cold water inlet (G ½")
[2] Hot water outlet (G ½")
▶ Install the water connection accessories.
During the installation of the shut-off valve,
▶ Make sure that the shut-off valve handle is facing
downwards.
Fig. 15
5.5 To mount the appliance on the wall
▶ Remove the plastic part from the back of the appliance.
Fig. 16
▶ Use the back of the appliance as a hole pattern.
▶ Support the appliance on the cold water accessory to
facilitate marking on the wall.
▶ Mark the mounting point, ensuring that the appliance is in a
level and vertically position.
Fig. 17

Bosch TR5001R 15/18/21 EB Specifications

General

Type	Instantaneous water heater
Power	15/18/21 kW
Voltage	400 V
Energy Efficiency Class	A
Protection Class	IP25
Power Consumption	15/18/21 kW
Mounting	Wall-mounted
Heating Element	Bare wire
Thermostat	Electronic
Protection	Overheat protection
