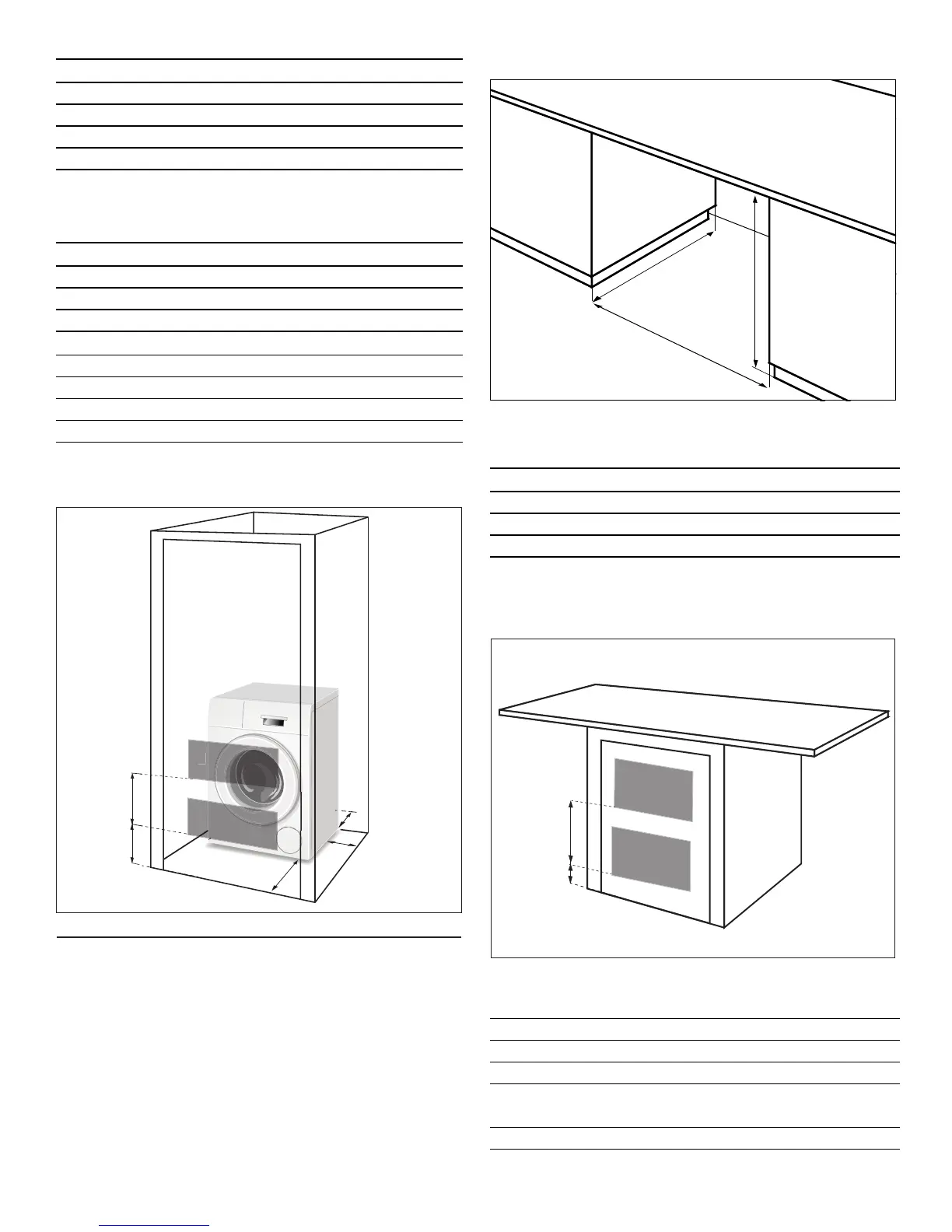

9
Stand alone (shown) or Side-by-Side
Under counter (Preferred)
Front of the appliance fully open.
No doors or coverings.
Under counter (Less Desirable)
If front of the appliance is covered ventilation openings
must be installed.
Clearance requirements (Minimum)
A Both Sides 0.6 in. 1.5 cm
B Top 6.3 in. 16 cm
C Rear* 3.2 in. 8 cm
D Front 3.4 in. 8.5 cm
* Rear clearance as close to wall as venting or water
connection will allow. If the washer is installed with a
dryer, the greater rear clearance for the dryer venting is
required for the laundry pair.
Ventilation area (Minimum)
E Top 63 sq. in. 404 sq. cm
F Bottom 63 sq. in. 404 sq. cm
Vent spacing (actual not minimum dimensions)
G 37 in. 94 cm
H 26 in. 66 cm
J 3 in. 7.6 cm
K 29 in. 73 cm
(
)
.
-
&
$
'
Minimum opening dimensions
A 23.8 in. 60.5 cm
B 23.8 in. 60.5 cm
C 33.5 in. 85 cm
E & F are minimum area sizes
E 63 sq.in. 404 sq.cm
F 63 sq.in. 404 sq.cm
G & H
actual spacing dimensions for min. open area sizes
G 3 in. 7.6 cm
H 14 in. 35.6 cm
$
&
%
(
)
*
+
