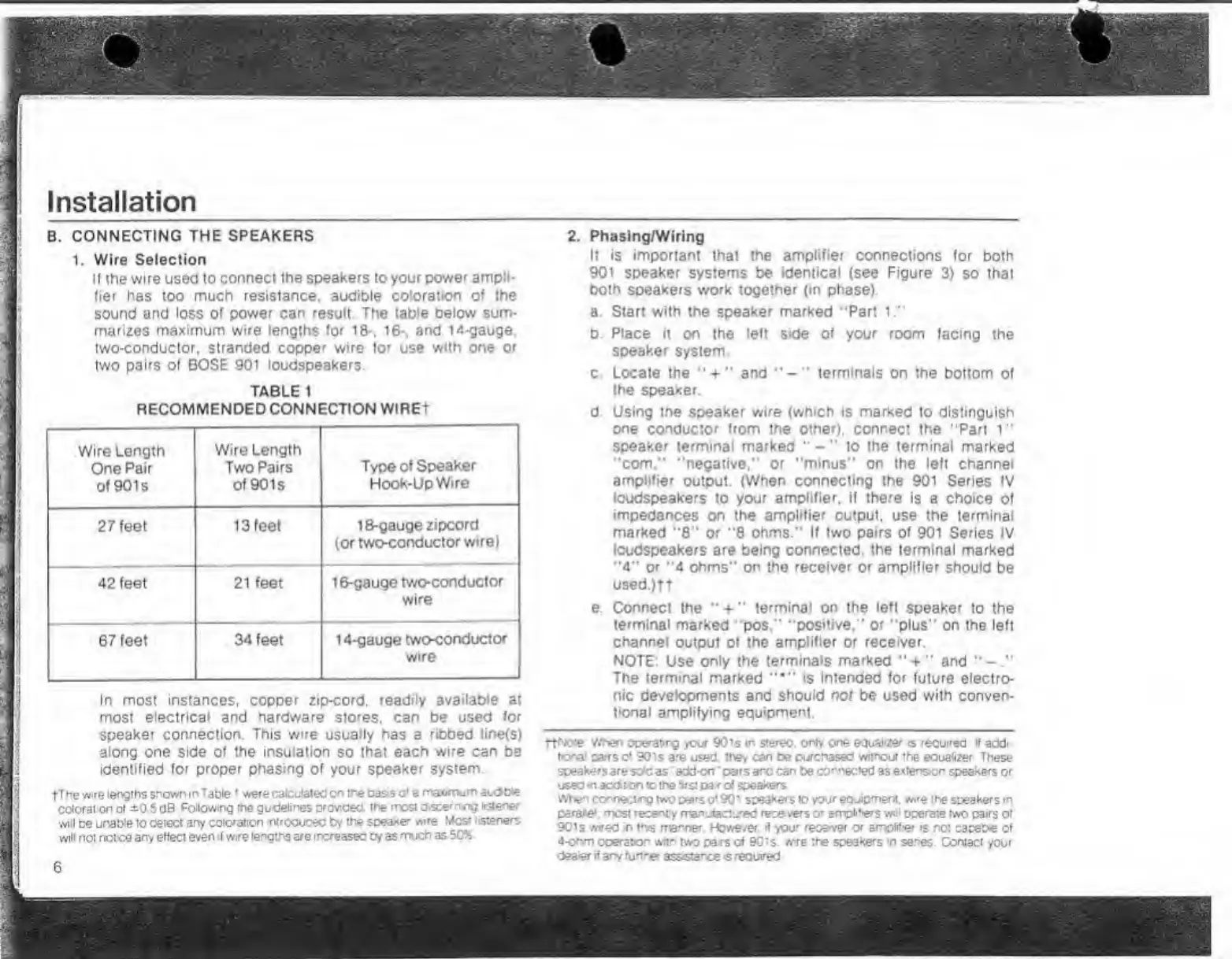

Installation
B. CONNECTING THE SPEAKERS
Wire Selection
If ihe wi re used to cortnect the speakers to your power ampli*
lier has too rnjch resistance, euOiPle cotoretion of the
sound and loss of power car) result. The labie below surrv
mari 2 e$ maximum wire lei%gihs for IS*. 16 *, end i4-9au9e.
two*cor)duclor, stranded copper wire for use with or>e or
two pairs of 60SE 901 loudspeakers,
TABLE 1
RSCOMMENOED CONNECTION WIREt
2. PhaeIngAViring
It Is Important that the amplifier connections for both
901 speaker systems be identical (see Figure 3) so that
both speakers work together (irt phase).
a. Start with the speaker marked "Part 1."
b. Place It on the left side of your room facing the
speaker system.
c. Locale the " + " and terminals on Ihe bottom of
ihe speaker.
d. Using the speaker wire (which is marked to distinguish
one conductor from the other), connect the "Part i "
speaker terminal marked to the terminal marked
‘‘com," "negative," or "minus" on the left channel
amplifier output. (When connecting the 901 Series iv
loudspeakers lo your amplifier, if there is a choice of
impedances on the amplifier output, use the iermir)al
marked "6" or "6 ohms.'* If two pairs of 901 Series IV
loudspeakers are being connected, the terminei marked
**4" or "4 ohms'* on the receiver or amplifier should be
used.)tt
e. Connect the "•!*" terminal on the left speaker to the
termir)ai marked "pos." "posilrve." or "plus" on Ihe left
channel output of the amplifier or receiver,
NOTE: Use only the terminals marked " + " and - ."
The termiriai marked "*" is intended for future electro¬
nic developments arvj should nof be used with conven¬
tional amplifying equipment.
Type of Speaker
Hook-Up Wire
18 -gauge zipccrd
(or twooonductor wi re)
1 6s0u9® two-conductor
wire
l4-gau9e two-conductor
wire
In most instances, copper zip-cord, readily available at
most electrical and hardware stores, can be used for
speaker conneciion. This wire usually has a ribbed line(s)
along one side of the insulation so lhat each wire can be
identified for proper phasing of your speaker system.
tlhe wire lengths shown in^aDie ) were cdicuieica on base or a meNmum maMs
COloraVon of 5 08 Following tw giMeMnes orovtoeo. the moa d«cerntfig UKincr
Mil be ur^pie lo Oeteci any coioraiion iruroouceC by its soeaKer wre Mccf issnars
will noi "CT ca any erteci even if mre lengths are increased Dy as rruchs 50k
rfMoie Mhen o c er a fc n g you* 90is m aereo, orfy one eouehnr «reomted it addi-
honal pave ol 90)s are used, Hvy can be purtfiasad witoui the eaue*ze' These
spc ek c fsarfe«*qas adooi o^rsano on ix corrected as axten^on speekera o'
used m addeon D Ihe bsl pajr ol spoaite's
Whencotviea^Nop»sol90i sp eake rs »o your eoMynerc iwre the speakers m
O O r a l c l. Tca recer^y manulBC^.J«d lec^vera or anicifet«rsw« ocerale iwo pairs
90l$wred n Ihe manner Hpwever, d ycur lecenw or ampMer tsnoi oaseCieof
4<fifn operaPor Mtr two pa/aof 90is. wve tha speakers ki saoes Contact your
deeler il any kidher assQtarce 6 reot^ed
Wire Length
One Pair
0f90U
Wire Length
Two Pairs
of 901$
27 feet 13 feet
42 feet 2^ feet
67 feet
34 feet

Bose 901 IV Series Specifications

General

Impedance	8 Ohms
Enclosure Type	Acoustic suspension
Weight	35 lbs each
Configuration	Stereo
Drivers	Nine 4.5-inch full-range drivers
Crossover Frequency	No internal crossover
