Using External Components
Connecting other sound sources
This new changer provides a hub for other component connections.
CAUTION: Before connecting additional components, and to protect your components from
damage, be sure to unplug the multi-disc changer from the AC (mains) wall outlet if it is
plugged in.
Choose the component(s) you want to connect
Additional RCA input jacks allow you to connect other audio or video components to the
multi-disc changer. This gives you the advantage of hearing Acoustic Wave
®
music system
sound from a range of sources. They can include a TV, VCR, cassette player, or DVD player,
for example.
Note: To connect an Acoustic Wave
®
microphone, use the MIC jack on the rear of the
Acoustic Wave
®
music system. The multi-disc changer is not designed for use with a
microphone.
Steps for adding other components:
Use the RCA cable supplied with the component.
1. Insert both connectors at one end of that cable into AUDIO OUT jacks on the rear of the
component (Figure 10).
2. Insert both connectors at the other end of the cable into one pair of AUX jacks on the
multi-disc changer.
CAUTION: Be sure to match the red plug to the red jack.
Repeat steps 1 and 2 for any other components you want to connect.

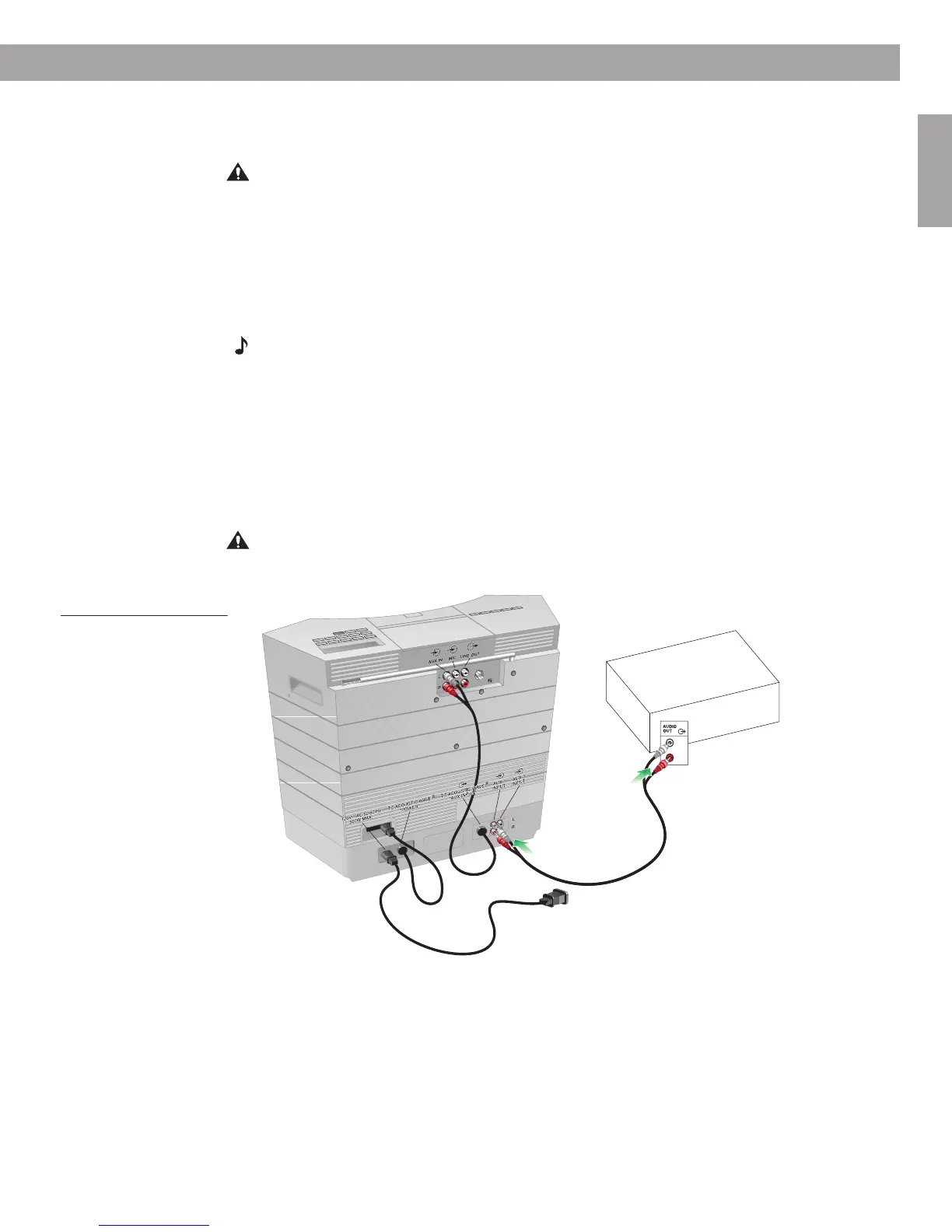

Figure 10
Connecting additional
components
L
R
Auxiliary component
TM
