COMPLETE SYSTEM CONNECTIONS
EnglishTAB 6TAB 8 TAB 7 TAB 3TAB 5 TAB 2TAB 4
16. Notice that the two remaining plugs are labeled
Composite and S-Video.

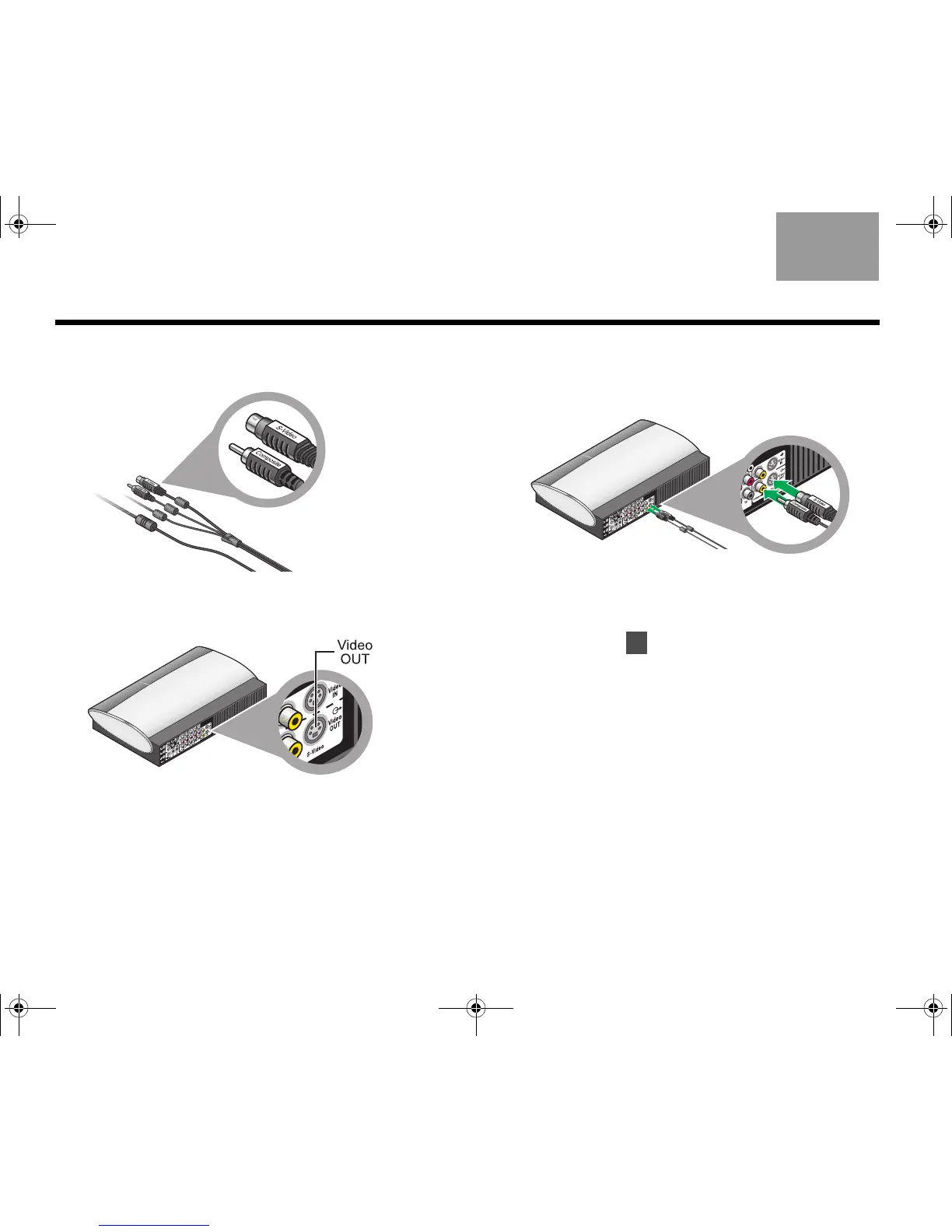

17. On the rear panel of the media center, locate the
Video OUT connectors.
18. Insert the two video plugs, with their labels facing
up, into the appropriate Video OUT connectors on
the media center.
Check to be sure that the two cable plugs are
inserted into the lower Video OUT connectors, and
NOT into Video IN.
19. Continue with on the next page to begin
preparing your TV for use with the system.
