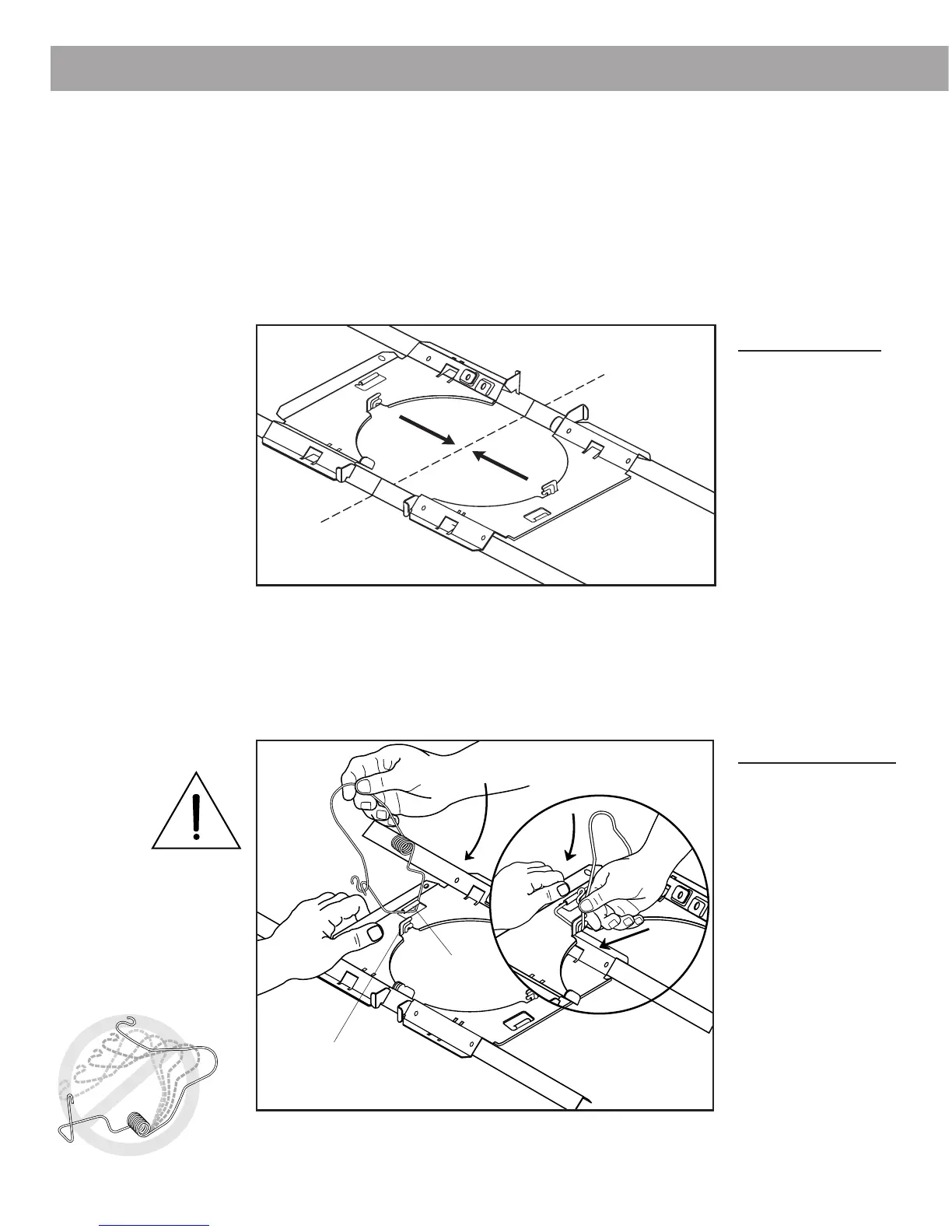

Figure 7
Review Section 3.0 “Before You Begin” before installing FreeSpace
®
Model 8 or
Model 32 loudspeakers. It contains important guidelines for choosing the correct
installation method and providing proper support for the loudspeakers.
4.1 Ceiling pans
Ceiling tile installation
Note: Do not unhook the springs. Wear safety glasses.
1a. For Model 8 loudspeakers, push both halves of the ceiling pan together
(Figure 7). Center
the support rails by
lining up the space
between the two
halves of the pan
with the center
marks on the rails.
1b. For Model 32
loudspeakers,
center the ceiling
pans approximately
1
5
⁄
16
inch around
the center marks
on the rails.
2. Place the spring under the spring retainer on the ceiling pan (Figure 8).
Position the spring as shown and snap under the retaining hook.
3. Repeat for the second spring.
CAUTION:
The springs
are pre-
loaded
and ready to use.
Unhooking them,
except as described in
this guide, may cause
personal injury. Wear
safety glasses.
Spring
retainer
Retaining hook
4.0 Installation
Figure 8
AM177915_03_V.pdf • May 6, 2002
