Bose FreeSpace DS 40SE

13
MAIN PART LIST
DS 40SE Wall-Mount Bracket (included with loudspeaker)

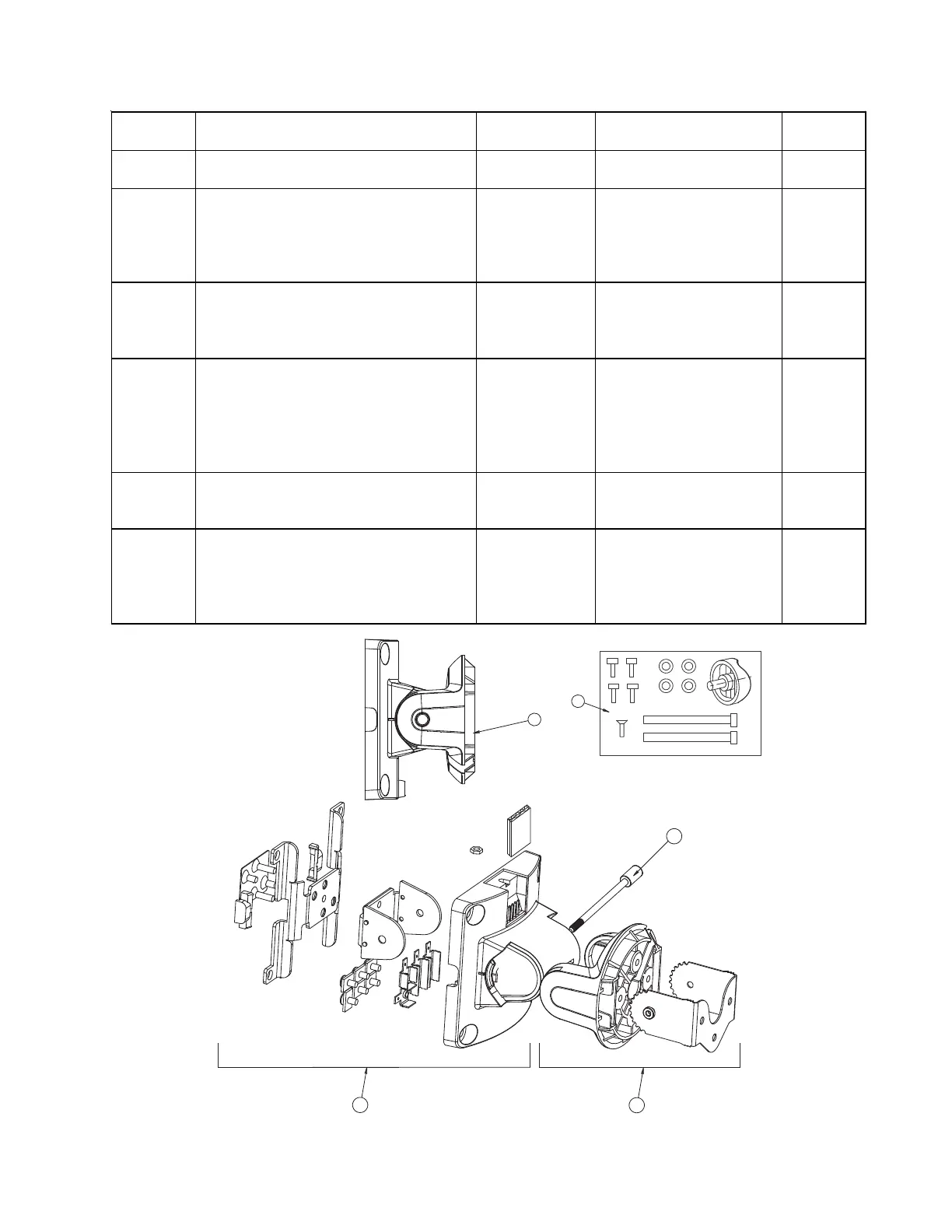

Figure 5. DS 40SE Wall-Mount Bracket Exploded View
1
2
3
4
5
Item
Number
Description Bose
®
Part
Number
V
endor Part Number Note
1 DS 40/100SE Bracket Ass
y
, Black 315253-001 BSACDS100+08CSX1
DS 40/100SE Bracket Assy, White 315253-002 BSACDS100+08CSX2
2 DS 40/100SE Bracket, Wall Mount
(w/strain relief, terminals & pivot
screw)
BLACK
WHITE
315824-001S
315824-002S
4155-3411+0
4155-3412+0
3 DS 40/100SE Bracket Arm (w/4
screws, 4 washers & pivot screw)
BLACK
WHITE
315821-001S
315821-002S
4155-3421+0
4155-3422+0
4 DS 40/100SE Bracket Pivot Screw
BLACK
WHITE
315829-001S
315829-002S
4135-8511+0
4135-8512+0
Theft-Deterrent Pivot Screw
BLACK
WHITE
315831-001S
315831-002S
4135-8514+0
4135-8513+0
5 Hardware included with item 1
(strain relief w/screw, 2 pivot
screws, 4 screws, 4 washers)
-
-
-
-
- DS 40/100SE Bracket Hardware Kit
(2 doors, strain relief w/screw,
4 screws, 4 washers)
BLACK
WHITE
315827-001S
315827-002S
SVC-SCURL11+BKTB
SVC-SCURL12+BKTW
