English • 5Installation Guide • FreeSpace FS2P
PRO.BOSE.COM
Setup
Wiring the Loudspeaker
Wire Gauge
The FreeSpace FS2P loudspeaker is designed to work with 18 AWG (0.8 mm
2
) to 14 AWG (2.1 mm
2
) size wire only.
Loudspeaker Settings
70V
1W 2W 4W 8W 16W*
16Ώ
2W 4W 8W 16W NC**
100V
** NC: No Connection (do not use)* Factory default
Transformer Tap Setting
Set tap by turning. Use a flat head screwdriver.

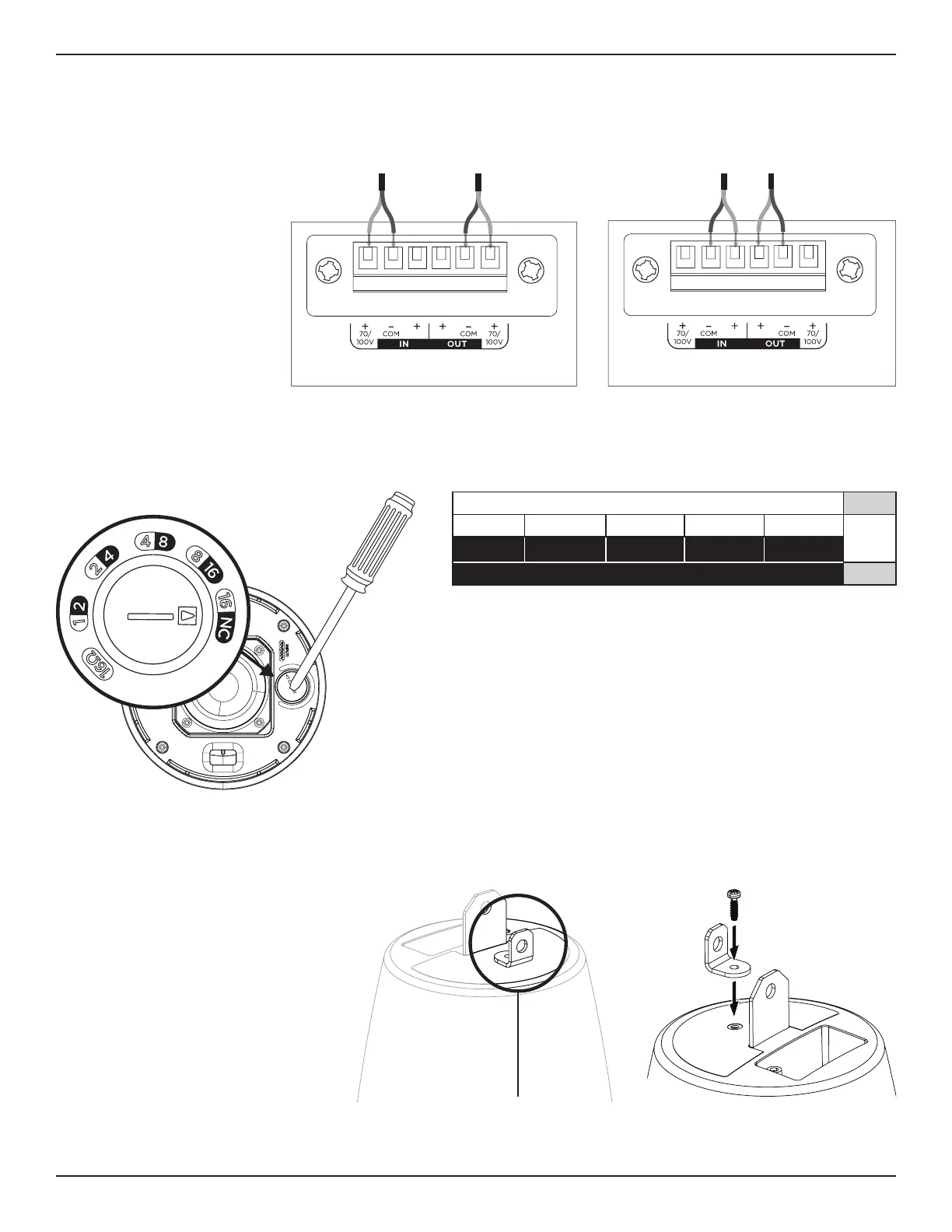

Connection Diagrams
Expose six millimeters (¼inch) of
bare wire to attach to the terminals.
Note: The loudspeaker is not rated
for use with a rigid conduit. The
loudspeaker is suitable for a flexible
conduit or wiring connection only.
Note: Wiring method must be in
accordance with:
In Canada, CSA C22.1, Canadian
Electrical Code, Part I, Safety
Standard for Electrical Installations,
Section 32;
In the United States, The National
Electrical Code, NFPA 70, and the
National Fire Alarm and Signaling
Code, NFPA 72.
Preparing the Installation
Using a Safety Cable
Some regional construction codes require
the use of a secondary method of securing
loudspeakers to support structures to
provide additional safety. Choose a
mounting position, method, and hardware
consistent with local building codes and
regulations.
Bose recommends using (1) a safety
wire or (2) a safety cable as a secondary
securing mechanism (not included).
See the diagram to the right for safety
attachment points.
Follow the manufacturer’s instructions
for any secondary securing mechanism
implemented.
qw
70/100V 16Ω
16Ω
16Ω
16Ω
16Ω
