Setting Up/Using Your MediaMate
®
Speakers
1. Connect one end of the audio input cable to AUDIO INPUTS A.
2. Connect the other end to your computer’s AUDIO OUTPUT jack.
We recommend using LINE OUT if your computer sound card
offers more than one option.
3. To connect a separate CD-ROM, or another source, repeat
steps 1 and 2 using AUDIO INPUTS B.
How to connect the power pack
You must connect the AC power pack to operate the speakers.
1. Plug its cable end into the power jack on the powered speaker.
2. Plug the power pack blades into the wall outlet.
3. Turn on your computer sound source or external sound source.

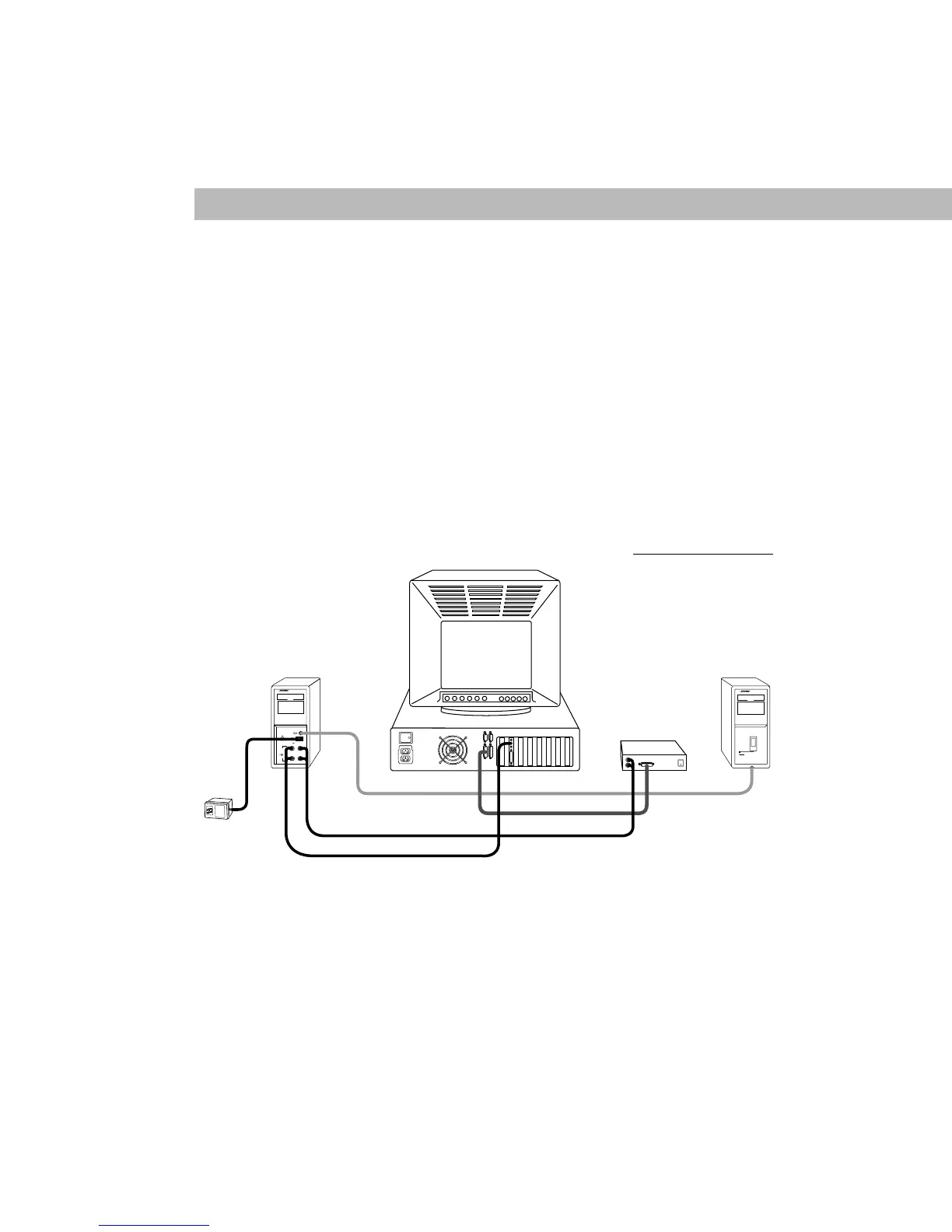

Figure 4
Complete connections
How to use the volume control
Your computer hardware may have an external volume control. In
addition, the computer’s operating software and some other soft-
ware you use may provide on-screen controls for the volume.
Decide which controls you prefer to use to adjust the volume while
you listen. Then follow the proper instructions on page 9 for setting
the controls you will not use.
