Bose Panaray MA12 User Manual

MA12 MA12EX

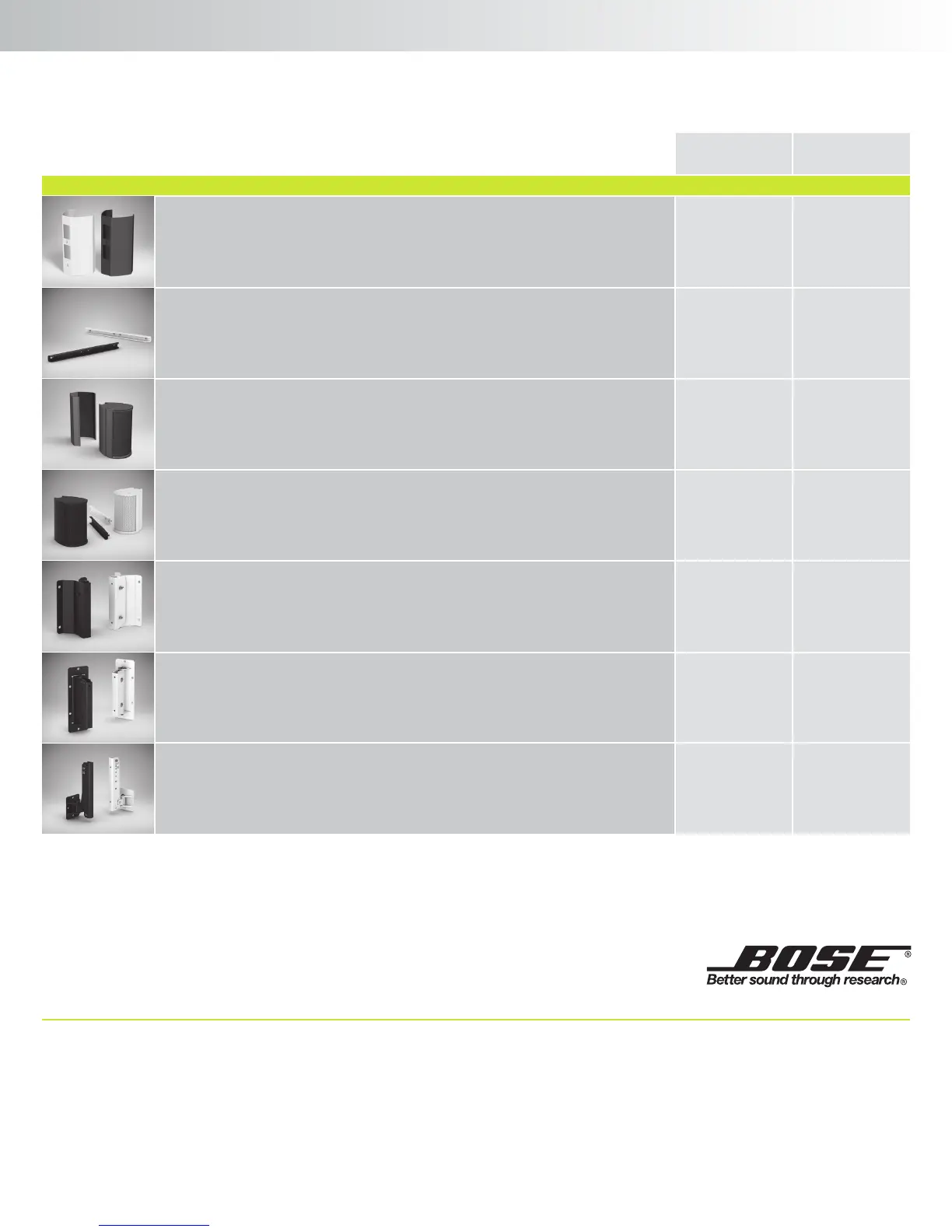

MA12 AND MA12EX LOUDSPEAKER ACCESSORIES
CB-MA12 Coupling Bracket
Coupling bracket for stacking multiple MA12 loudspeakers.
•
CB-MA12EX Coupling Bracket
Coupling bracket for stacking multiple MA12EX loudspeakers.
•
CVT-MA12 Transformer 70V/100V
Transformer for use with MA12 loudspeakers. Bracket included for coupling transformer to loudspeaker.
•
CVT-MA12EX Transformer 70V/100V
Transformer for use with MA12EX loudspeakers. Bracket included for coupling transformer to loudspeaker.
•
WB-MA12/MA12EX Pitch-Only Bracket
Bracket offers pitch adjustment for MA12 and MA12EX loudspeakers.
• •
WMB-MA12/MA12EX Bi-Pivot Bracket
Bracket offers pitch and yaw adjustment for MA12 and MA12EX loudspeakers.
• •
WMB2-MA12/MA12EX Pitch Lock Upper Bracket
Bracket offers 0-10° of pitch adjustment for the single or stacked MA12 and MA12EX loudspeakers.
This bracket is used along with the WB-MA12/MA12EX pitch-only or WMB-MA12/MA12EX bi-pivot brackets.
•
•
Bose Professional Systems Division
Design I Performance I Support
For more information about the Panaray
®
MA12 and MA12EX
Modular Line Array loudspeaker family, please visit:
pro.Bose.com
1) Articulated Array
®
loudspeaker technology produces wide, uniform sound coverage by angling every other driver within the
enclosure to create 160 degrees of horizontal coverage and consistent tonal balance.
2) Frequency Response and Range: Data is the average response in the typical coverage area with the recommended equalization applied.
3) Calculated Max SPL: Calculated based on input sensitivity with recommended equalization applied and maximum input power rating
exclusive of power compression.
4) Input Power Rating: Pink noise with a 6 dB crest factor is bandpass limited to the operating range of the loudspeaker and applied
for 100 hours.
5) Axial Sensitivity: Full-bandwidth pink noise with recommended equalization amplified to a level of 1 watt and applied to the
loudspeaker in an anechoic environment.
6) Vertical coverage varies by number of modules vertically arrayed and distance from line-source boundary. Use Modeler
®
software
for the best prediction.
7) 150W for full-range music and speech applications. Speech-only applications (155 Hz to 12 kHz), power handling (continuous)
at 300W/1200W.
©2009 Bose Corporation. All information subject to change without notice. C_007404

Bose Panaray MA12 Specifications

General

Product color	Black
Recommended usage	-
Driver diameter	64 mm
Number of drivers	12
Audio output channels	- channels
Mid-range driver diameter (imperial)	2.25 \
Impedance	8 Ω
Sensitivity	88 dB
Frequency range	100 - 16000 Hz
RMS rated power	300 W
Peak Music Power Output (PMPO)	1200 W
Bluetooth	No
Connectivity technology	Wired

Weight and Dimensions

Depth	128 mm
Width	105 mm
Height	984 mm
Weight	8500 g
