PRODUCT DESCRIPTION
SAFETY INFORMATION
Parts that have special safety characteristics are identifi ed by the symbol on schematics
or by special notes on the parts list. Use only replacement parts that have critical characteristics
recommended by the manufacturer.
Bose
®

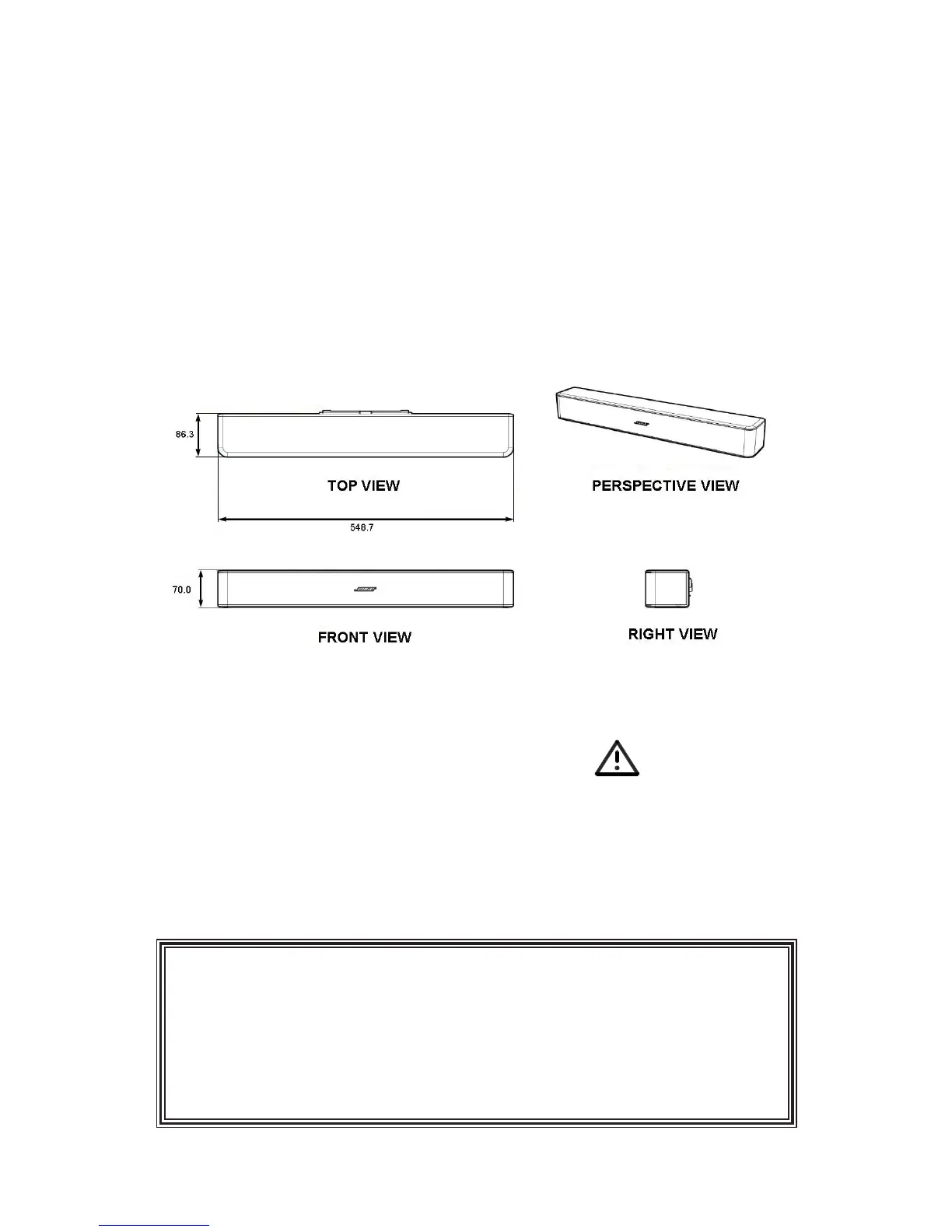

Solo 5 is a new audio product intended to sit in front of the TV and connect to the TV’s audio out.
In addition to TV audio playback, The Bose
Solo 5 will include Bluetooth
®
connectivity for music playback
from mobile devices.
The back panel includes a power connection, optical , coaxial, analog 3.5mm Aux in, USB connector (for
software updates), and a data connector (e.g. ETAP) for internal use only.
The front of the sound bar has two LEDs (white/green/(amber)/red) and (white/blue). The LED are used
to express power states, IR signal feedback, bass level, Bluetooth status.
PROPRIETARY INFORMATION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE
CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE
OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED
BOSE SERVICE CENTER, AND SHALL NOT BE REPRODUCED OR USED
FOR ANY OTHER PURPOSE.
CAUTION: The Bose
®
Solo 5 contains no user-serviceable parts. To prevent warranty infractions, refer
servicing to warranty service stations or factory service.
