Setup
Using the Pole-mount Insert with an S1 Pro
WARNING: The pole-mount M20 threaded insert on the Sub1 and Sub2 is designed to support a pole
of up to 1.3 meters (51 inches) with a Bose S1 Pro mounted on the pole. Do not use the Sub1 or Sub2
with a pole exceeding 1.3 meters (51 inches) in height or a loudspeaker weight that exceeds 7.1
kilograms (15.7 pounds). Using a pole/loudspeaker combination that exceeds either of these limits or
creates an unstable mounting scenario may lead to a hazardous condition that could result in injury.
The Sub1/Sub2 includes a pole-mount M20 threaded insert. The insert is compatible with the Bose Sub1/Sub2
Adjustable Speaker Pole accessory, designed for use with the Bose S1 Pro system (for more information, see
the Adjustable Speaker Pole owner's guide at PRO.BOSE.COM).

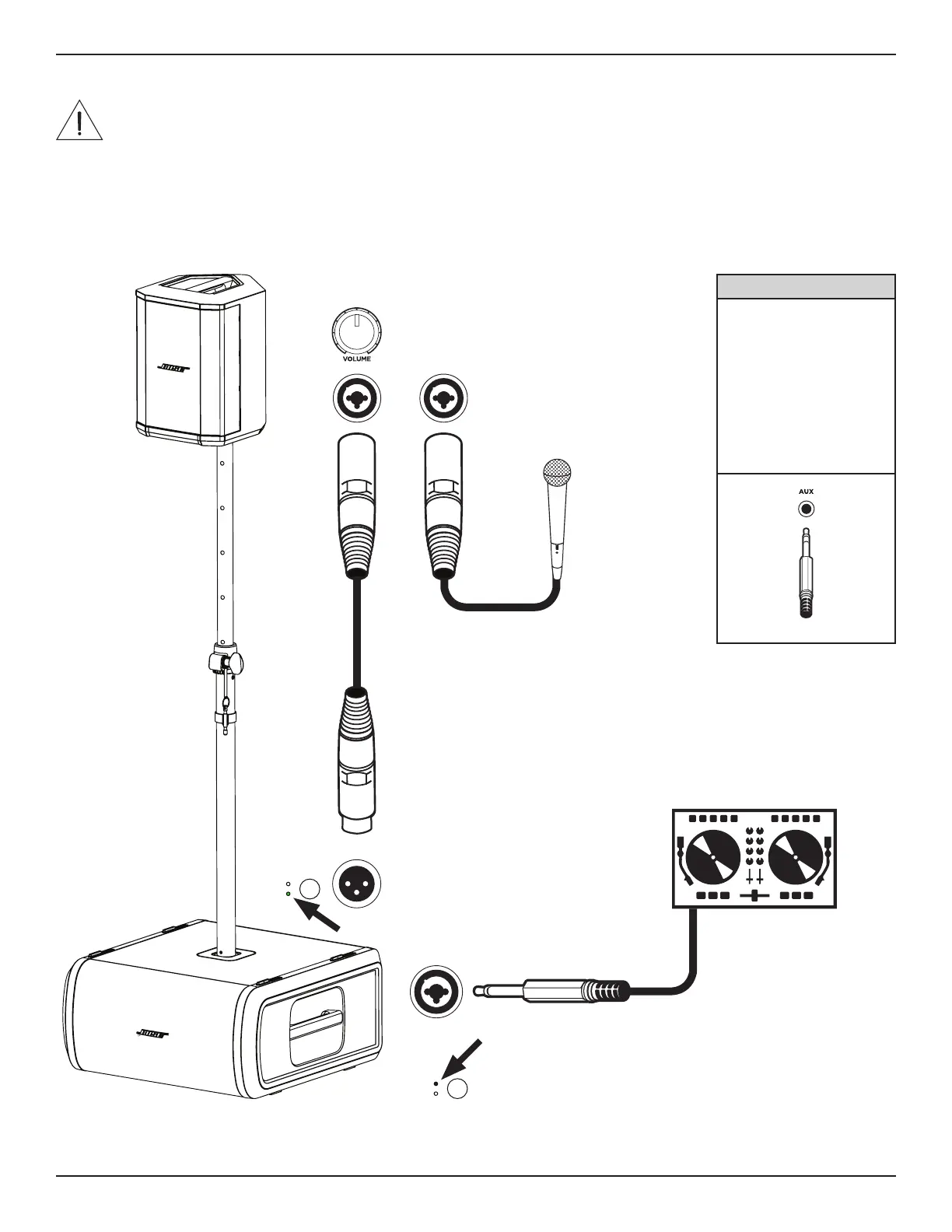

LINE OUT 1
INPUT
INPUT
LINE OUT EQ
FUL
L
HPF
LINE IN 1
LINE IN EQ
LP
F
L1
*Alternate Connection
This scenario requires a
specialized cable or adapter.
Connect a 3.5-millimeter (⅛-
inch) TRS cable to the Aux
Input of the S1 Pro. Channel3
of the S1 Pro is a pure line-
level input and can provide a
slightly wider range of volume
control of a line out signal
from a Sub1 or Sub2. The
Aux Input of the S1 Pro is an
unbalanced line-level input.
MUTE MUTE MUTE
INST INST
*
