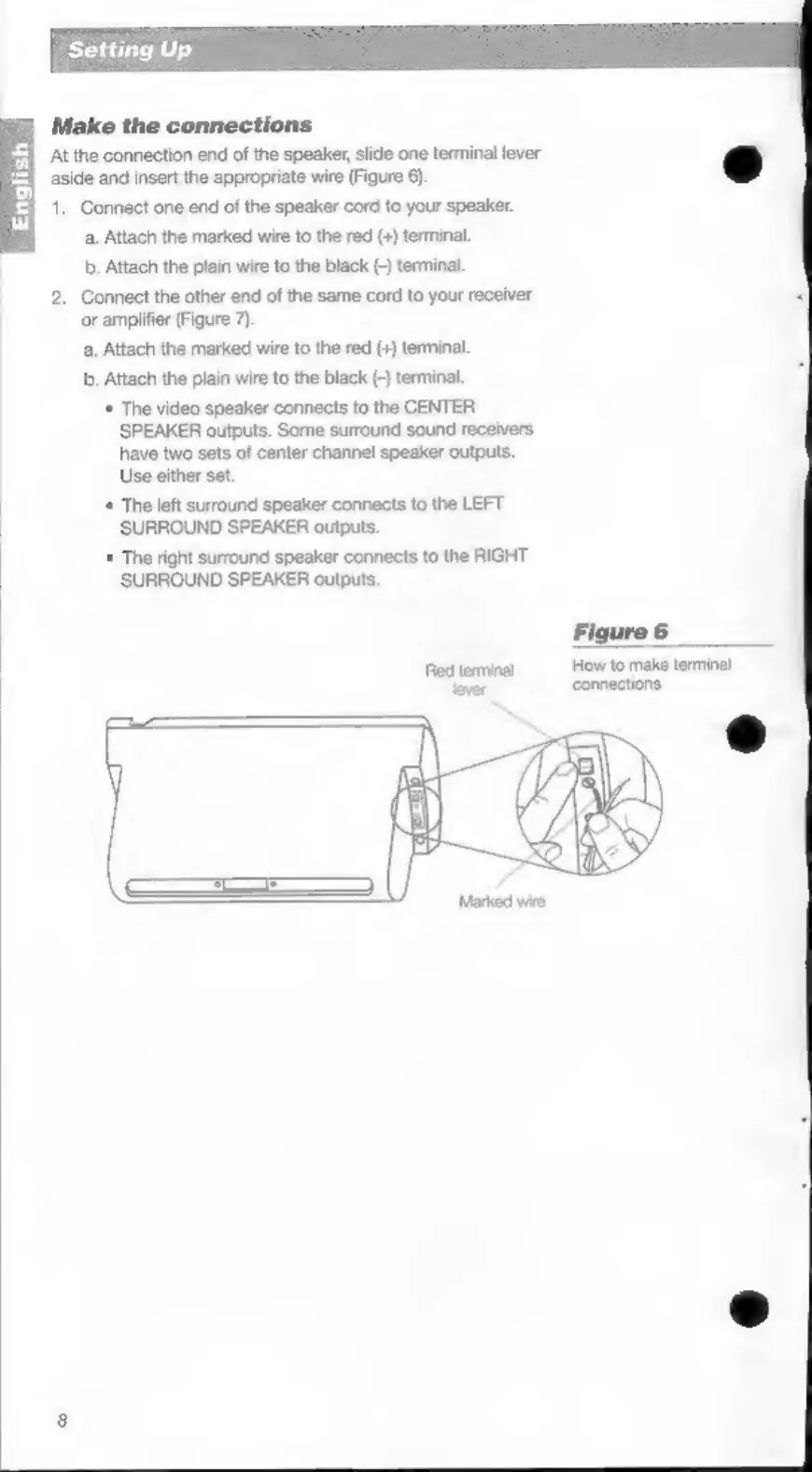

Setting Up
Make the connections
At
the
connection
end
of
the
speaker,
slide
one
terminal
lever
e
aside
and
insert
the
appropriate
wire
(Figure
6).
1. Connect one end of the speaker cord to your speaker.
a. Attach the marked wire to the red (4) terminal.
b. Attach the plain wire to the black (-) terminal.
2. Connect the other end of the same cord to your receiver
or amplifier (Figure 7).
a. Attach the marked wire to the red (+) terminal.
b. Attach the plain wire to the black (-) terminal.
* The video speaker connects to the CENTER
SPEAKER outputs. Some surround sound receivers
have two sets of center channel speaker outputs.
Use either set.
* The left surround speaker connects to the LEFT
‘SURROUND SPEAKER outputs.
*
The
right
surround
speaker
connects
to
the
RIGHT
SURROUND SPEAKER outputs.
Figure 6
Red tering) How to make terminal
lever connections
