Boss 752UAB - Wiring and Electrical Connections; Wiring Diagram Overview; ISO Connector Pinouts

14

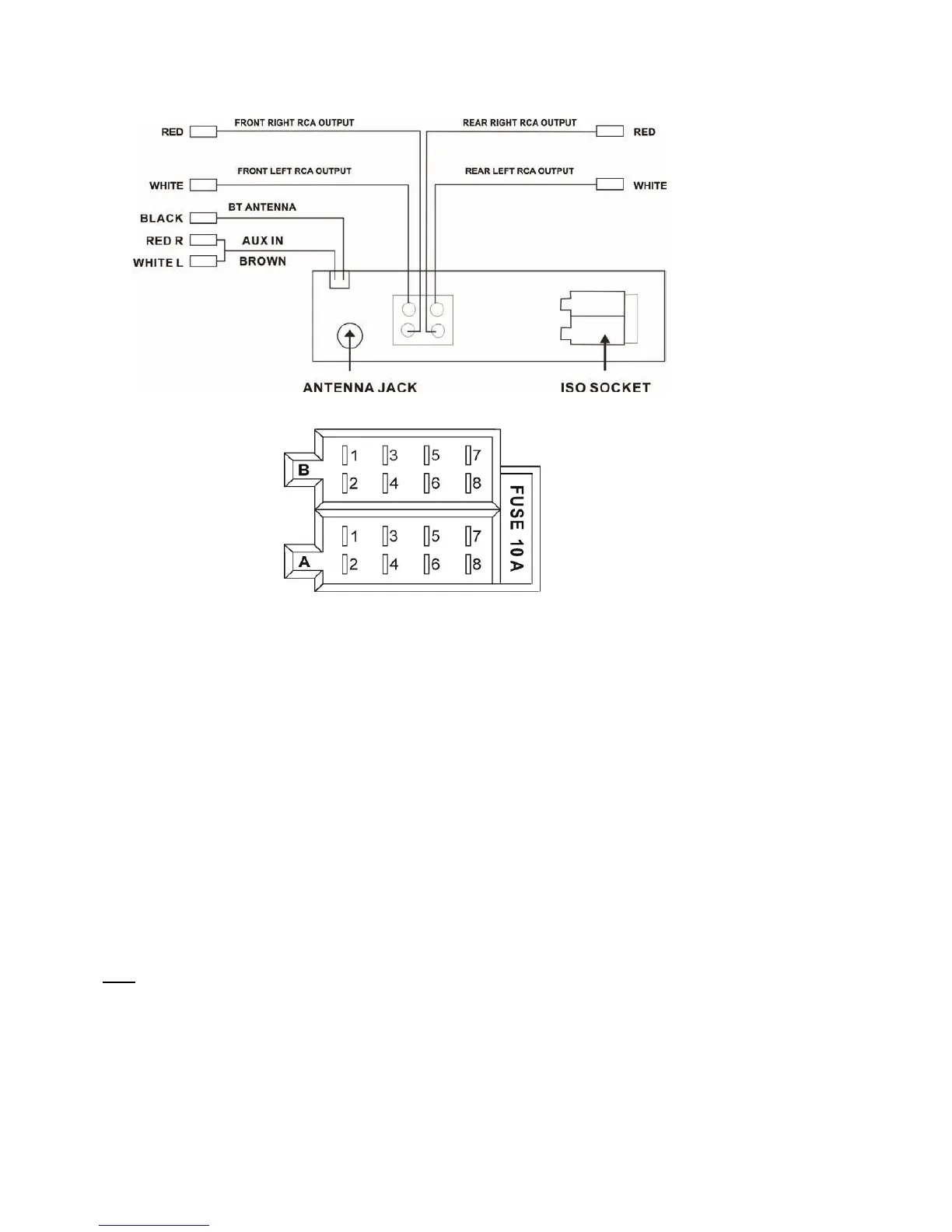

WIRING
FIXED ISO SOCKET SKETCH
Note
: IF YOUR CAR DOES NOT HAVE ISO CONNECTOR YOU CAN
PROCURE IT FROM ANY ACCESSORY SHOP
Important
IF FIXED-ISO CONNECTOR IS CUT, THE GUARANTEE WILL BE VOID.
FIXED ISO CONNECTOR A
1.
2.
3.
4.CONSTANT +12V DC
5. AUTO ANTENNA B+
6.
7. ACC +12V DC
8. GROUND
FIXED ISO CONNECTOR B
1. REAR RIGHT SPEAKER(+)
2. REAR RIGHT SPEAKER(-)
3. FRONT RIGHT SPEAKER(+)
4. FRONT RIGHT SPEAKER(-)
5. FRONT LEFT SPEAKER(+)
6. FRONT LEFT SPEAKER(-)
7. REAR LEFT SPEAKER(+)
8. REAR LEFT SPEAKER(-)
