Boss 820BRGB - Electrical Connections

Electrical Connections
- Only use speakers with 4 ohm impedance.
- The maximum current of the Amp Remote trigger is 200mA.

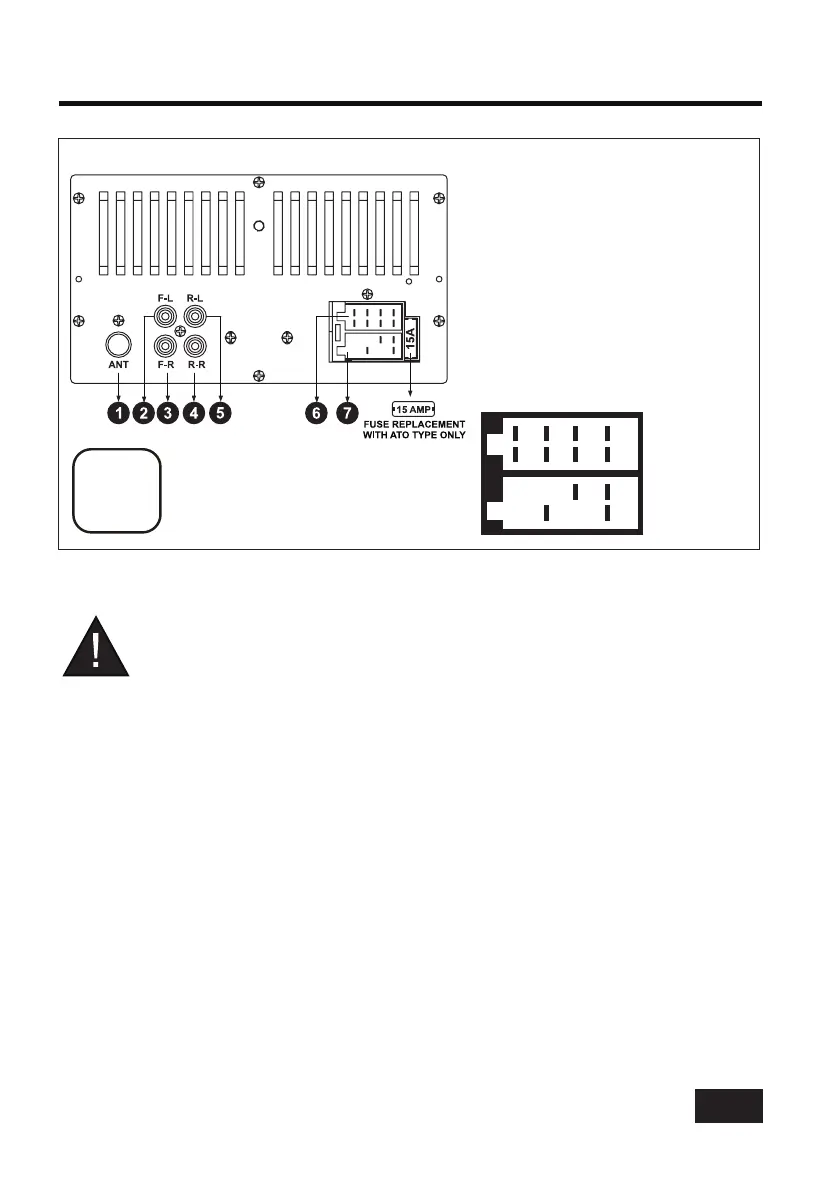

WIRING DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
3
RR+ RF+ LF+ LR+
RR- RF- LF- LR-
+ +
REM IGN
+ -
B GND
1. Radio antenna socket
2. Front left PRE-AMP output (White)
3. Front right PRE-AMP output (Red)
4. Rear right PRE-AMP output (Red)
5. Rear left PRE-AMP output (White)
6. ISO Socket:
8PIN connector
7. ISO Socket:
4PIN connector
