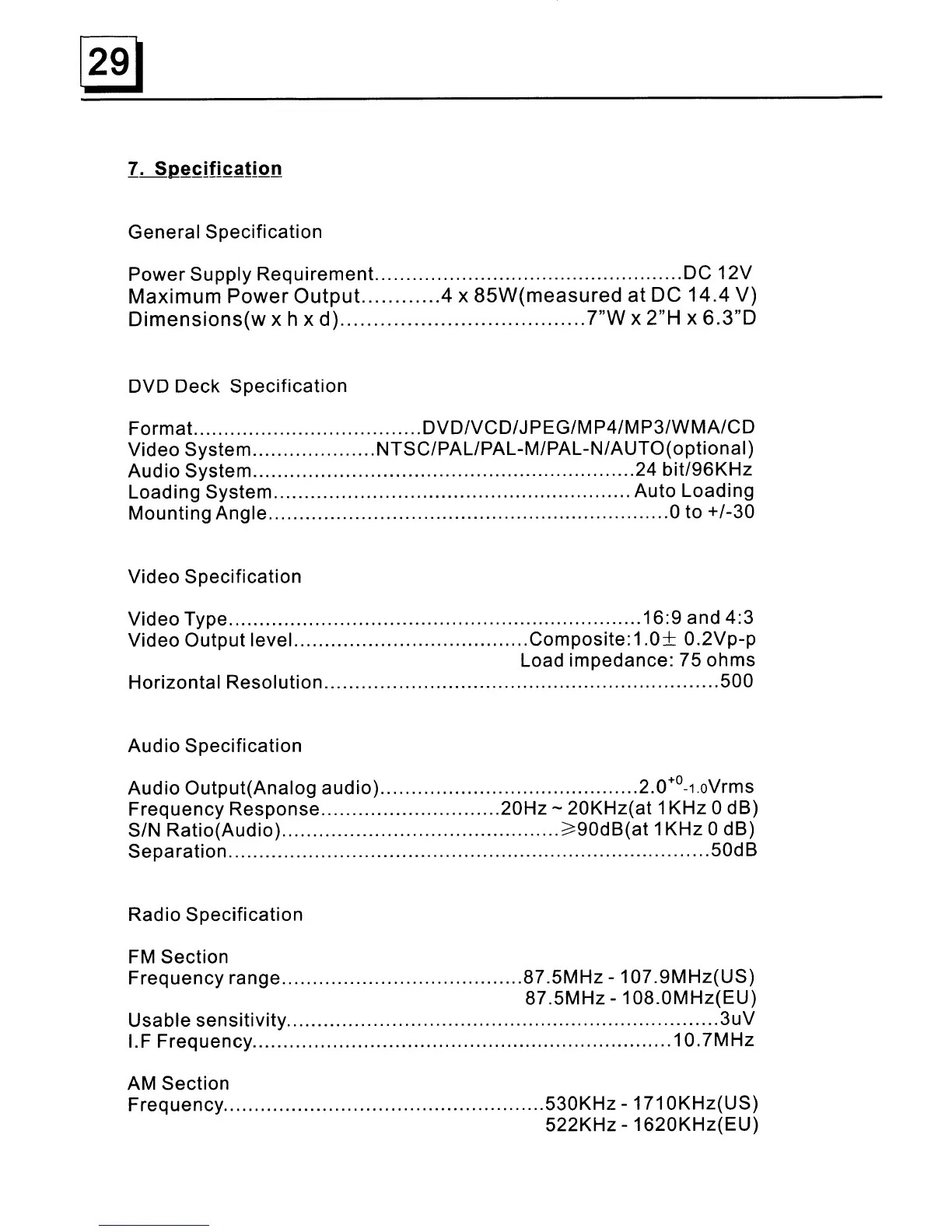

Boss BV9974B - Page 30

General Specification
Power Supply Requirement DC 12V
Maximum Power Output.. .4 x 85W(measured at DC 14.4 V)
Dimensions(w x h x d) 7"W x 2"H x 6.3"D
DVD Deck Specification
Format. DVD/VCD/JPEG/MP4/MP3/WMA/CD
Video System NTSC/PALIPAL-M/PAL-NIAUTO( optional)
Audio System 24 bit/96KHz
Loading System Auto Loading
Mounting Angle Oto +1-30
Video Specification
Video Type 16:9 and 4:3
Video Output level. Composite: 1.0+ 0.2Vp-p
Load impedance: 75 ohms
Horizontal Resolution 500
Audio Specification
Audio Output(Analog audio) 2.0+
o
-1.oVrms
Frequency Response 20Hz - 20KHz(at 1KHz 0 dB)
SIN Ratio(Audio) ?::90dB(at 1KHz 0 dB)
Separation 50dB
Radio Specification
FM Section
Frequency range 87.5MHz -107.9MHz(US)
87.5MHz - 108.0MHz(EU)
Usable sensitivity 3uV
I.F Frequency 10.7MHz
AM Section
Frequency 530KHz - 171 OKHz(US)
522KHz - 1620KHz(EU)
