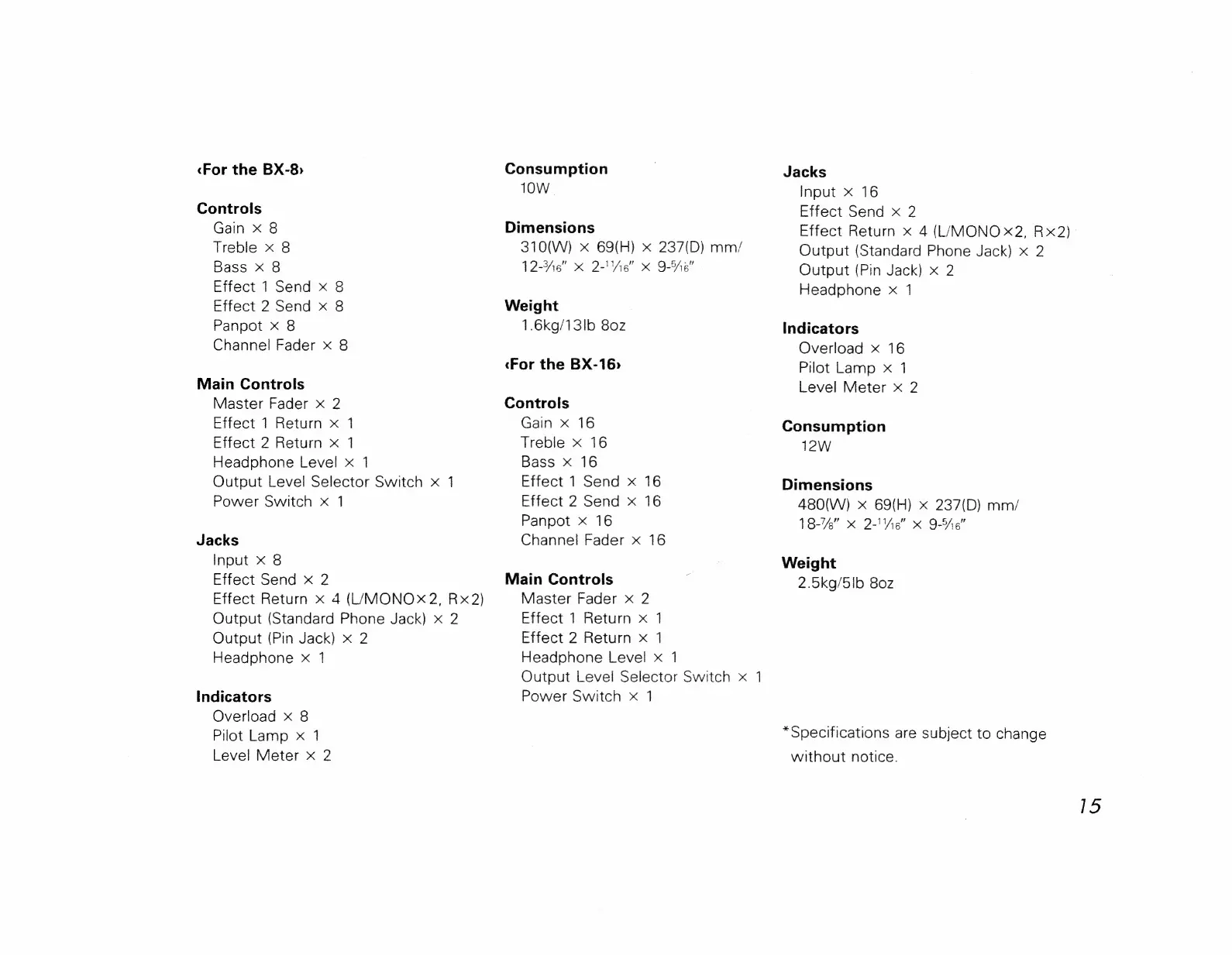

Boss BX-8 - Page 15

«For the BX-8
Controls
Gain x 8
Treble x 8
Bass xX 8
Effect 1 Send x 8
Effect 2 Send x 8
Panpot x 8
Channel Fader x 8
Main Controls
Master Fader x 2
Effect 1 Return x 1
Effect 2 Return x 1
Headphone Level x 1
Output Level Selector Switch x 1
Power Switch x 1
Jacks
Input x 8
Effect Send x 2
Effect Return x 4 (L/MONOX2, Rx2)
Output (Standard Phone Jack) x 2
Output (Pin Jack) x 2
Headphone xX 1
Indicators
Overload x 8
Pilot Lamp x 1
Level Meter x 2
Consumption
1OW.
Dimensions
310(W) x 69(H) x 237(D) mm/
12-He" «x 2-'V%e"” xk 9-ea”
Weight
1.6kg/13lb 80z
«For the BX-16>
Controls
Gain x 16
Treble x 16
Bass X 16
Effect 1 Send x 16
Effect 2 Send x 16
Panpot x 16
Channel Fader x 16
Main Controls
Master Fader x 2
Effect 1 Return x 1
Effect 2 Return x 1
Headphone Level x 1
Output Level Selector Switch x 1
Power Switch x 1
Jacks
Input x 16
Effect Send x 2
Effect Return x 4 (L/MONO x2, Rx2)
Output (Standard Phone Jack) x 2
Output (Pin Jack) x 2
Headphone x 1
Indicators
Overload x 16
Pilot Lamp x 1
Level Meter x 2
Consumption
12W
Dimensions
480(W) x 69(H) x 237(D) mm/
18-74" K 2-"Ve" K 9-6”
Weight
2.5kg/5Ib 80z
*Specifications are subject to change
without notice.
