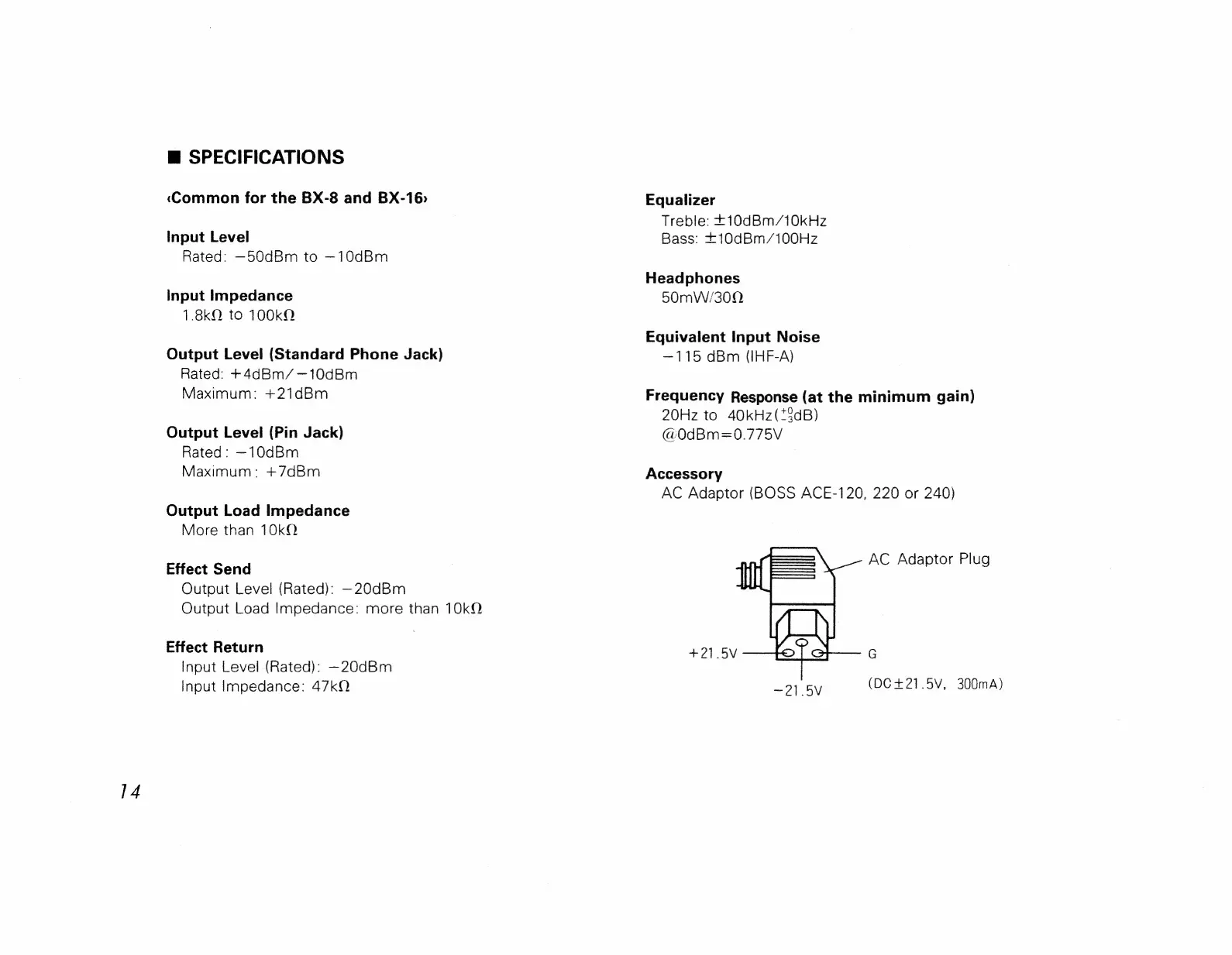

@ SPECIFICATIONS
«Common for the BX-8 and BX-16
Input Level
Rated: —50dBm to —10dBm
Input Impedance
1.8kQ to 100kQ
Output Level (Standard Phone Jack)
Rated: +4dBm/—10dBm
Maximum: +21dBm
Output Level (Pin Jack)
Rated: —10dBm
Maximum: +7dBm
Output Load Impedance
More than 10kQ
Effect Send
Output Level (Rated): —20dBm
Output Load Impedance: more than 10kO
Effect Return
Input Level (Rated): —20dBm
Input Impedance: 47kO
14
Equalizer
Treble: £10dBm/10kHz
Bass: +10dBm/100Hz
Headphones
50mW/300
Equivalent Input Noise
—115 dBm (|HF-A)
Frequency Response (at the minimum gain)
20Hz to 40kHz(*5dB)
@OdBm=0.775V
Accessory
AC Adaptor (BOSS ACE-120, 220 or 240)
AC Adaptor Plug
#215 G
