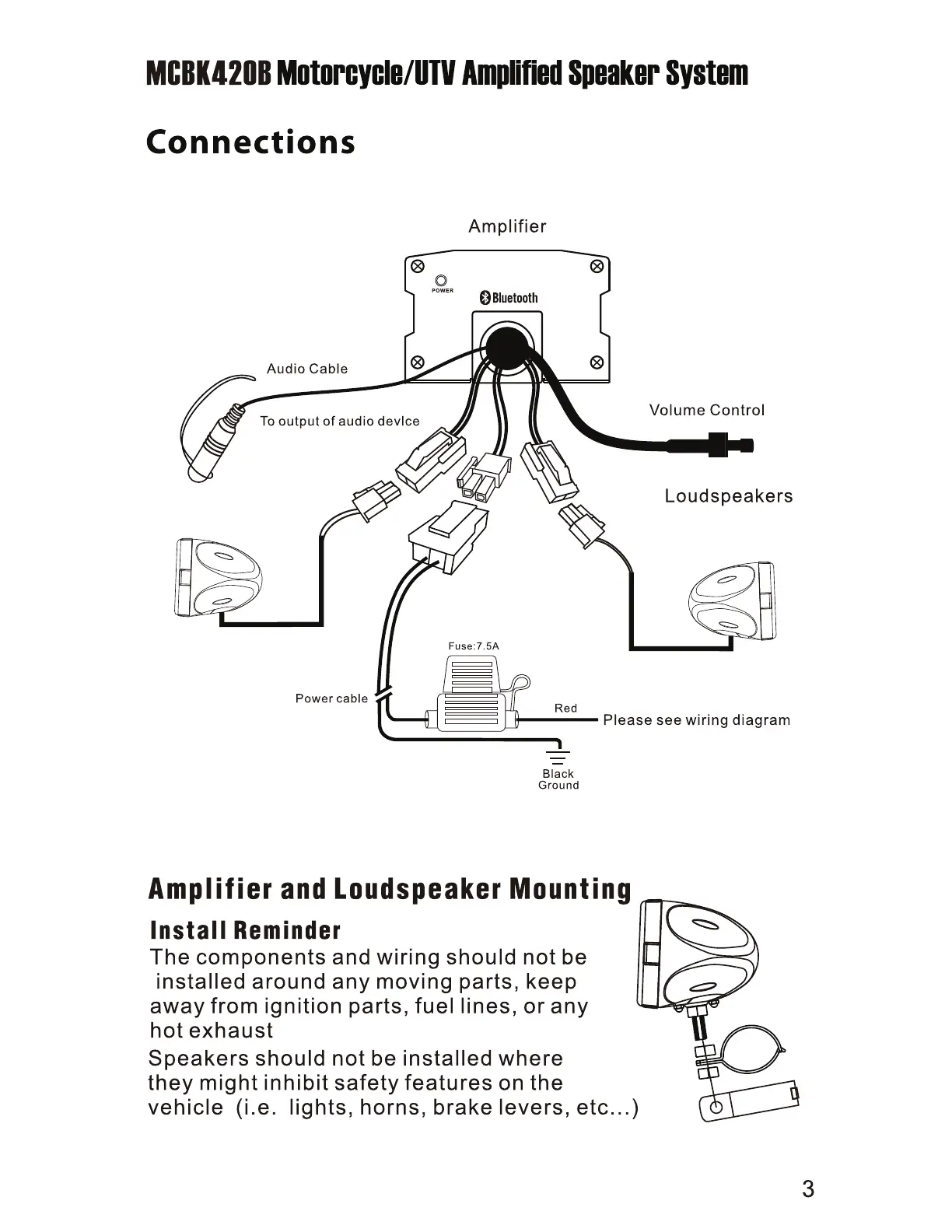

MCBK42DB Motorcycle/DIV Amplified Speaker System
Connections
Amplifier
Audio Cable
Volume Control
Loudspeakers
Power cable
Red
1 ...... -- Please see wir ing di agram
Black
Ground
Amplifier and Loudspeaker Mounting_,.= __
Install Reminder
The components and wiring should not be
installed around any moving parts, keep
away from ignition parts, fuel lines, or any
hot exhaust
Speakers should not be installed where
they might inhibit safety features on the
vehicle (i.e. lights, horns, brake levers, etc . .. )
3
