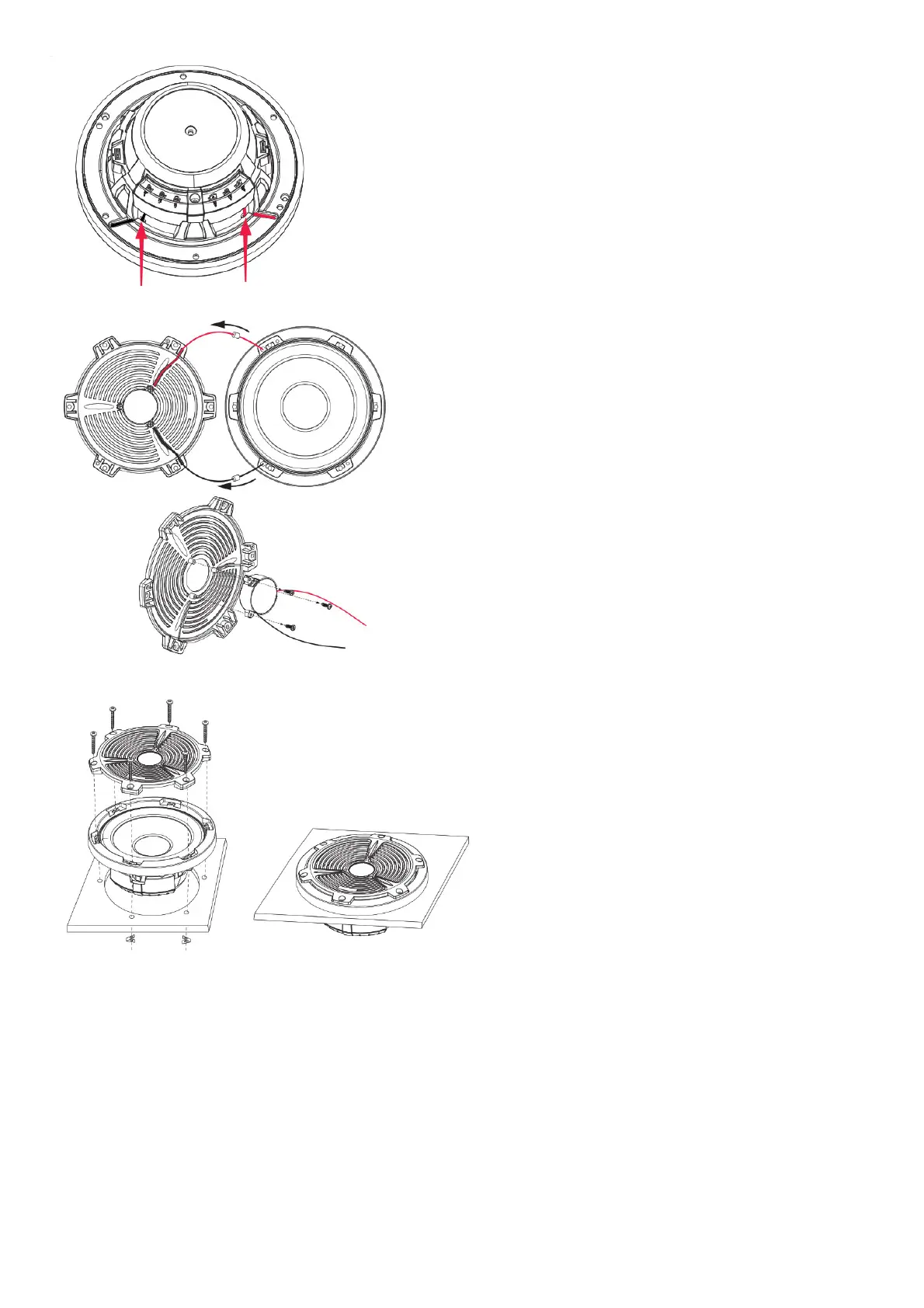

With the speaker facing down, gently pull the red and black tweeter wires (red arrows below) from the bottom of the speaker. Remove the wires from the groove.
STEP2.
The speaker grill is removable. Pull the grill up slowly then the red and black tweeter wires will be pulled out with rubber plugs from the speaker unit. Put the grill upside down and unscrew
the three screws around the tweeter cover. Pull the wires out of the grooves then the tweeter can be removed completely.
STEP3.
Place the grill back on to the speaker and fasten with the provided screws.
STEP4.
As shown below, surface mount the tweeter.
