Boss RT1 - Boss Rt1 Mounting

BOSS RT1 MOUNTING
• There are 2 slotted mounting rails that must be used to
mount the tent.
• Use 8 M8 bolts (4 on each side) to secure the tent to
your mounts.
• Ensure your mounts are adequite and hardware is tight.
0985-08-RTT
Title
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
A
B
C
D
E
F
A
B
C
D
E
F
0985-08-RTT
Size
0985-08-RTT
Project
Title
Checked
A3
Sheet 1
Rev.
Date
Dwg No.
THIRD ANGLE
PROJECTION
D.W.
9/07/2020
11:05 AM
Drawn
Scale
1:10
A
D.W
BOSS
ALUMINIUM
This drawing remains the property of
Boss Aluminium P/L and must not be
copied or reproduced in any way or form
without the written consent of Boss
Aluminium P/L
COPYRIGHT 2020
Factory 8/208 Canterbury road Bayswater north
Victoria3153 Ph:03-9729-3092 Fax:03-9729-3263
AD
AD
1060.0
1060.0
1453.4
1512.7
1816.3
AEAE
351.6
269.1
40
2306.4
2383.6

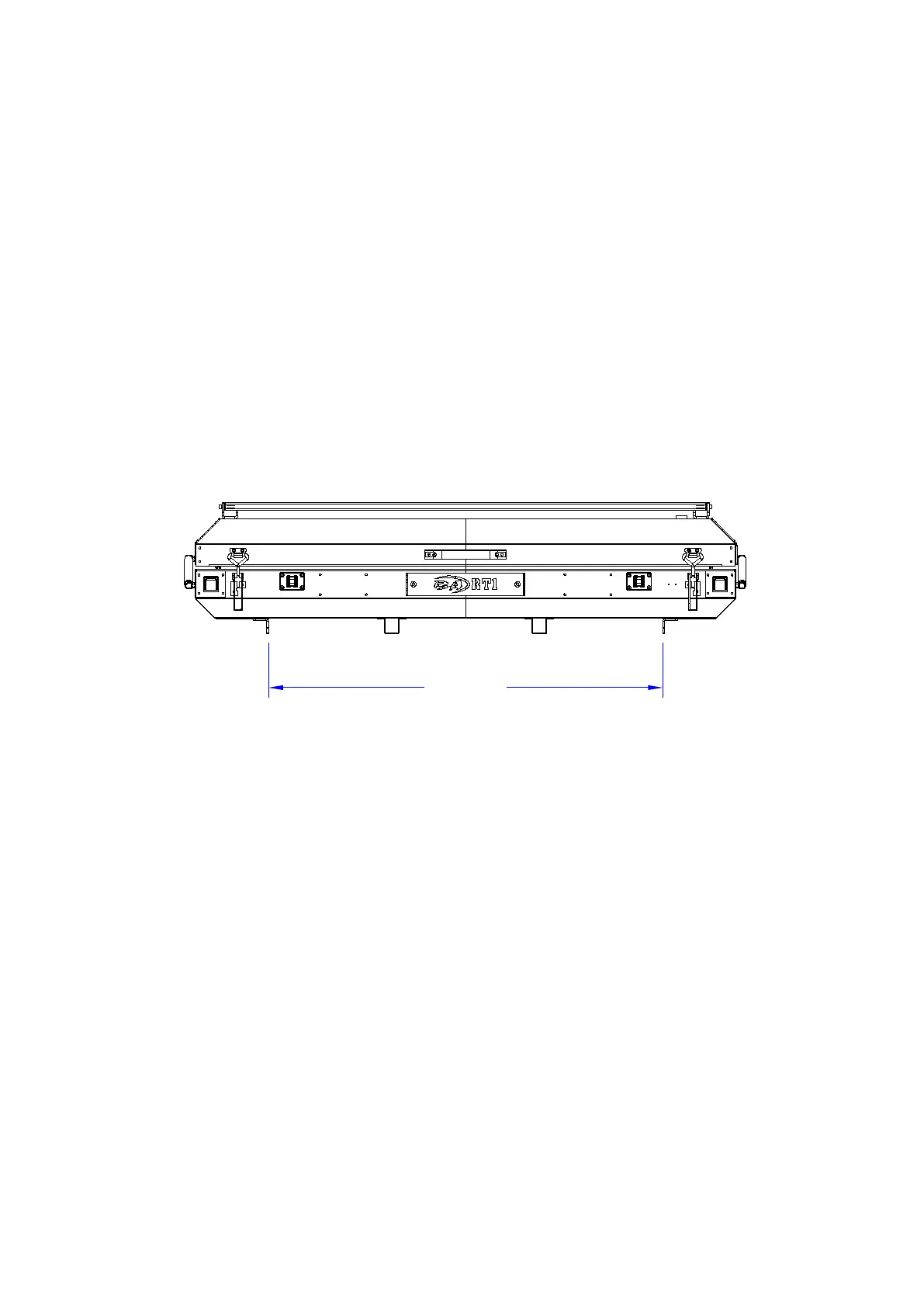

REAR VIEW
TOP VIEW
R/H SIDE VIEW
FRONT VIEW
INSIDE RAILS
SLOTED MOUNTING RAIL
OUTSIDE BODY
INSIDE MOUNTS
OVERALL INC GAS STRUTS
OPEN
CLOSED
