Boss RV-2 User Manual

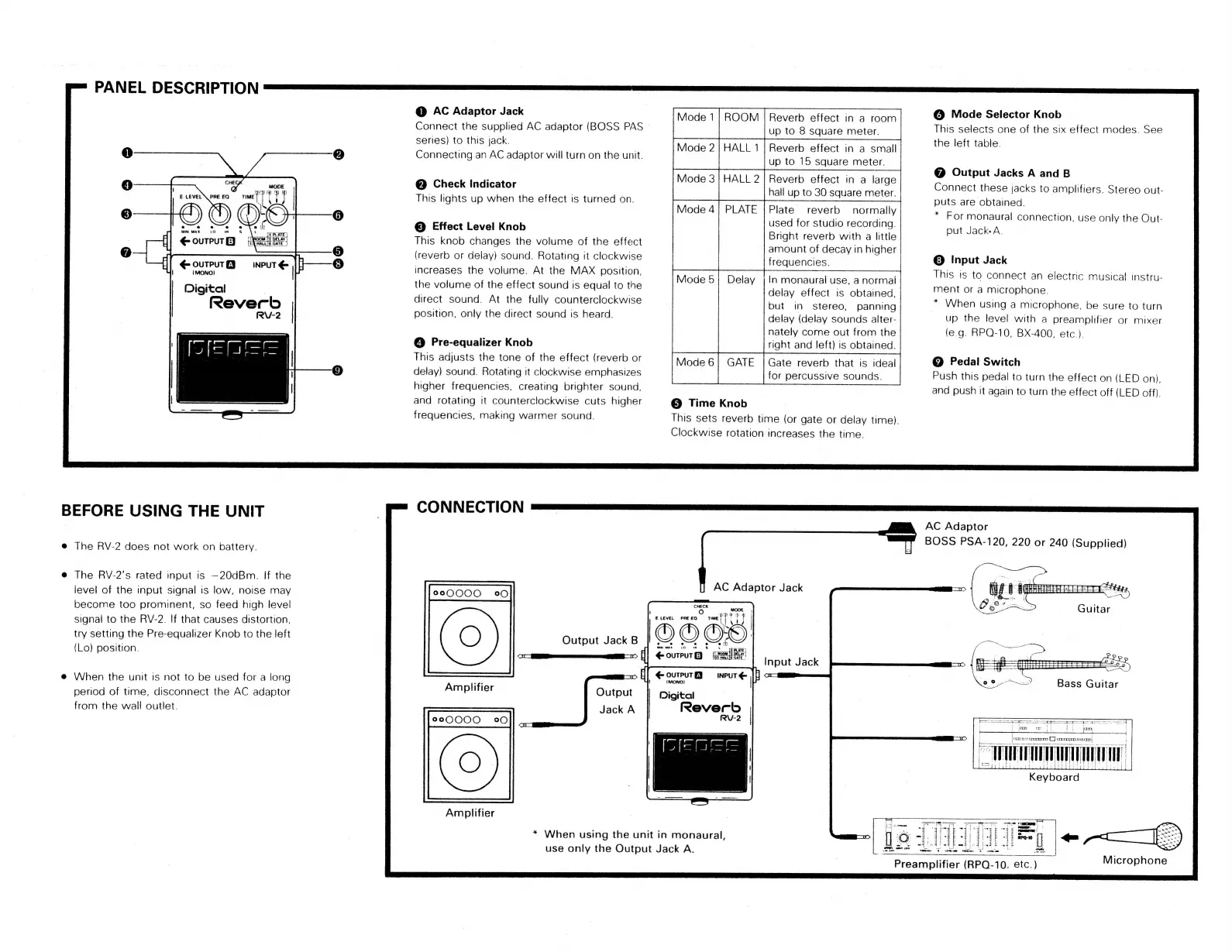

PANEL DESCRIPTION
E. LEVEL \ PRE EQ
Time {.
e e e
MIM MAX Lo HE $s
€ output G}
€ output
(MONO)
Digital
Reverb
RV-2
|
BEFORE USING THE UNIT
e The RV-2 does not work on battery.
e The RV-2's rated input is —20dBm. If the
level of the input signal is low, noise may
become too prominent, so feed high level
signal to the RV-2. If that causes distortion,
try setting the Pre-equalizer Knob to the left
(Lo) position.
@ When the unit is not to be used for a long
period of time, disconnect the AC adaptor
from the wall outlet.
@ AC Adaptor Jack
Connect the supplied AC adaptor (BOSS PAS »
series) to this jack.
Connecting an AC adaptor will turn on the unit.
@ Check Indicator
This lights up when the effect is turned on.
© Effect Level Knob
This knob changes the volume of the effect
(reverb or delay) sound. Rotating it clockwise
increases the volume. At the MAX position,
the volume of the effect sound is equal to the
direct sound. At the fully counterclockwise
position, only the direct sound is heard.
@ Pre-equalizer Knob
This adjusts the tone of the effect (reverb or
delay) sound. Rotating it clockwise emphasizes
higher frequencies, creating brighter sound,
and rotating it counterclockwise cuts higher
frequencies, making warmer sound.
CONNECTION
SP0O000 0°
Output Jack B
Amplifier
“gfe ‘ '
Output
Jack A
SP0OO0O00 70
Amplifier
* When using the unit in monaural,
use only the Output Jack A.
Mode 1} ROOM | Reverb effect in a room
up to 8 Square meter.
Mode 2} HALL 1 | Reverb effect in a small
up to 15 square meter.
ee HALL 2 | Reverb effect in a large
hall up to 30 square meter.
ini PLATE | Plate reverb normally
used for studio recording.
Bright reverb with a little
amount of decay in higher
frequencies.
Mode 5| Delay | In monaural use, a normal
delay effect is obtained,
but in stereo, panning
delay (delay sounds alter-
nately come out from the
right and left) is obtained.
Mode 6| GATE | Gate reverb that is ideal
for percussive sounds.
© Time Knob
This sets reverb time (or gate or delay time).
Clockwise rotation increases the time.
|} AC Adaptor Jack
a
E.LEVEL PRE a
lore
€ output @} = inpuTe fi
(MONO) |
Input Jack
Digital
©@ Mode Selector Knob
This selects one of the six effect modes. See
the left table.
@ Output Jacks A and B
Connect
these
jacks
to
amplifiers.
Stereo
out-
puts are obtained.
* For monaural connection, use only the Out-
put Jack-A.
© Input Jack
This
is
to
connect
an
electric
musical
instru-
ment or a microphone.
7
When
using
a
microphone,
be
sure
to
turn
up the level with a preamplifier or mixer
(eg. RPQ-10, BX-400, etc).
© Pedal Switch
Push
this
pedal
to
turn
the
effect
on
(LED
on),
and
push
it
again
to
turn
the
effect
off
(LED
off).
AC Adaptor
BOSS PSA-120, 220 or 240 (Supplied)
omremietars at aaa eves ses meena
Li je |
jap oo unseat C]« LS Sob io a) oor
TTT wv
“Preamplifier (RPO. 10, etc. )
Miefophone
