Feb, 1996
SX-700

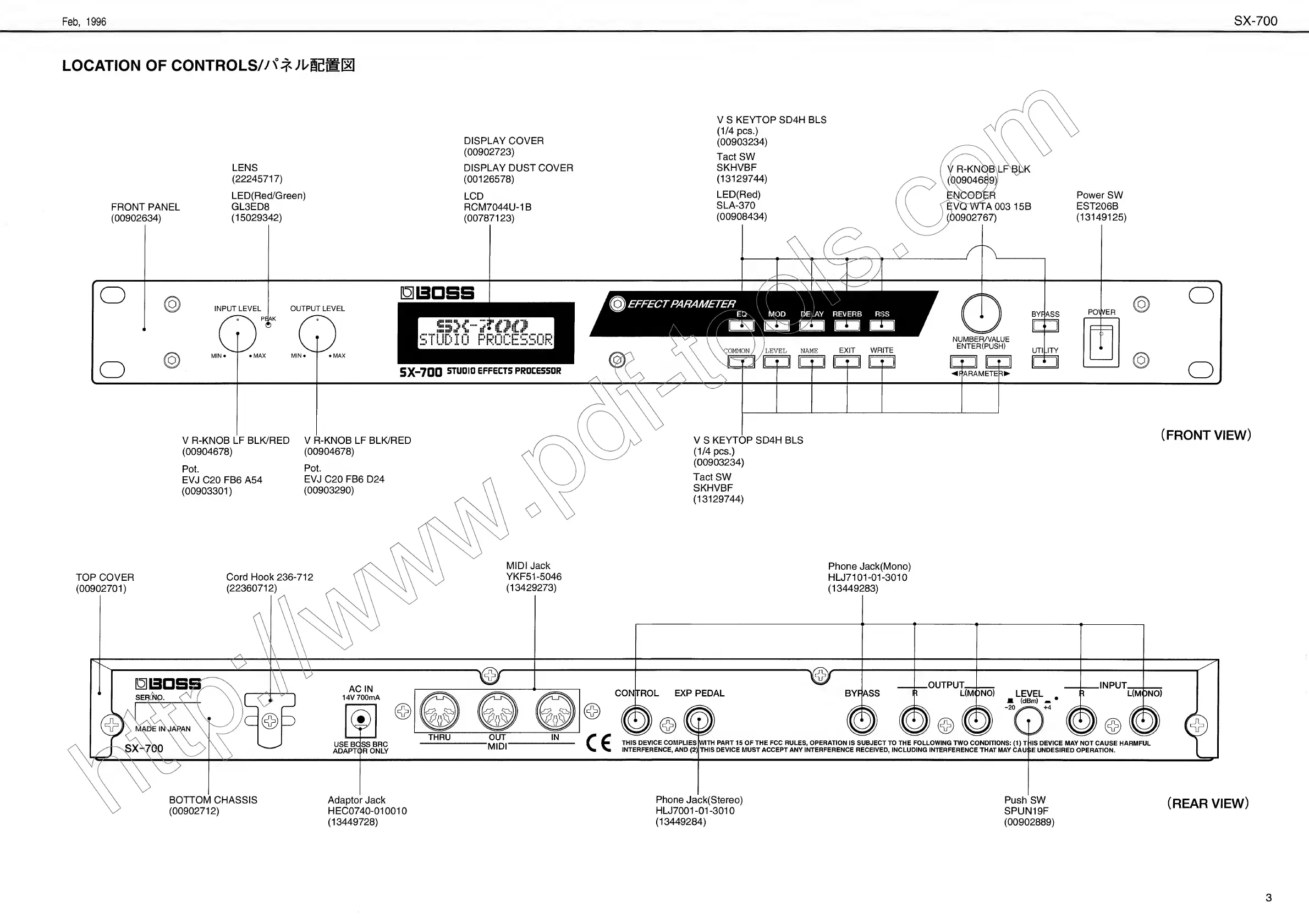

LOCATION OF CONTROLS//HSU®
FRONT PANEL
(00902634)
LENS
(22245717)
LED(Red/Green)
GL3ED8
(15029342)
DISPLAY COVER
(00902723)
DISPLAY DUST COVER
(00126578)
LCD
RCM7044U-1B
(00787123)
o
INPUT LEVEL
OUTPUT LEVEL
o
V R-KNOB LF BLK/RED
(00904678)
Pot.
EVJ C20 FB6 A54
(00903301)
5X-700 STUDIO EFFECTS PROCESSOR
V R-KNOB LF BLK/RED
(00904678)
Pot.
EVJ C20 FB6 D24
(00903290)
TOP COVER
(00902701)
Cord Hook 236-712
(22360712)
MIDI Jack
YKF51-5046
(13429273)
BOSS
i No
V S KEYTOP SD4H BLS
(1/4 pcs.)
(00903234)
Tact SW
SKHVBF
(13129744)
LED(Red)
SLA-370
(00908434)
# EFFECT PARAMETER
k
V S KEYTOP SD4H BLS
(1/4 pcs.)
(00903234)
Tact SW
SKHVBF
(13129744)
Phone Jack(Mono)
HLJ7101-01-3010
(13449283)
TROL EXP PEDAL
THIS DEVICE COMPLIES
INTERFERENCE, AND (2)1
WITH PART 15 OF THE FCC RULES, OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Power SW
EST206B
(13149125)
O
o
(FRONT VIEW)
BYPASS
.OUTPUT.
L(M<b
NO) LEVEL
M (dBm) _
BOTTOM CHASSIS
(00902712)
Adaptor Jack
HEC0740-010010
(13449728)
Phone Jack(Stereo)
HLJ7001-01-3010
(13449284)
JNPUT.
L(MONO)
fa
Push SW
SPUN19F
(00902889)
(REAR VIEW)
3
