Boss SX-700 - Page 3

SX-700
Feb, 1996

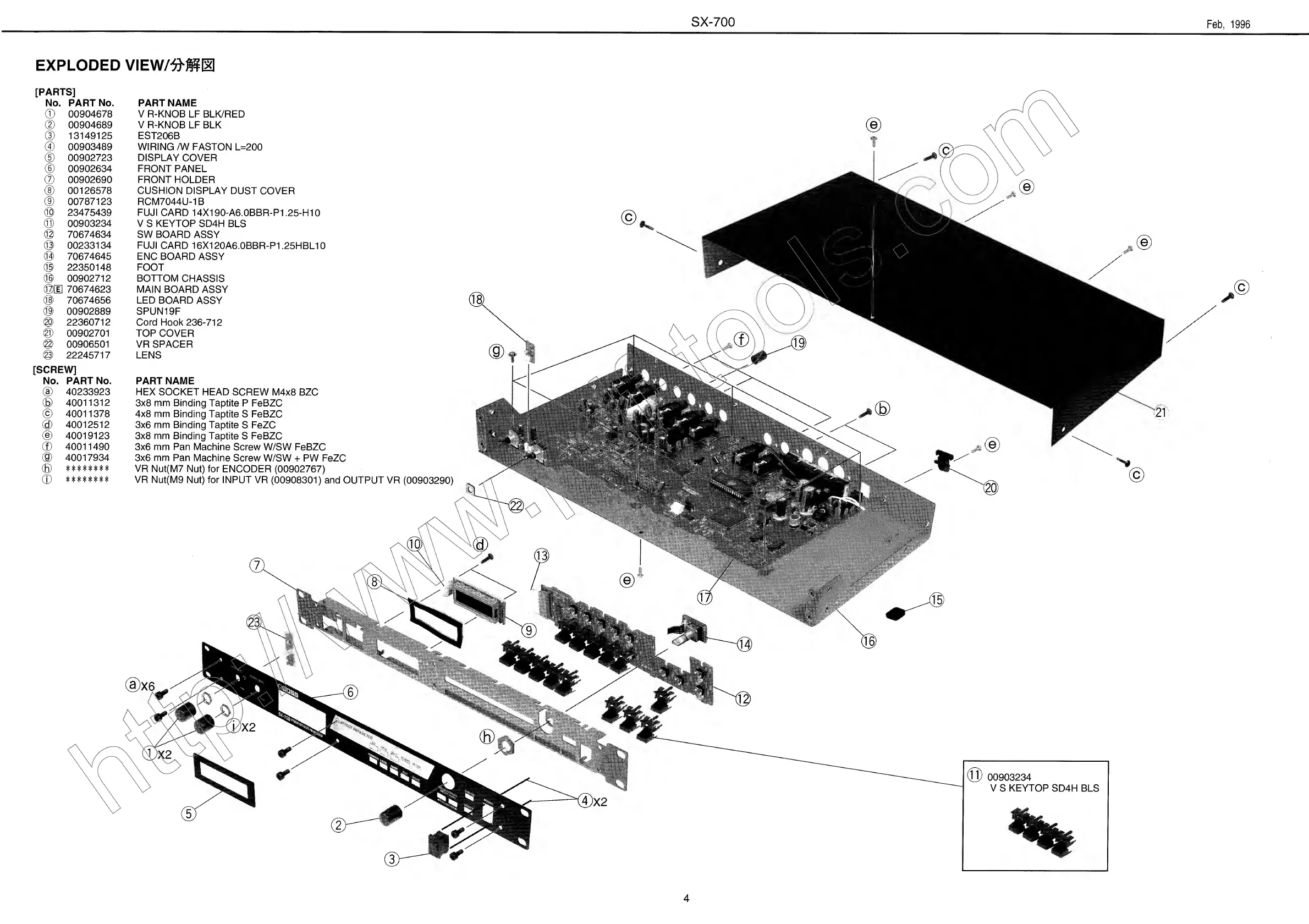

EXPLODED VIEW/#*B
[PARTS]
No. PART No.
©
00904678
©
00904689
(D
13149125
00903489
©
00902723
©
00902634
©
00902690
©
00126578
©
00787123
©
23475439
©
00903234
©
70674634
©
00233134
©
70674645
©
22350148
©
00902712
©m 70674623
©
70674656
©
00902889
©
22360712
©
00902701
00906501
©
22245717
[SCREW]
No.
PART No.
©
40233923
(5)
40011312
©
40011378
©
40012512
©
40019123
©
40011490
@
40017934
©
* * * * * * * *
©
********
PART NAME
V R-KNOB LF BLK/RED
V R-KNOB LF BLK
EST206B
WIRING /W FASTON L=200
DISPLAY COVER
FRONT PANEL
FRONT HOLDER
CUSHION DISPLAY DUST COVER
RCM7044U-1B
FUJI CARD 14X190-A6.0BBR-P1.25-H10
V S KEYTOP SD4H BLS
SW BOARD ASSY
FUJI CARD 16X120A6.0BBR-P1.25HBL10
ENC BOARD ASSY
FOOT
BOTTOM CHASSIS
MAIN BOARD ASSY
LED BOARD ASSY
SPUN19F
Cord Hook 236-712
TOP COVER
VR SPACER
LENS
PART NAME
HEX SOCKET HEAD SCREW M4x8 BZC
3x8 mm Binding Taptite P FeBZC
4x8 mm Binding Taptite S FeBZC
3x6 mm Binding Taptite S FeZC
3x8 mm Binding Taptite S FeBZC
3x6 mm Pan Machine Screw W/SW FeBZC
3x6 mm Pan Machine Screw W/SW + PW FeZC
VR Nut(M7 Nut) for ENCODER (00902767)
VR Nut(M9 Nut) for INPUT VR (00908301) and OUTPUT VR (00903290)
© 00903234
V S KEYTOP SD4H BLS
At-
4
