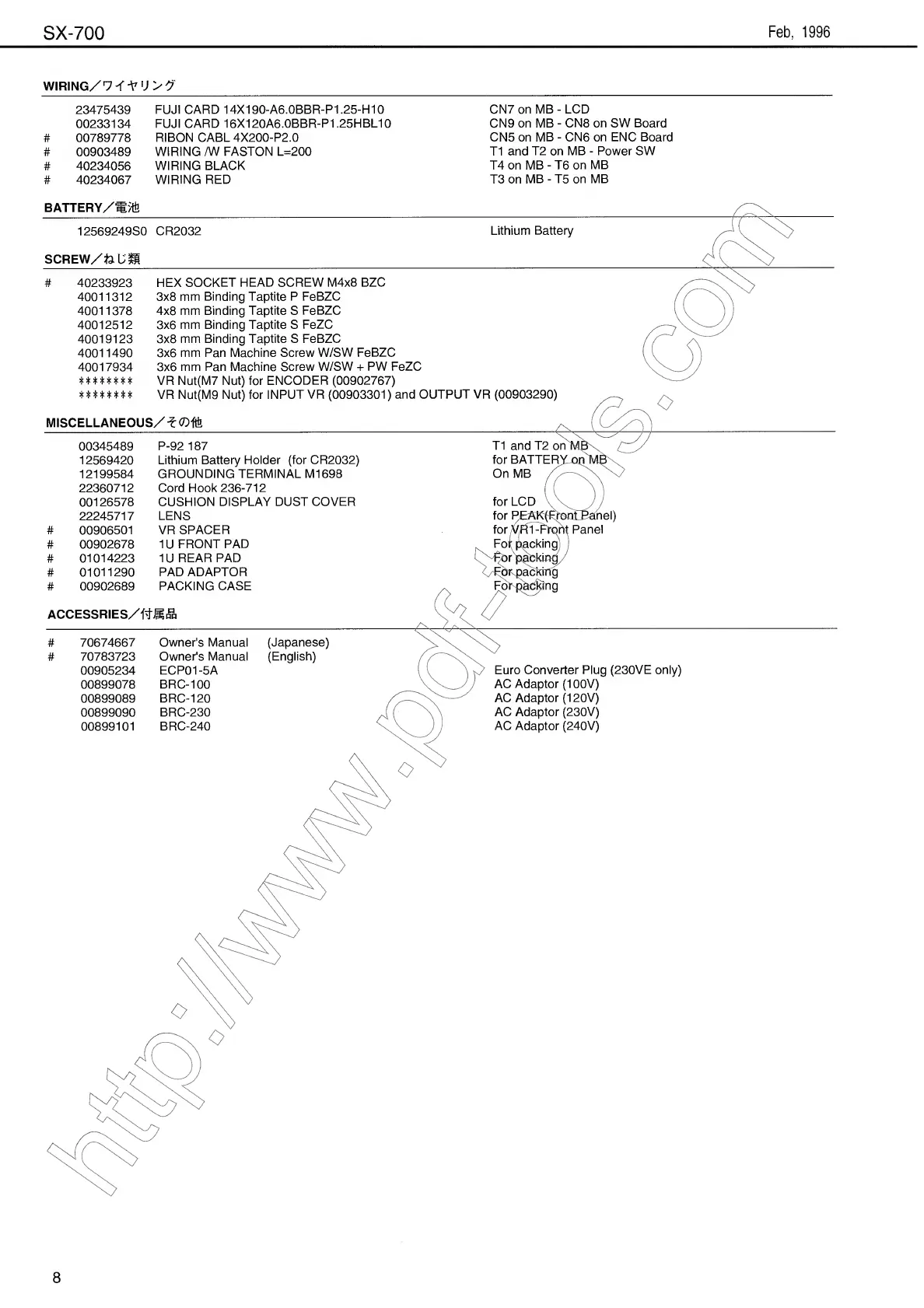

Boss SX-700 - Page 7

SX-700
Feb, 1996
WIRING/7<-VU>?
23475439
00233134
# 00789778
# 00903489
# 40234056
# 40234067
FUJI CARD 14X190-A6.0BBR-P1.25-H10
FUJI CARD 16X120A6.0BBR-P1.25HBL10
RIBON CABL 4X200-P2.0
WIRING /W FASTON L=200
WIRING BLACK
WIRING RED
CN7 on MB - LCD
CN9 on MB - CN8 on SW Board
CN5 on MB - CN6 on ENC Board
T1 and T2 on MB - Power SW
T4 on MB - T6 on MB
T3 on MB - T5 on MB
BATTERY/®)^
12569249S0
CR2032
Lithium Battery
A ^
SCREW/ fo DU
cCx>
# 40233923 HEX SOCKET HEAD SCREW M4x8 BZC
40011312 3x8 mm Binding Taptite P FeBZC
40011378 4x8 mm Binding Taptite S FeBZC
40012512 3x6 mm Binding Taptite S FeZC
40019123 3x8 mm Binding Taptite S FeBZC
40011490 3x6 mm Pan Machine Screw W/SW FeBZC
40017934 3x6 mm Pan Machine Screw W/SW + PW FeZC
* * * * * * * * VR Nut(M7 Nut) for ENCODER (00902767)
* * * * * * * * VR Nut(M9 Nut) for INPUT VR (00903301) and OUTPUT VR (00903290)
MISCELLANEOUS/f ,
00345489
P-92 187
T1 and T2 on MB
12569420
Lithium Battery Holder (for CR2032)
for BATTERY, on MB
12199584
GROUNDING TERMINAL M1698
On MB
22360712
Cord Hook 236-712
( (
00126578
CUSHION DISPLAY DUST COVER for LCD V
22245717 LENS
for ^EAK(Front Panel)
# 00906501
VR SPACER
for VR1-Front Panel
# 00902678
1U FRONT PAD
For packing j
# 01014223
1U REAR PAD
For packing
# 01011290
PAD ADAPTOR
/For packing
# 00902689 PACKING CASE
PpNR^fng
ACCESSRIES/#Jj
70674667
70783723
00905234
00899078
00899089
00899090
00899101
Owner's Manual
Owner's Manual
ECP01-5A
BRC-100
BRC-120
BRC-230
BRC-240
(Japanese)
(English)
Euro Converter Plug (230VE only)
AC Adaptor (100V)
AC Adaptor (120V)
AC Adaptor (230V)
AC Adaptor (240V)
8
