Implantovateľný generátor impulzov
Implantovateľný generátor impulzov
91053242-08 Rev A 240 z 279

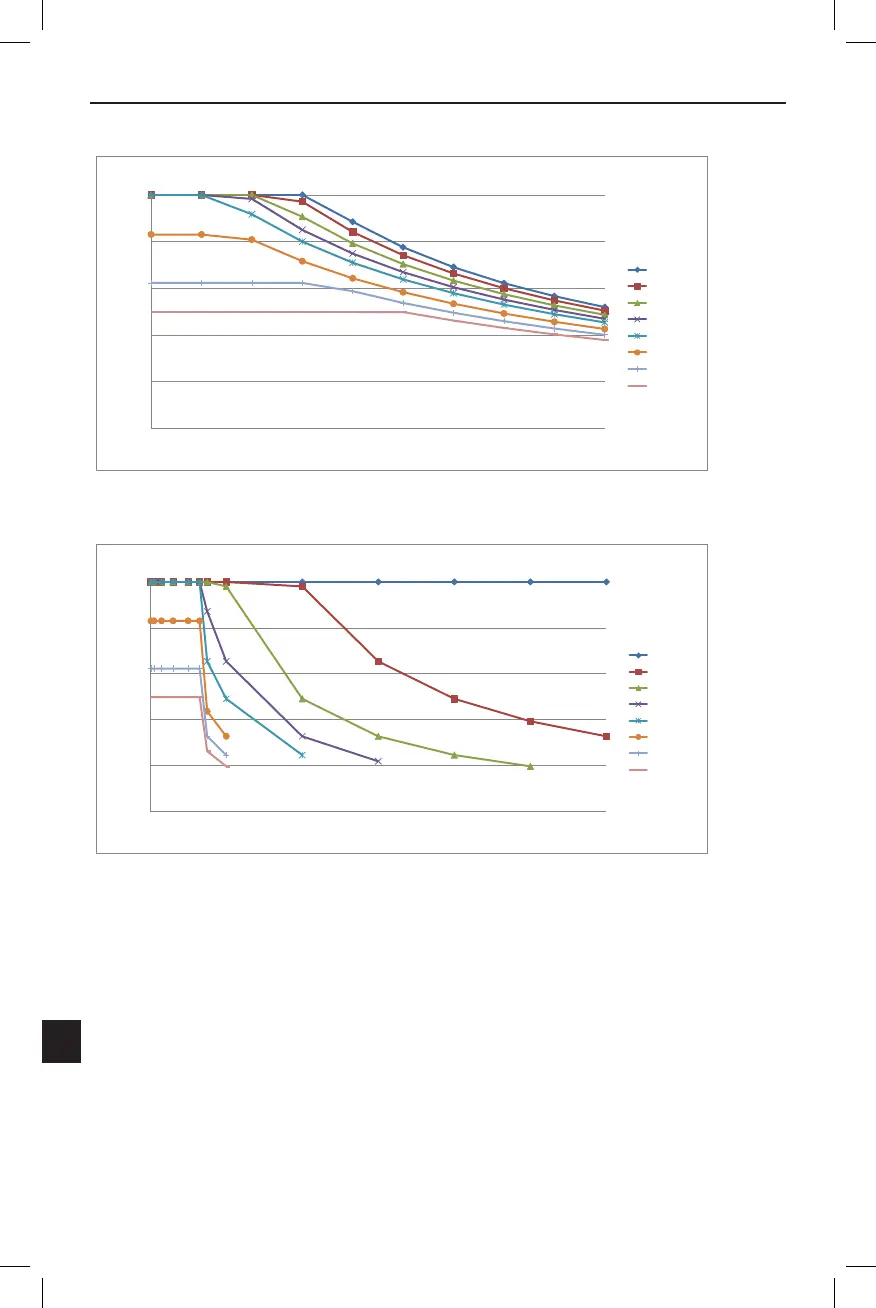

Max. amplitúda prúdu na kontakt verzus impedancia
0.00
5.10
10.20
15.30
20.40
25.50
300 400 500 600 700 800 900 1000 1100 1200
Current (mA)
Impedance (Ω)
Maximum Amplitude Based on Impedance and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us




20 µs
100 µs
200 µs
300 µs
400 µs
600 µs
800 µs
1000 µs
Šírka impulzu:
Max. amplitúda na základe frekvencie a šírky impulzu
0.00
5.10
10.20
15.30
20.40
25.50
0 200 400 600 800 1000 1200
Current (mA)
Frequency (Hz)
Maximum Amplitude Based on Frequency and Pulse Width
PW = 20 us
PW = 100 us
PW = 200 us
PW = 300 us
PW = 400 us
PW = 600 us
PW = 800 us
PW = 1000 us
Šírka impulzu:
20 µs
100 µs
200 µs
300 µs
400 µs
600 µs
800 µs
1000 µs
Prúd (mA)
Impedancia (Ω)
Prúd (mA)
Frekvencia (Hz)
Boston Scientific Confidential. Unauthorized use is prohibited.
Production
92070454 A.1
Montage MRI IPG Entrada 2.0 19L
Page 244 of 284
