5-12
Section 5 Electrical Systems

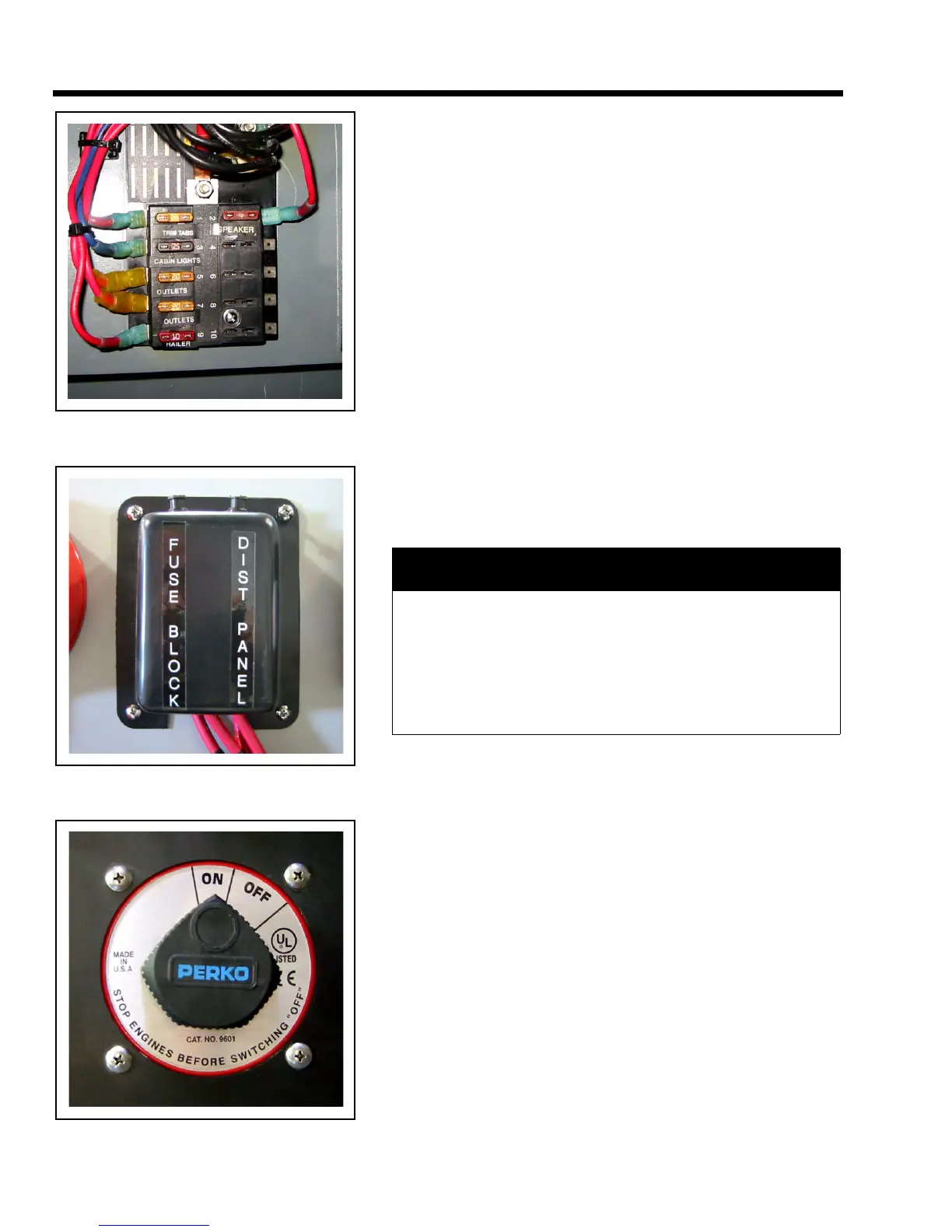

Accessory Fuse Block
Main DC circuit 4 of 6 provides power to the acces-
sory fuse block located inside the console.
This circuit is protected by one 60-amp, push button
breaker. The 60-amp breaker is located inside the
console within seven inches of the electronics OFF-
ON battery switch.
One Group 27 105 amp hour, deep cycle battery
(optional) powers this circuit through the electronics
battery switch. A two-battery system will have one
electronics OFF-ON battery switch.
Ten branch circuits can be connected to the DC elec-
trical system at the accessory fuse block. The acces-
sory fuse block also has ten connection points for the
negative side of the DC electrical system. Some elec-
trical accessories were installed at the factory.
See Electrical Diagram for wire color codes.
! CAUTION
The total combined amperage ratings for all
accessories connected to the fuse block must
not exceed 60 amps. Overloading the acces-
sory fuse block might cause repeated tripping
of the 60-amp breaker and other electrical prob-
lems.
