The BougeRV FLASH-300 is a portable power station designed to provide reliable power for various devices and applications. It features a robust set of input and output ports, smart display functionalities, and multiple charging options, making it a versatile solution for both indoor and outdoor use.

Function Description:

The FLASH-300 serves as a portable power source, capable of charging and powering a wide range of electronic devices. It supports AC, solar, car, and USB-C charging inputs, offering flexibility in how it is recharged. For output, it provides AC, USB-A, USB-A QC3.0, USB-C, cigarette port, and wireless charging options, catering to diverse power needs. The device is equipped with a smart LED screen that displays real-time information about its status, including input/output power, remaining charge time, capacity, and error codes. It also incorporates an ECO function to conserve power by automatically turning off ports when output is low or after a period of inactivity. Safety features include overload protection, over-temperature protection, over/under-voltage protection, and short circuit protection for both inverter and PV inputs, as well as overcurrent and overheating protection for AC charging.

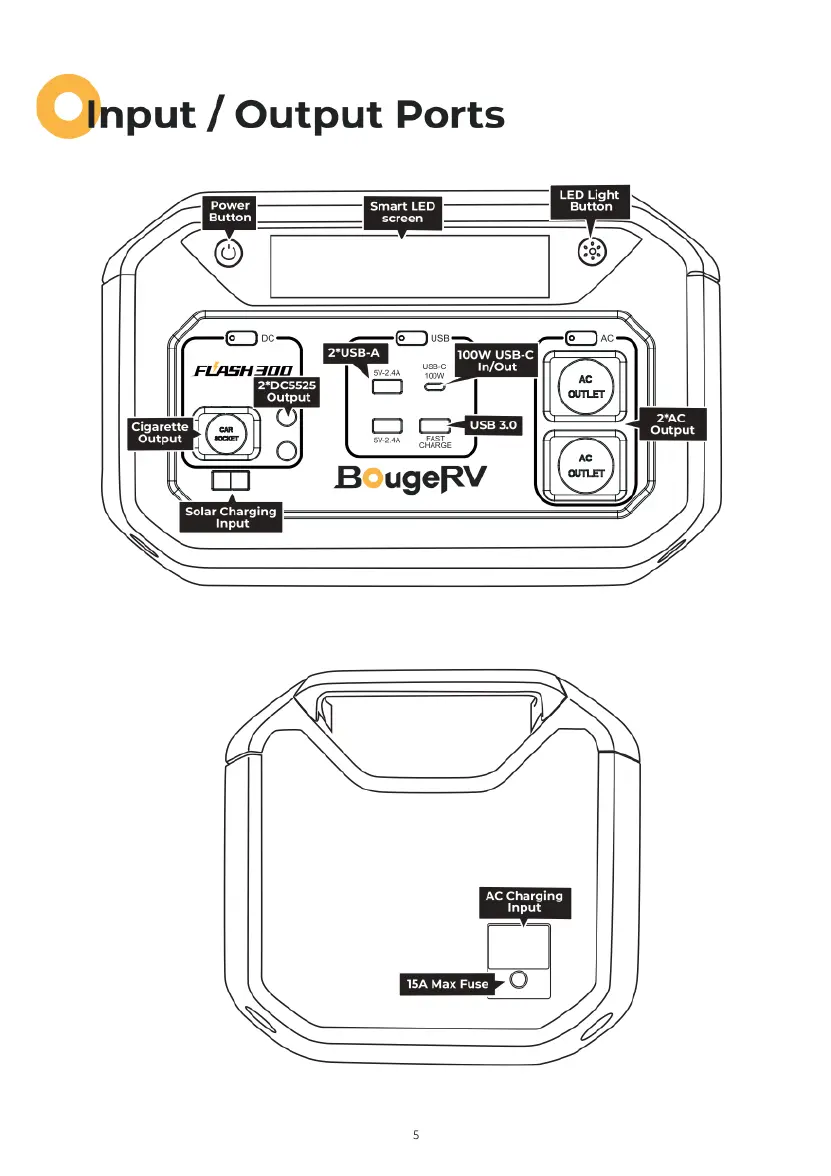

Important Technical Specifications:

Input Ports:

AC Charge: 100-115V, 600W Max
Solar Charge: 12-45V, 25A 600W Max
USB-C Charge: 20V/5A, 100W Max

Output Ports:

AC (×2): 50/60Hz Pure Sine Wave, 600W Max
USB-A (×2): 5V/2.4A, 12W
USB-A QC3.0 (×1): 5V/3A, 15W; 9V/2A, 18W
USB-C: 5/9/12/15/20V, 5A 100W Max
Cigarette Port: 13.5V/10A, 135W Max
Wireless Charge: 5V/3A, 15W Max

Environmental Operating Temperature:

Operating Temperature: 32°F to 105°F (0°C to 40°C)
Discharge Temperature: 14°F to 113°F (-10°C to 45°C)
Charge Temperature: 32°F to 113°F (0°C to 45°C)
Storage Temperature: 32°F to 100°F (0°C to 38°C)

Battery Info:

Cell Chemistry: Li(NiCoMn)O2
Cycle Life: 700+ Cycles to 80% Capacity

General Info:

Net Weight: 6.6kg/14.6LBS
Product Dimensions: 271819 inches
Capacity: 286WH
Certification: FCC, PSE, ROHS, UN38.3

Recharge Time (0-90%):

AC Charging: Around 0.5 hours
Solar Charging: Around 0.5 hours
Car Charging: Around 2.4 hours
USB-C Charging: Around 3 hours

Usage Features:

Fast Charging: The FLASH-300 boasts fast charging capabilities, with AC/PV 600W Max Input allowing for a 0-90% charge in just 0.5 hours.
Smart LED Screen: A clear LED screen provides comprehensive real-time information, including input/output power, remaining recharge time, current capacity (0-100%), remaining power supply time, and various indicators for charging status (MPPT, wall outlets, car charging), temperature warnings, and overload alerts. It also displays the current electricity frequency.
AC Frequency Automatic Identification: The device automatically identifies and saves the AC frequency (default 60Hz) upon connection, eliminating the need for manual switching and protecting appliances.
Reduced Standby and Running Power: Optimized power management reduces standby and running power consumption, extending usage time by 10-15% compared to similar capacity power stations.
Infinitely Variable Speed Fan: The cooling fan intelligently adjusts its speed based on temperature and output power, minimizing noise during operation.
Safety Protection System: Features 10 error codes and a triple protection system to prevent potential safety hazards, including overload, over-temperature, over/under-voltage, and short circuit protections.
ECO Function: Automatically turns off after 5 minutes of no input or output. USB ports turn off if output is lower than 3W for one hour, and DC & AC ports turn off if output is lower than 5W for one hour, conserving battery life.
Alarm Function: All abnormal states are accompanied by error codes or buzzer warnings, and the FLASH-300 can resume operation automatically once the abnormality is resolved.
Multiple Charging Options: Supports charging via AC wall outlets, solar panels (series and parallel connections, with MPPT controller), car cigarette lighter, and USB-C.
Pass-Through Charging: The FLASH-300 allows charging while simultaneously powering devices, though this is not recommended for battery longevity.

Maintenance Features:

Regular Recharging: To prevent damage and maintain battery health, charge the product before storing if a low-battery warning appears. Keep the FLASH-300 fully recharged at least once a month (0%-100%), and recharge when the display capacity is less than 20%.
Temperature Management: Store and use the product within the recommended temperature range of 32°F to 105°F (0°C to 40°C) to prolong battery life. Avoid extreme cold (below freezing) or heat (above 140°F/60°C) as these can severely affect performance and battery capacity.
Dry Environment Storage: Store the product in a dry environment, away from water, direct sunlight, fire sources, or heating stoves.
Avoid Physical Damage: Do not expose the product to liquids, immerse it in water, or place heavy objects on it. Avoid strong electrostatic or electromagnetic environments.
Authorized Accessories: ONLY use BougeRV approved charging cables to prevent damage and ensure warranty validity.
Charging Safety: When charging, place the product on the ground away from flammable or combustible materials. Do not leave unattended during charging. Allow the battery to cool to normal temperature after a long period of heavy load before recharging.
No Disassembly: Do not disassemble the machine without authorization or attempt maintenance by non-designated sites, as this voids the warranty.
Warranty Conditions: The limited warranty requires the battery cell to be fully charged within seven days of purchase and at least once every 6 months thereafter.
Travel Notice: Do not bring this product on flights.

BougeRV FLASH-300 - Page 9
