BounceKing 10 ft Trampoline Combo - Trampoline and Enclosure Parts List

6
BK-10FTTRAMP

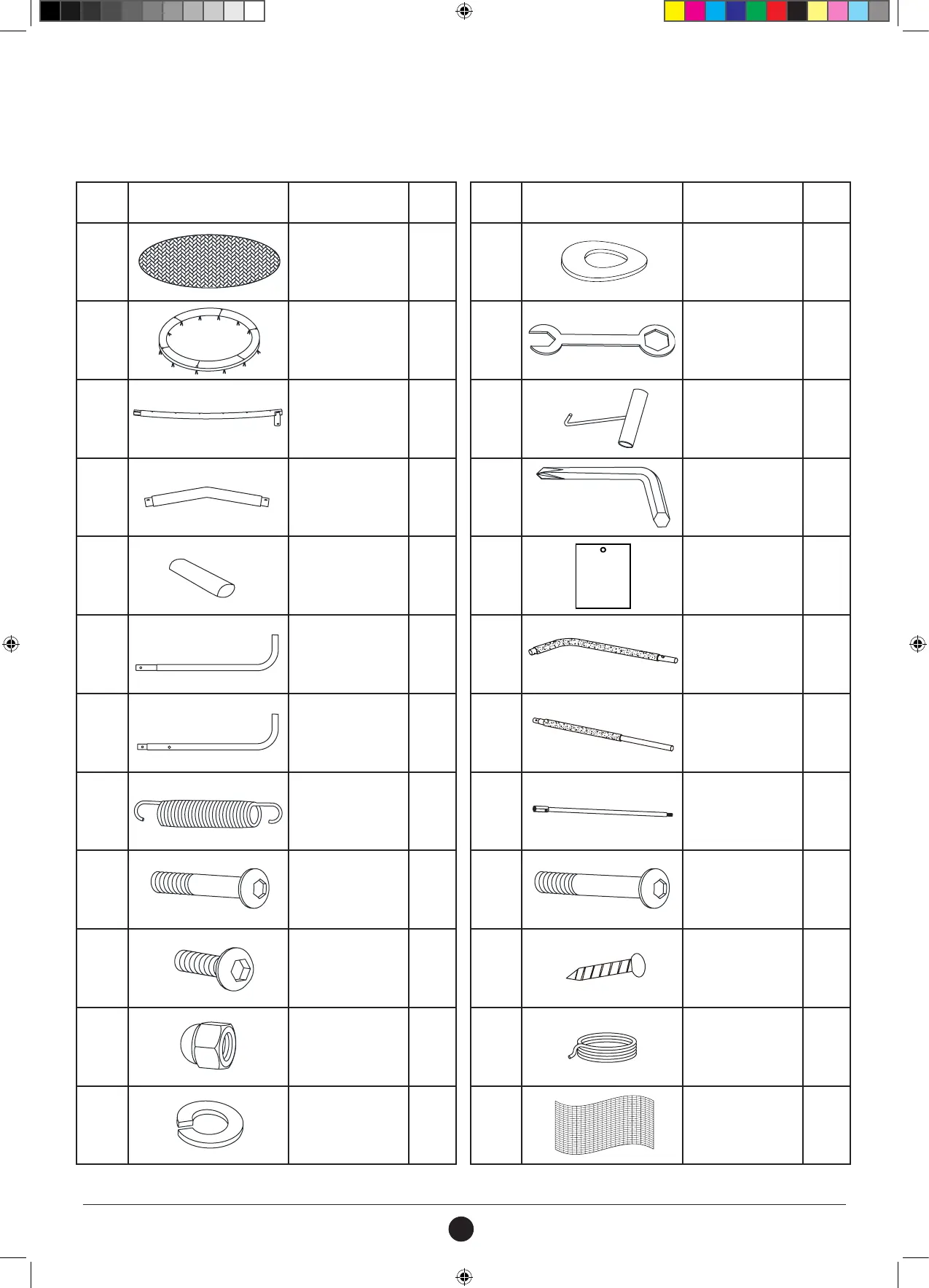

TRAMPOLINE AND ENCLOSURE PARTS LIST
Make sure you have all the parts listed. If you are missing any please contact our Service Centre.
PART
NO.
DIAGRAM DESCRIPTION QTY
1
TRAMPOLINE
MAT
1
2 FRAME PAD 1
3
TOP RAIL WITH
LEG SOCKETS
8
4 LEG BASE 4
5
REINFORCED
STEEL
4
6 A
RIGHT
L-SHAPED LEG
(2 HOLES)
4
6 B
LEFT
L-SHAPED LEG
(3 HOLES)
4
7
GALVANIZED
SPRINGS
56
8
SHORT BOLT
(48 MM)
4
9
SCREWS
(15 MM)
8
10 CAP NUT 12
11
LARGER
SPRING
WASHER
20
PART
NO.
DIAGRAM DESCRIPTION QTY
12 ARC WASHER 20
13 WRENCH 1
14
SPRING
LOADING TOOL
1
15
ALLEN
WRENCH
1
16
TRAMPOLINE
SAFETY
INSTRUCTION
PLACARD
1
A
UPPER FRAME
TUBE WITH
FOAM
4
B
LOWER FRAME
TUBE WITH
FOAM
4
C CABLE WIRE 12
D
LONG BOLT
(82 MM)
8
E
SELF-LOCKING
SCREW
8
F CORD 7
G
ENCLOSURE
NETTING
1
