7. Functional Units 7.
7.1. Tanks
7.1
The work tank contains solvent, which is used over and over. The solvent is pumped from the work
tank to the cage. If there is not enough solvent in the work tank, fresh solvent is taken from the clean
tank. After the garments have been cleaned, the solvent is pumped back to the work tank or to the
distillation system..
The clean tank holds clean solvent that has been recovered from the distillation and drying
processes. When the clean tank overflows, it fills up the work tank again.
Tank 3 is an extra tank for special applications. If an optional second centrifuge filter is used, this is
allocated to the third tank. This permits separate cleaning of light and dark products.
Sacrificial anodes in the tanks protects against corrosion.
P12 Filling volume Recommended filling amount
Work tank 110 l (29 US gal) 60 l (15.8 US gal) (high level)
Clean tank 70 l (18.5 US gal) 70 l (18.5 US gal)
Tank 3 90 l (23.8 US gal) 60 l (15.8 US gal) (high level)
P15 Filling volume Recommended filling amount
Work tank 145 l (38.3 US gal) 75 l (19.8 US gal) (high level)
Clean tank 95 l (25.9 US gal) 95 l (25.9 US gal)
Tank 3 90 l (23.8 US gal) 75 l (19.8 US gal) (high level)
P18 Filling volume Recommended filling amount
Work tank 155 l (40.9 US gal) 90 l (23.8 US gal) (high level)
Clean tank 100 l (26.4 US gal) 100 l (26.4 US gal)
Tank 3 90 l (23.8 US gal) 90 l (23.8 US gal) (high level)
All three tanks are self-cleaning, which means that the sloping bottoms remain nearly free of dirt.

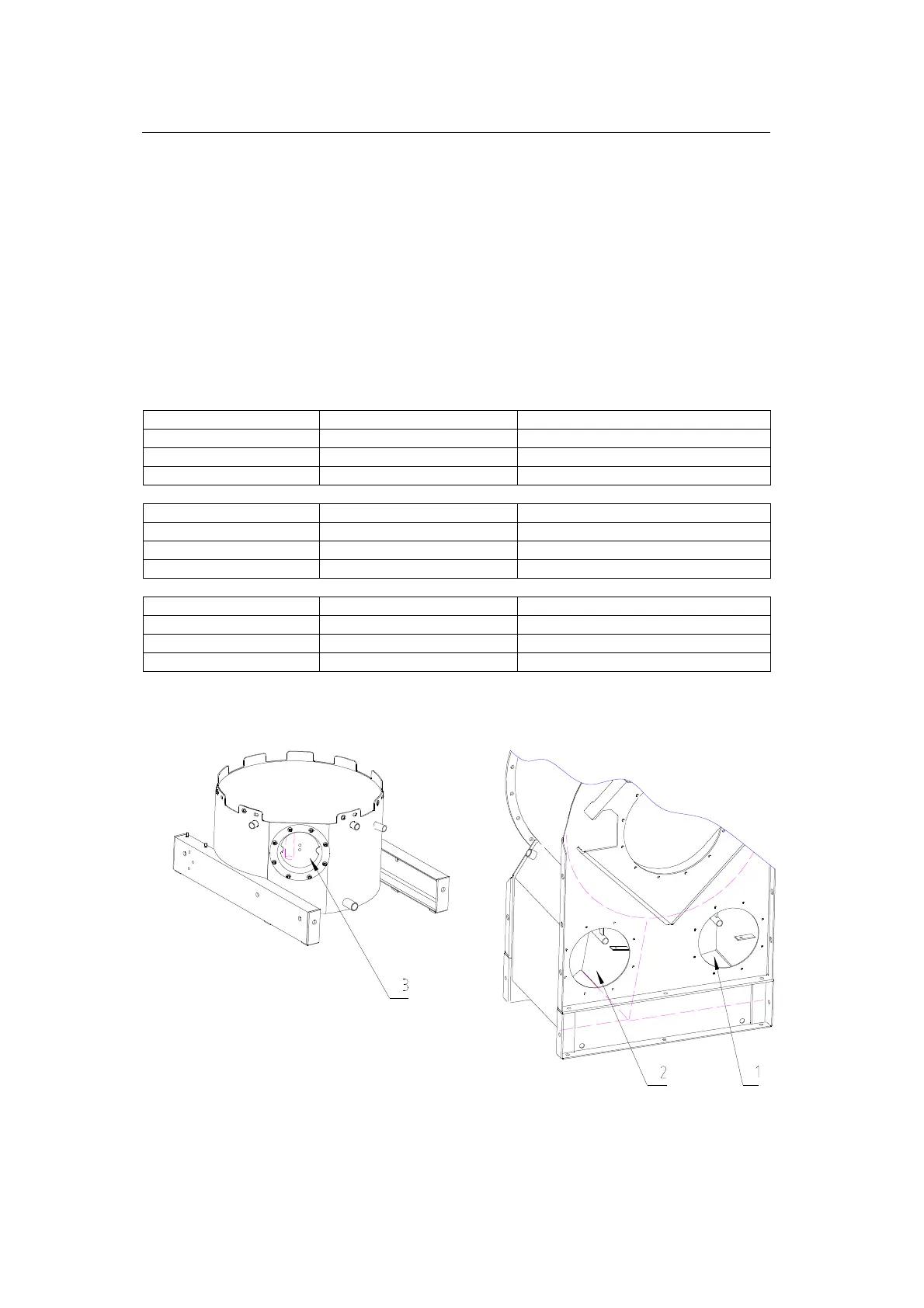

1 = Work tank
2 = Clean tank
3 = Tank 3 (extra tank)
