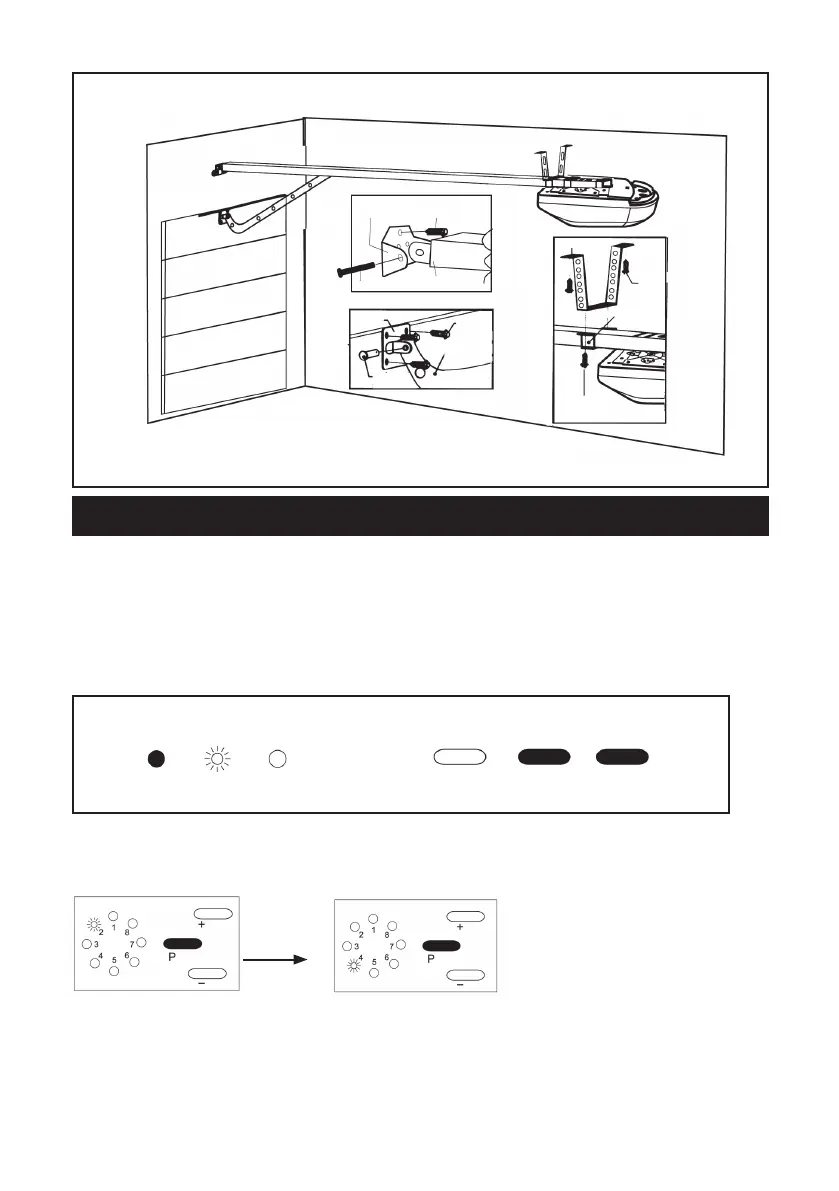

BOXER 63.002 - Fixing and Hoisting Door Opener; Garage Door Preparation and Programming; Preparation of Garage Door; Programming Process

Fixing parts
of wall
Expansion
screw
Guid orbit
Axis of long pin
Door connector
Axis of
short pin
Door steel
scimitar
M6x20 bolt
Expansion screw
Holes steel
Connector “II”
M6x25
Attack screw
Fixingandhoistingdooropener
 Assemblyandtheuseofclutch
PreparationofGarageDoorforopener.
First step, open and close the door manually, the door should be running
smoothly, and door is well balanced.
Do not install opener on Garage Door, unless the door runs smoothly in manual
operation.
Programmingprocess
Setupopeninglimitofdoor:
State of lamp:
Instruction:
Always
bright
Lamp Dark No press Press Always press
State of buttons:
Press button “P” The
number 2 LED will ash.
Push and hold the + button
to bring the door to the
desired UP position.
Press P button once, lock
the UP limit, meanwhile
LED 4 will ash and enter
the next program.
