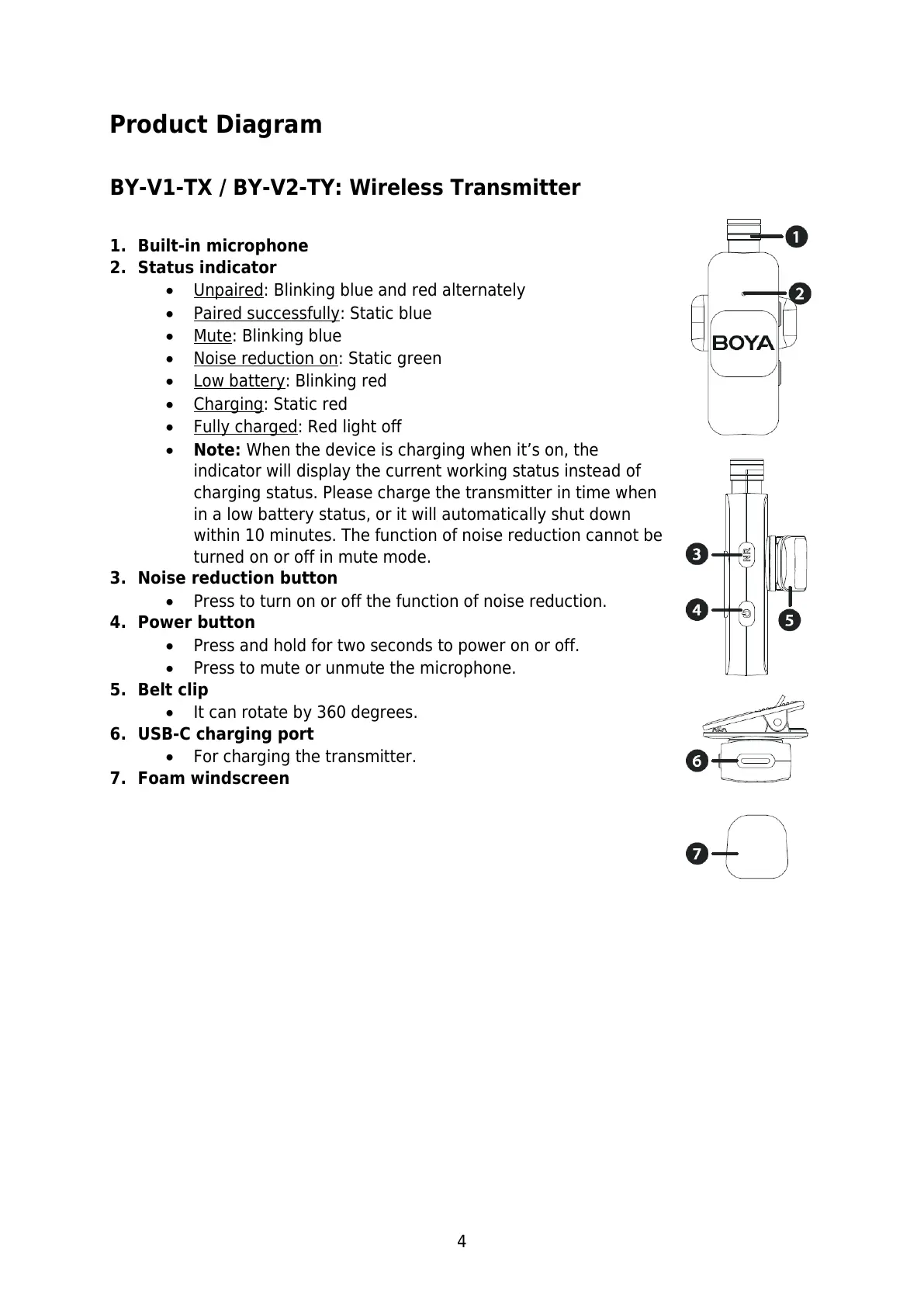

Product Diagram
BY-V1-TX / BY-V2-TY: Wireless Transmitter
1. Built-in microphone
2. Status indicator
 Unpaired: Blinking blue and red alternately
 Paired successfully: Static blue
 Mute: Blinking blue
 Noise reduction on: Static green
 Low battery: Blinking red
 Charging: Static red
 Fully charged: Red light off
 Note: When the device is charging when it’s on, the
indicator will display the current working status instead of
charging status. Please charge the transmitter in time when
in a low battery status, or it will automatically shut down
within 10 minutes. The function of noise reduction cannot be
turned on or off in mute mode.
3. Noise reduction button
 Press to turn on or off the function of noise reduction.
4. Power button
 Press and hold for two seconds to power on or off.
 Press to mute or unmute the microphone.
5. Belt clip
 It can rotate by 360 degrees.
6. USB-C charging port
 For charging the transmitter.
7. Foam windscreen
