GENERAL INSTRUCTIONS
HANDLING
Remove the top and sides of the machine crate.
Take out the screws that secure the machine to
the crate base.
Lift the machine by means of the cross feed
handwheel housing and the two lifting studs found
on the sides. Lifting in any other manner may dam-
age the machine. The lifting studs may be un-
screwed when the machine is permanently situated.
INSTALLATION
Special
wrenches are supplied with each machine to adjust
its legs. The machine must be leveled to permit
the lubrication system to operate properly.
Remove the grinder table from its crate and
clean thoroughly. Oil the table ways and grease the
rack with the lubricants recommended in the lubri-
cation chart. Clean the grinder carriage ways and
table pinion. Set the grinder table in place gently,
moving it back and forth until the table pinion
engages the rack.
Loosen the two wing nuts that hold the column
rear dust cover. Remove the dust cover by sliding
it upward. Clean the column ways and lubricate
them with the same oil used on the table ways.
Replace the column rear dust cover and secure
the wing nuts.

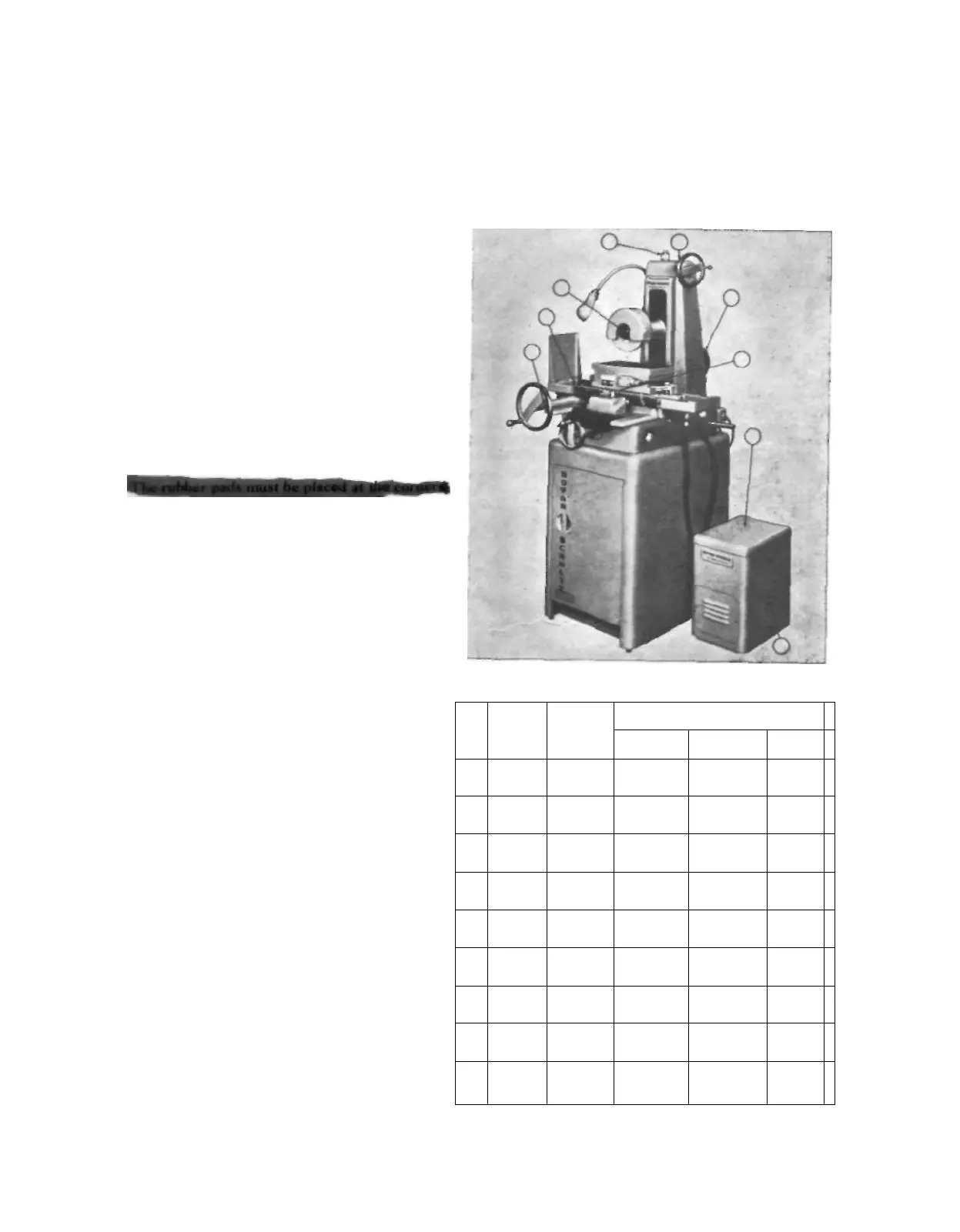

LUBRICATION
The table oil cup lubricates the cross feed
screw and the table and cross feed ways. The large
oil-cup on top of the column cap lubricates the
column ways.
The elevating handwheel, rapid traverse handle
and spindle motor have their individual oiling
points.
Follow the recommendations found in the lubri-
cation chart for the lubrication of the machine.
LUBRICATION CHART
POSI-
TION
1
2
3
4
5
6
7
8
9
OILING
PERIOD
DAILY
TWICE
WEEKLY
WEEKLY
EVERY
1000
HOURS
DAILY
WHEN
USED
PERMANENT
AFTER 6000
OPERATING
HOURS
SEMI
ANNUALLY
SEMI
ANNUALLY
LUBRICATING
INSTRUCTIONS
FILL CUP
FILL CUP
10
TO
20
DROPS
30 TO
70
DROPS
LIBERALLY
AT TIME OF
OVERHAUL
HAND
PACK
3 GALS.
HAND
PACK
LUBRICANT
S0C0NY VACUUM
OIL
CO.
VACTRA OIL
HEAVY MEDIUM
"
"
"
"
B.R.B. LIFETIME
GREASE
••
D.T.E. LIGHT
OIL
SQUAREX
GREASE # 1
SHELL
OIL CO.
T0NNA
OIL #33
»
•'
•'
"
ALVANIA
GREASE # 2
"
TELLUS
OIL #27
ALVANIA
E.P. GREASE # 2
THE TEXAS
OIL CO.
CAM0PUS
OIL-D
II
••
"
"
STARFAX
GREASE # 2
••
REGAL OIL
A-(RSO)
NOVA
GREASE # 1
2
3
6
4
9
1
5
8
7
under the grinder and grinder stand.
