MINI
USB
RS232
PROG
DL2
DL1
RFID
PROG
+
–
+12V
BIN1
BIN2
BIN3 BOUT
M1
A
Page 4 - Manual FB00353-EN - ver. 1 - 12/2015 - © CAME S.p.A.
The contents of this manual are subject to change at any time without prior notice.
Terminal block
~ ~
Mains power supply
Terminal block
Aux 1 Output Open Collector max 100 mA
+12 V
Common
Aux 2 Output Open Collector max 100 mA
+ –
Power supply for entry panels 18 V DC (*)
B IN1
BUS line input from entry panel 1
B IN2
BUS line input from entry panel 2
B IN3
BUS line input from entry panel 3
B OUT
Riser output
(*) The device is protected against overloads and short circuits.
Connectors
MINI
USB
For programming using PC
RS232
Not used
Button
PROG
For programming entry panels (**)
Jumper
RFID
PROG
For memorising/erasing codes and TAGs (**)
LED
Colour Meaning
DL1 (**) Yellow Programming status
DL2 Green USB connected
(**) Refer to the Programming Manual for the
DC/01-DVC/01-DC/01ME-
DVC/01ME
entry panels, code FB00232.

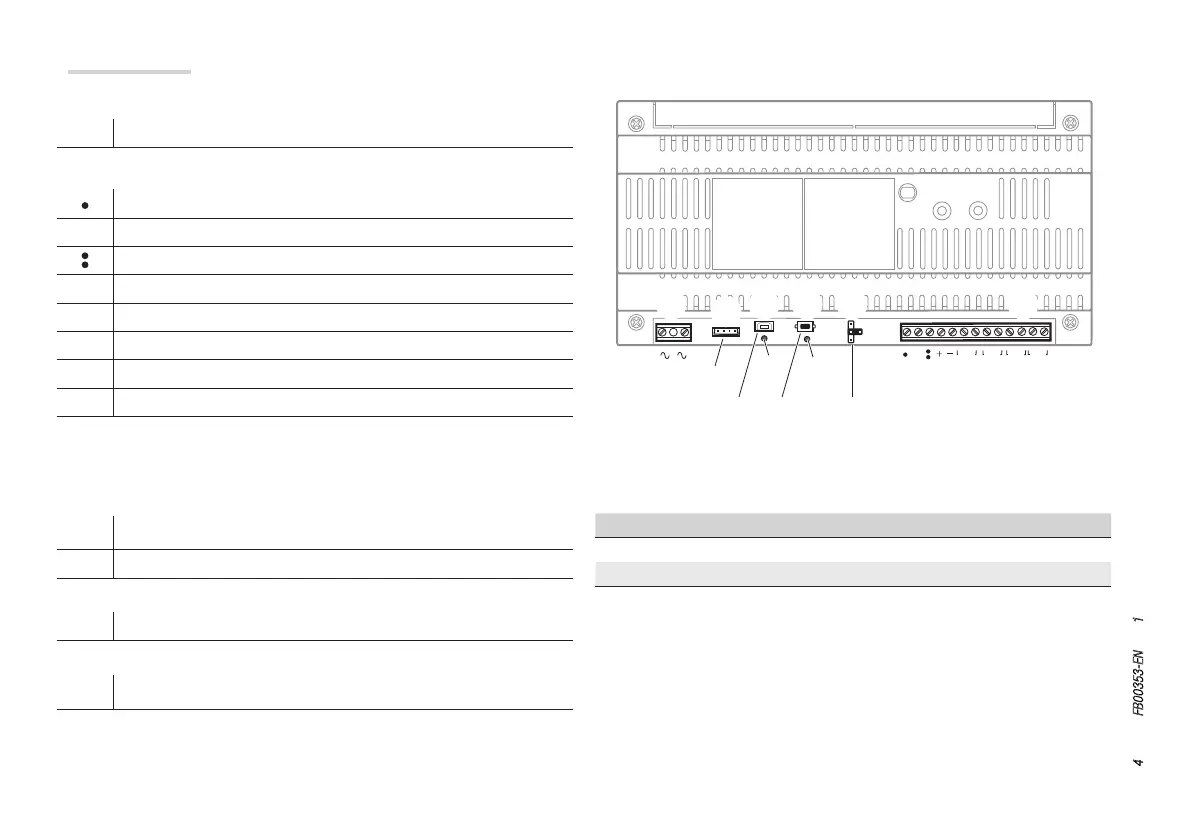

Main components
