Leak Sensor Installation
-44-
Assemble the Leak Sensor Wire Harness and the Accessory Module – cont’d

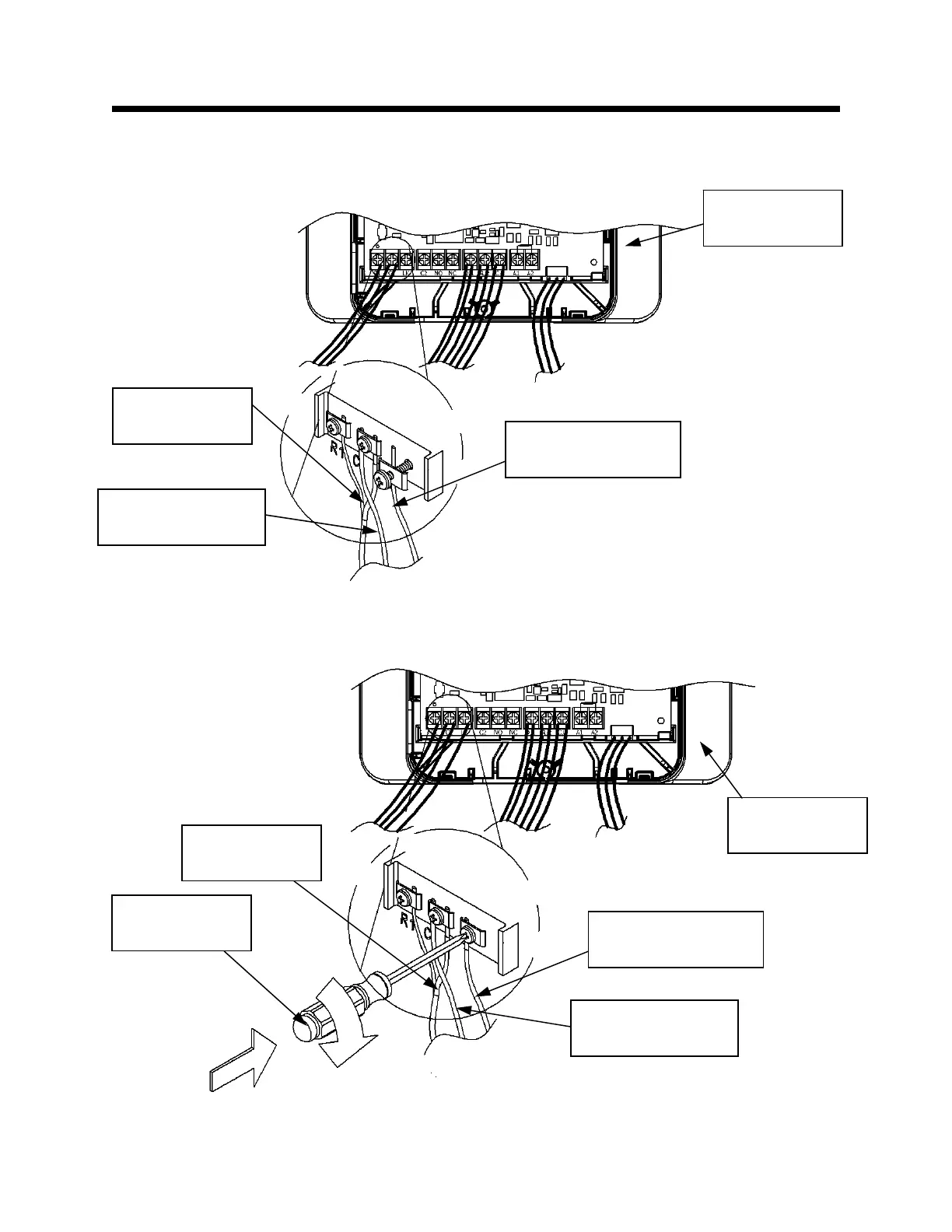

Step 9: Insert the black wire, from the Leak Sensor wire harness, under the screw labeled “LK.” This is
shown in Figure 60.
Connect the Leak Sensor Wire Harness and Accessory Module – cont’d
Step 10: Tighten the screw labeled “LK,” as shown in Figure 61.
Figure 60
Fi
g
ure 61
Transformer
Wire Harness
Accessory
Module
Leak Sensor Wire
Harness Red Wire
Leak Sensor Wire
Harness Black Wire
Transformer
Wire Harness
Accessory
Module
Leak Sensor Wire
Harness Red Wire
Leak Sensor Wire
Harness Black Wire
Philips head
screwdriver
