Inlet Shut-off Valve Installation
-51-
Install the Bushings

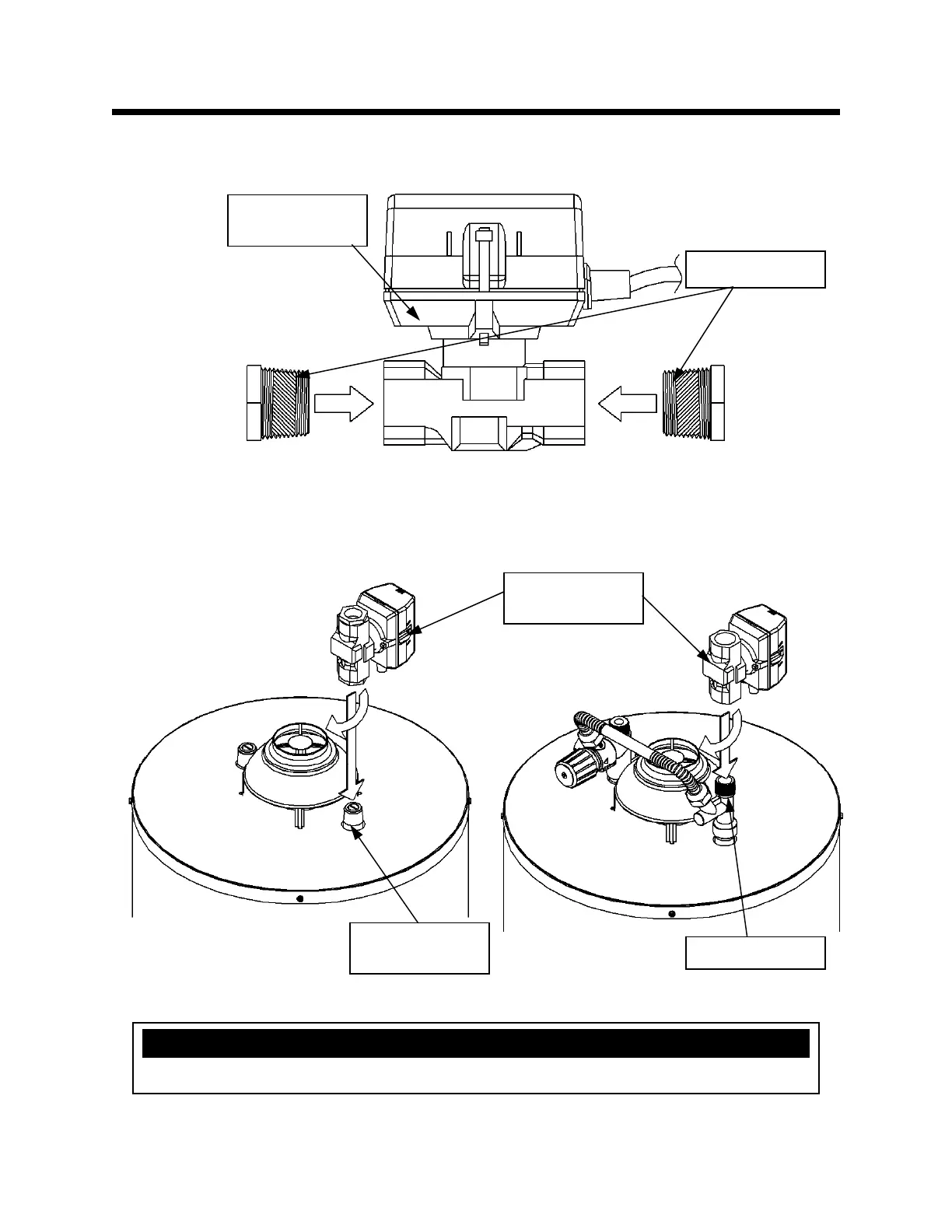

Step 5: Thread the bushings into each end of the Inlet Shut-off Valve, as shown in Figure 72.
Install the Inlet Shut-off Valve
Step 6: Thread the Inlet Shut-off Valve onto the water heater inlet (cold). Or, if an integrated mixing
device is used, thread the Inlet Shut-off Valve onto the IMD inlet. This is shown in Figure 73.
Figure 72
Figure 73
Inlet Shut-off
Valve
Bushings
Inlet Shut-off
Valve
Water Heater
Inlet (cold)
IMD Inlet (cold)
NOTICE
Remove the draft hood and venting to install the Inlet Shut-off Valve, if necessary.
