Installation S19-2000, S19-2000EFX
Bradley • 215-1291 Rev. R; ECN 14-09-026 7/23/2014 5
5

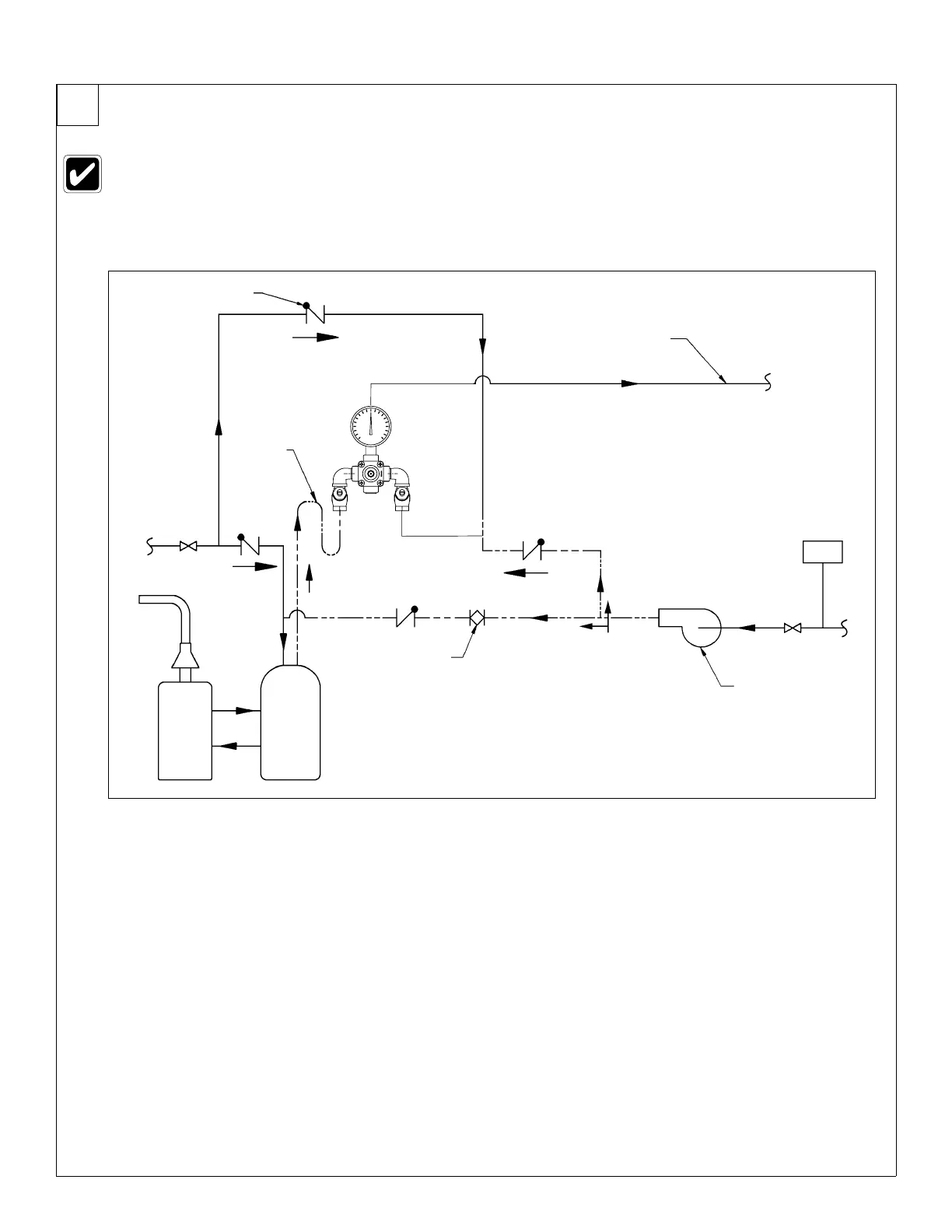

Optional Water Recirculation Setup
Check Valve
(Typ)
COLD
HOT
Heat Trap
28" Drop
Balancing Valve (Typ)
Water
Heater
Storage
Tank
Tempered Water Flow
Return Flow
Temperature Switch
Recirculated
Tempered
Water
Recirculating Pump
Cold
Water
Recirculating the water in the system provides constant regulation of the water temperature. Flush the supply lines thoroughly
after completing installation. Close off all fixtures and label them as not available for use durin g the recirculating process.
1. Turn off the recirculating pump and turn on the water supply at emergency fixture (a water flow rate of 3 – 5 gpm is required).
2. Let the water run through the system until a consistent temperature is obtained. If you do not obtain the required temperature,
refer to step #3 on previous page for temperature readjustment.
3. As soon as the water reaches the proper temperature, turn on the recirculating pump (make certain the proper system
temperature has been achieved before proceeding).
4. Check the water temperature at the return pump. If the temperature exceeds the appropriate level by 2°F, adjust the temperature
high-limit switch (this will turn off the pump). Wait until the return water temperature is 5°F below the appropriate level and adjust the
low-limit switch (this will turn the pump back on).
5. Open the balancing valve completely.
6. Turn off all fixtures and make sure there is no water running through the system (the cold inlet pipe should feel warm to the touch).
7. Let the system run for 30 minutes or longer without water. If, after thirty minutes, the water temperature increases, you may
readjust the temperature by slowly closing the balancing valve until the appropriate temperature is reached.
To Next Page
