Bradley S19-2000 Series Installation

S19-2000, S19-2000EFX Installation
8 7/23/2014 Bradley • 215-1291 Rev. R; ECN 14-09-026
2
3
4
5
6
7
8
9
10
11
14
13
12
15
16
17
18
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
12 1 O-Ring
13 1 O-Ring
O-Ring Kit S65-170
Item Qty. Description
11 1 Thermostat
12 1 O-Ring
13 1 O-Ring
Thermostat Kit S65-171
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
4 1 Liner
5 1 Spring
6 1 Piston
7 1 Spring
8 1 Overheat Screw
9 1 Upper Seat
Piston & Liner Kit S65-172
Item Qty. Description
2 1 O-Ring
3 1 O-Ring
4 1 Liner
5 1 Spring
6 1 Piston
7 1 Spring
8 1 Overheat Screw
9 1 Upper Seat
10 1 Push Rod
11 1 Thermostat
12 1 O-Ring
13 1 O-Ring
14 1 Control Cap
15 1 Set Screw
16 1 Label
17 1 Set Screw
18 4 1/4 Screw
19 1 Cap
Center Section Kit S65-303
Kit numbers for rough brass finish. Contact
Bradley for other configurations.

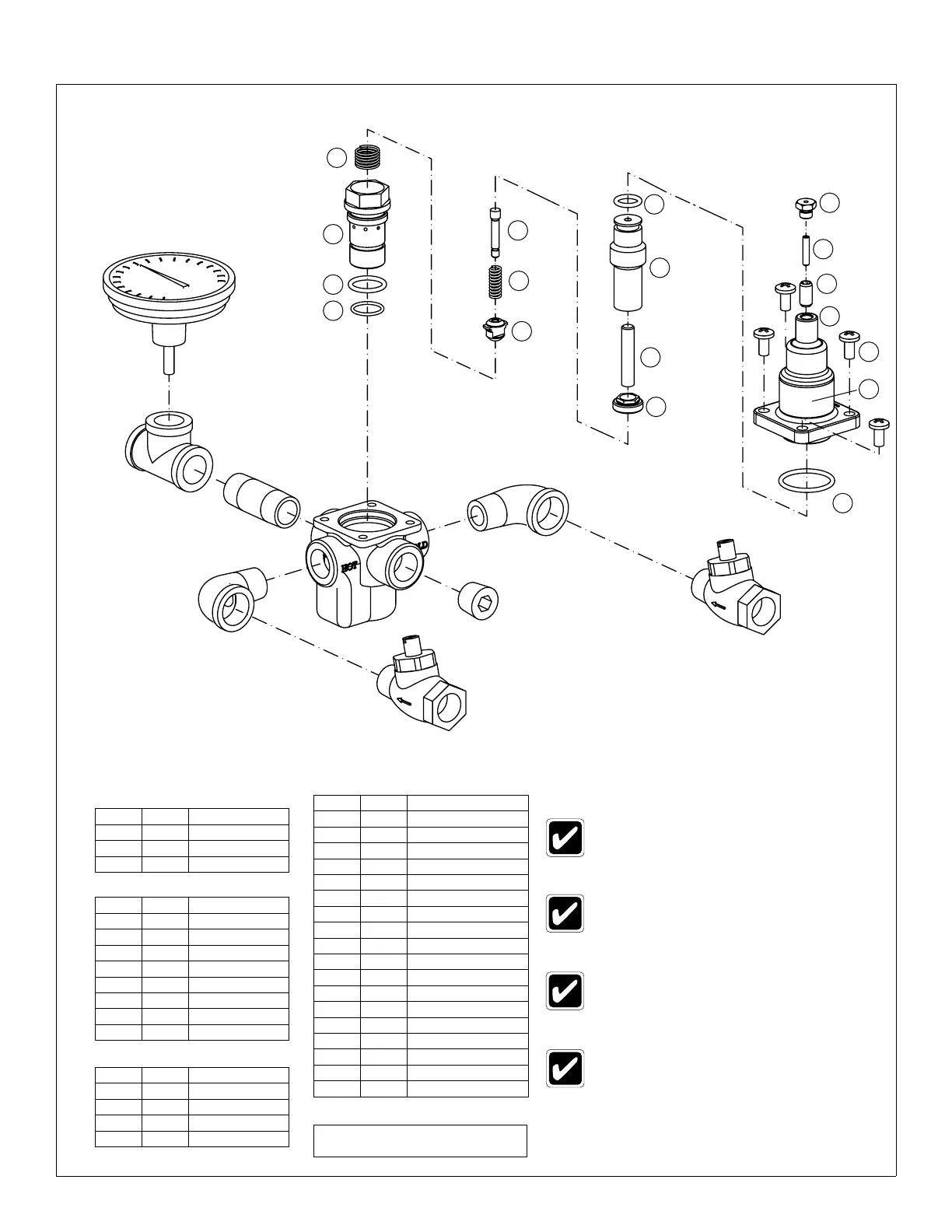

Parts Breakdown
As of November 2001, the piston (Item 7) has
replaced the seal holder and seal as a direct
replacement.
As of June 2008, the brass control cap (item
15) has been replaced by a plastic cap. All
internal components are identical.
When used with S19-292, order Part
No. 269-653 (3 supplied with unit).
Flexible Connection Lines for S19-2000EFX
Thermometer
1/2" Brass
Tee
1/2" x 2"
Brass Nipple
1/2" Street Ell
1/2" Street Ell
1/2" Pipe
Plug
Check Stop
Check Stop
Valve Body
19
As of July 2012, the Temperature Adjustment
Control (items 15, 17 and 19) have been
updated and are compatible with all units using
the plastic Control Cap (June 2008 to present).
