S19-690H, S19-690HR Installation
6/9/09 Bradley Corporation • 215-084 Rev. S; ECM 08-539

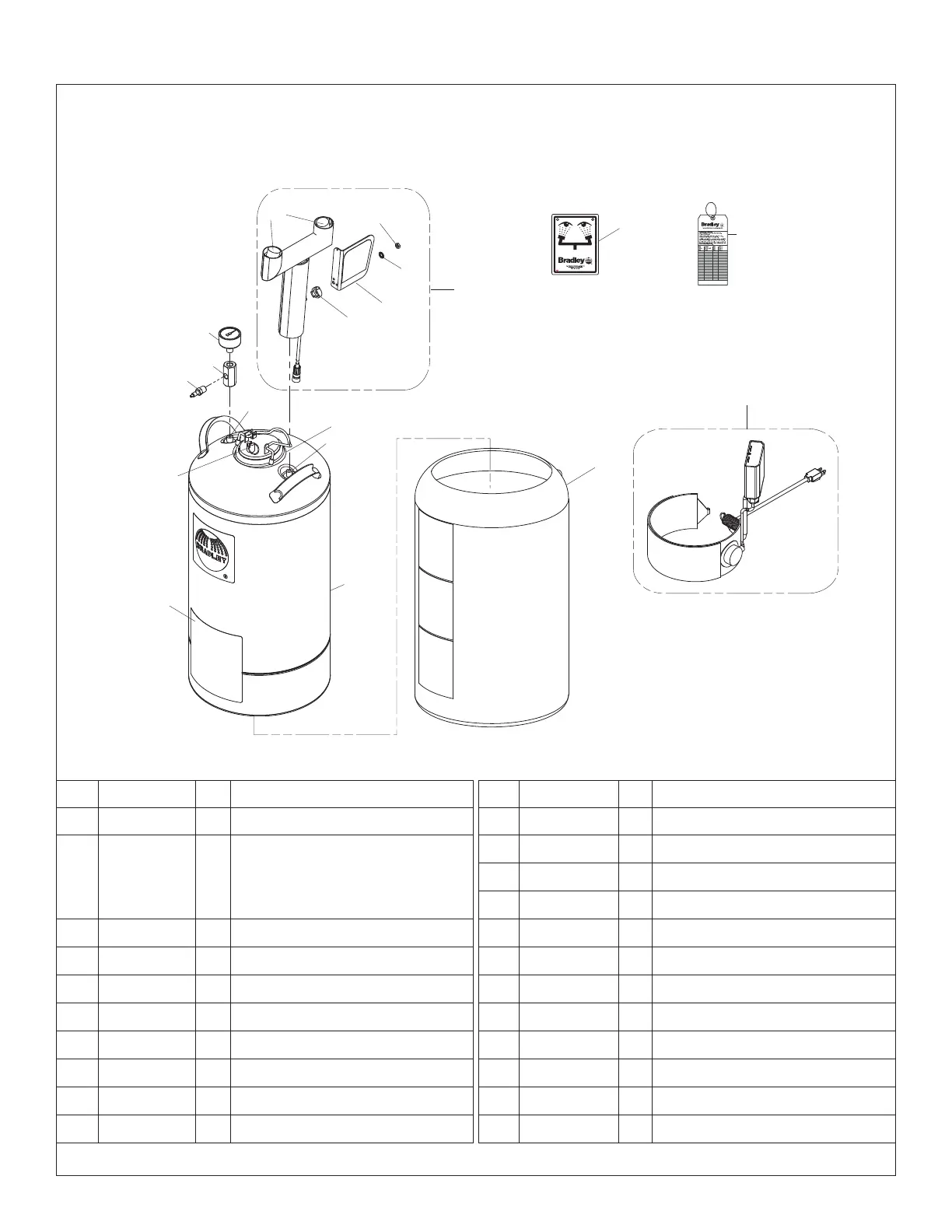

Assembly of Components and Parts List
1.1
1
3
5
4
7
8
6
2
1.3, 1.4
1.3, 1.5
1.22
1.2, 1.21
9.1
9
9.2
9.3
9.4
9.5
S45-2410 includes Items 1.21, 1.3
1 S39-785 1 Tank, 10-Gallon
1.1 204-641 1 Operating Instr. Label, English
1.1 204-641FC 1 Operating Instr. Label, French
1.1 204-641M 1 Operating Instr. Label, Spanish
1.2 S44-024 1 Lid Assembly
1.21 269-1410 1 Gasket
1.22 269-1642 1 Relief Valve
1.3 269-1411 2 O-Ring
1.4 269-1516 1 Draw Tube
1.5 269-1515 1 Level Indicator Tube
2 269-1969 1 Heater Jacket
3 153-451 1 Adapter
4 169-786 1 Pressure Gauge
5 S27-320 1 Tank Valve Assembly
6 S83-167 1 Junction Box Assembly
7 114-051 1 Safety Sign
8 204-421 1 Emergency Inspection Tag
9 S05-182H 1 Eyewash Assembly, Heated
9.1 107-371 2 Tethered Dust Cover
9.2 S08-336 1 Handle/Label Assembly
9.3 110-215 1 Nut
9.4 153-372R 1 Adapter
9.5 142-002DA 1 Lockwasher
Item Part No. Qty. Description Item Part No. Qty. Description
To Next Page
