BRAHMA EG12 Series User Manual

4/5 2704_r03
DIAGRAM

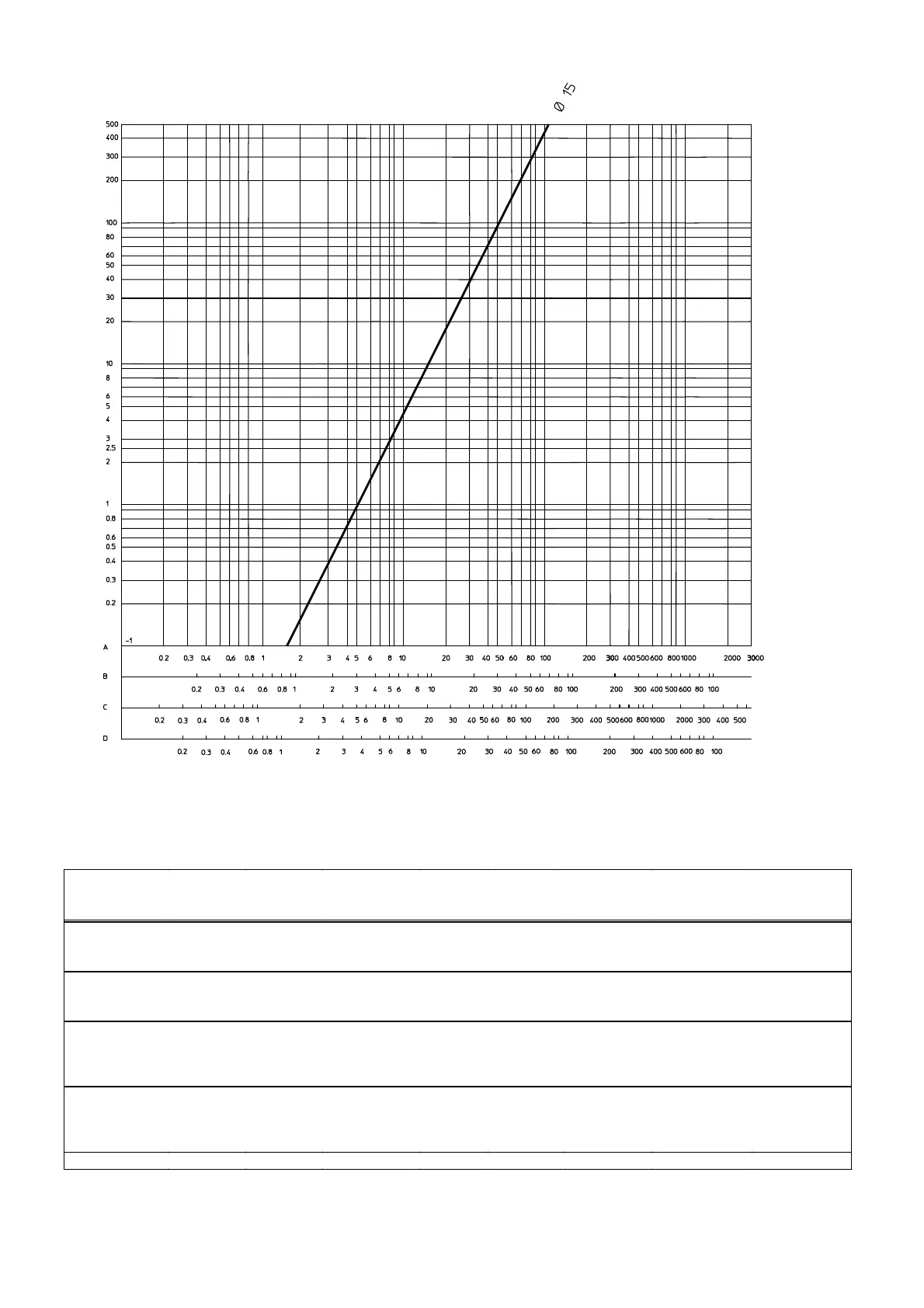

PRESSURE DROP
mbar
FLOW
RATE
m
3
/h
A : Standard flow rate m
3
/h of NATURAL GAS relative density 0.554
B : Standard flow rate m
3
/h of LPG relative density 1.54
C : Standard flow rate m
3
/h of TOWN GAS relative density 0.411
D : Standard flow rate m
3
/h of AIR relative density 1
SUMMARY TABLE
Type
Operating
pressure
(mbar)
Orifice
diameter
(mm)
Connections
Weight
(g)
Coil
Consumption
(VA)
230Vac
Consumption
(VA)
110Vac
Flow
(m³/h gas with
∆P2.5mbar)
EG12*A
EG12*A
EG12*A
0 ÷ 500
0 ÷ 500
0 ÷ 500
15
15
15
G1/2"
G1/2"
G1/2"
734
764
766
BE6*A3C
BE6*AFP
BE6*AFD
20
20
20
18
18
18
7,5
7,5
7,5
EG12*AR
EG12*AR
EG12*AR
0 ÷ 500
0 ÷ 500
0 ÷ 500
15
15
15
G1/2"
G1/2"
G1/2"
752
782
784
BE6*A3C
BE6*AFP
BE6*AFD
20
20
20
18
18
18
7,5
7,5
7,5
EG12*S
EG12*S
EG12*S
EG12*S
0 ÷ 500
0 ÷ 500
0 ÷ 500
0 ÷ 500
15
15
15
15
G1/2"
G1/2"
G1/2"
G1/2""
780
810
812
832
BE6*C3C
BE6*CFP
BE6*CFD
BE6*G..
20
20
20
20
18
18
18
18
7,5
7,5
7,5
7,5
EG12*SR
EG12*SR
EG12*SR
EG12*SR
0 ÷ 500
0 ÷ 500
0 ÷ 500
0 ÷ 500
15
15
15
15
G1/2"
G1/2"
G1/2"
G1/2"
800
830
832
851
BE6*C3C
BE6*CFP
BE6*CFD
BE6*G..
20
20
20
20
18
18
18
18
7,5
7,5
7,5
7,5
EG12*L 0 ÷ 250 15 G1/2" 935 BE6*G.. 20 18 7,5
